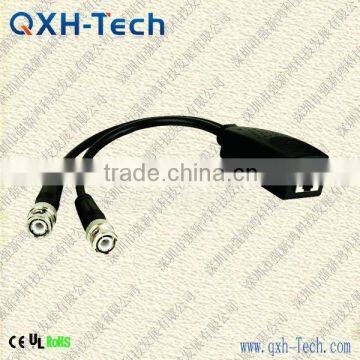

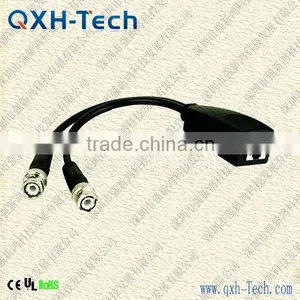

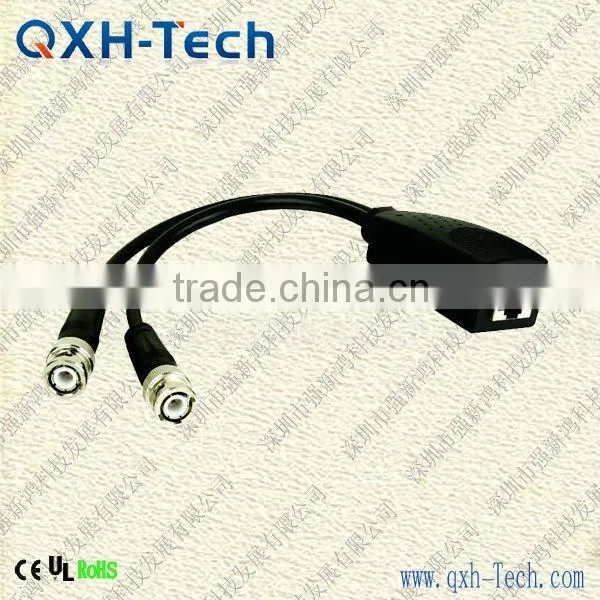

Video Balun 2BNC to RJ45 Cable Converter Cable

Specifications

1.Video Balun 2BNC to RJ45 Cable Converter Cable
2.Gender:Male to Female
3.Inspection: tested before delivery
4,UL,CE&RoH

Product name:



Video Balun 2BNC to RJ45 Cable Converter Cable





Specifications:



Specification
Properties	Transmission signal	Single channel
	Transmission distance	300m(output voltage 36V)
Video transmission properties and port	Coaxial video interface	BNC-M
	Twisted pair transmission interface	RJ45-Female
	Formats compatible	PAL,NTSC,SECAM
	Signal bandwidth	0-6MHz
	Anti-interference	>60db
Electromagnetic environment compatibility	Interface Protection	2KV 10/700us Per:IEC61000-4-5
	ESD	1a contact discharge electricity level 3 1b air discharge electricity level 3 Per:IEC61000-4-2
Environmental	Operating Temperature	0-50°C
	Storage Temperature	-20-70°C
	Humidity(non-condensing)	0-95%
Physical Properties	Size(L*W*H)	65mm*36mm*22mm(without extend cable and interface) Extend cable and interface length:14cm
	Shell	ABS
	Color	Black
	N.W.	42g
Reliability	MTBF	>20000H







Description:

Test UTP, STP, BNC COAXIAL, RG45, RJ11 modular cables, 10Base-T, 10Base-2 Ethernet cable, 258A, TIA-568A/568B and token ring cable, etc.

The LAN test is the simplest and most affordable wire-mapping device for networking cables available on the market. Use it to read the actual wiring configuration for Cat5; coaxial and modular telephone cables by comparing one transmitting end to another receiving end. Cabling faults such as open wires, shorts, miss-wiring and crossed pairs are crystal clear with the LAN test’s unique LED display. Perform all the above tests on installed cables with the included remote terminator.

Features

1, Can test the correct pin configuration of 10Base-T 10Basc-2 Thin Ethernet cable, RJ45/RJ11 modular cables 356A, TIA-568A/568B and Token Ring cable, etc.
2, Easy to verify cable continuity, open, short and miss-wire
3, With remote kit, it can remotely test cable up to 1000 ft away either on wall plate or patch panel
4, Can test the grounding
5, Features with auto or manual scan for pin-out indicators
6, A power switch is provided for saving battery power





Merit:

Long-distance transmission and high-quality image: with advanced process technology, video baluns compensates the attenuation of video signal in different frequency, enhancing image definition into output equipment like DVR and monitors.

Cost efficiency: utilizing UTP-5 to replace 75ohm coaxial cable reduces project cost.

Interference rejection capability: video signal can be transmitted well when there exist other signals such as telephone signal, audio signal and digital signal.

Safety: anti-surge and anti-thunder protection functions make cameras and other equipment in safe use.



Packaging Detail:

normal package: PE BAG,125pcs in a carton.

1.plastic package can be designed.

2.inner packing : PE bag/blister or as customers' requirement

3.outside packing :46*30*23cm

Blister packing:

A: Bubble blister is your first choice to make your prodcts attractive

B: Premium Slide Blister is competitive in price but catch customer's eyes

C: Giftbox packing to make your products more environmental

D: Polybag with card header and barcode number is low cost but good looking



Shipping and delivery details:
1)if quantity is not very big ,Most of the items will be sent within 1-3 days after payment is confirmed. It usually takes around 3-5 workings to air ship to your countries by express ,such as DHL,EMS,TNT,UPS OR FEDEX . (Please kindly get that we are not responsible for any accidence, delays ,and other issures caused by shipping company .)
2) Items will be 100% checked by our Electrical testing & professional inspector before shipping
Electrical Testing:
2.1 100% open and short test;
2.2  Voltage: DC300V 5M ohm/10ms;
2.3  Insulation Resistance: 10MO min;
2.4  Contact Resistance: 2ohm max
2.5  Working Temperature:-25°C--80°C



After-sales service:

1).Our slogan is "keeping in touch with our customers with parts of quality and benefiting our customers with best service.

2).Our promise, so long as product quality has question, upon test and find out if they are our fault, we can exchange or resupply to you for free with my company connection.
