BT-2400B PETG Sheet Hot Bending Machine

Specifications

>PETG sheet hot bending machine
>Bend 0-2400mm
>V-shape angle adjustable 0-180 degree
>CE, ISO
>Manufacturer

Name:

BT-2400B PETG Sheet Hot Bending Machine

Application:

It is applied to bend acrylic sheet, organic sheet, resin sheet, PVC and hard plastic etc. It is a necessary machine for advertisement industry, especially useful for mass production.

1. The bending machine helps you to easily and quickly produce different V-shape profile.

2. The bending machine allows to universally adjust internal sizes of the V-Shaped profiles .

3. That allows to avoid time-consuming and cost-intensive adjustment of the bending machine.

4. It can be used to bend components of ACRYLIC, PVC, PMMA, PC, ORGANIC GLASS, RESIN etc.

5. We pay attention to details parts of the machines, therefore our products quality is steady and perfect.

Technical Feature:

1. Digital operation, easy and convenient.

2. Both automatic and manual working status.

3. According to sheet thickness and material characteristic to set heating time, it will bend automatically when it reaches time set in advance.

4. Bending angle is adjustable from 1-179 degree.

5. Adopt special quartz heating tubes, rapid heating speed and long working life.

6. Working voltage is adjustable so to meet different material characteristic and different thickness sheet, avoid buring or destorying material.

7. Worktable and workpiece are cooled by water. When water temperature is over, it will alarm automatically.

8. With function of electrical leakage protection to make sure safe operation.

Specification Sheet:

Model No.	BT-2400B
V-shape Angle Range	30-180 degree automatically, 0-30 degree   manually
Bending Length	0-2450mm adjustable
Bending Width	unlimited
Bending Thickness	8mm directly, thicker sheet can be bent after milling firstly
Heating Mode	Infrared noncontact heating
Heaters Q’ty	3pcs, can bend radian
Rated Voltage	AC180V-240V
Rated Frequency	50-60Hz
Dimension	300x55x110cm
Weight	260kg

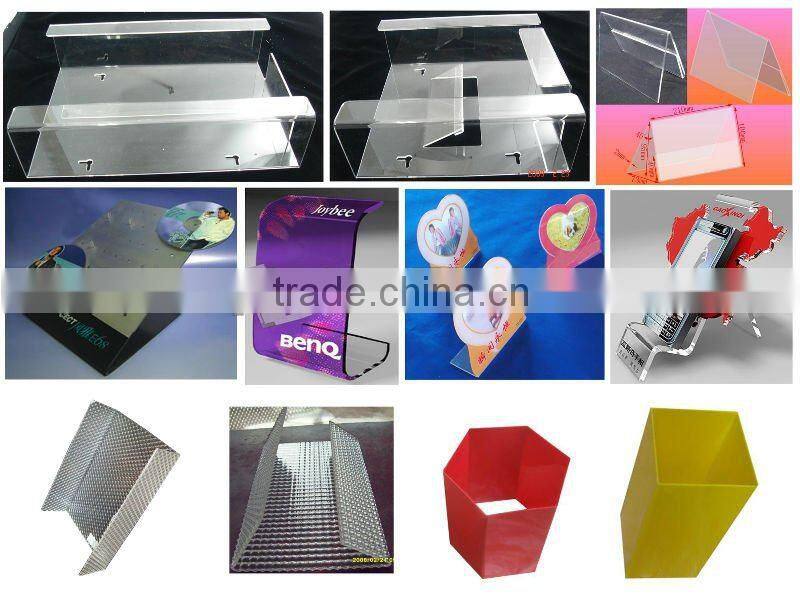

Samples display:



Machine parts:

Why do customers choose us?

1. At the same quality grade, our price is better.

2. At the same price level, our service is better.

How to contact with us?
