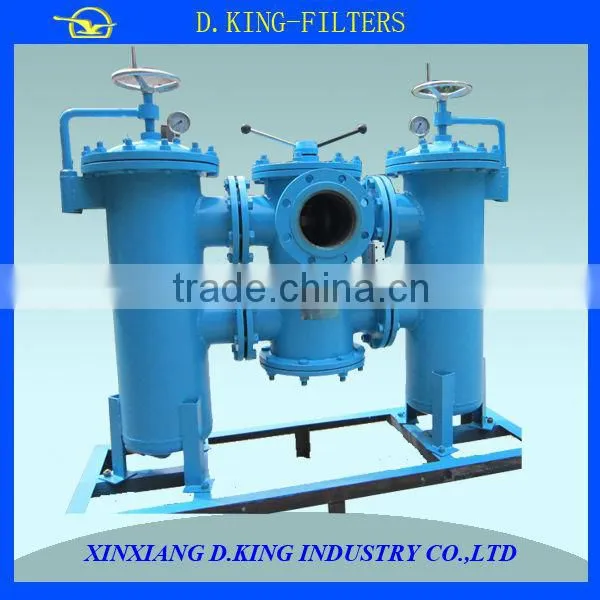

What is the detail of Duplex Filter?

-- The Duplex filter is made up of two sets simplex filter and a switch change valve , simple construction and easy use.

-- It is matting with bypass valve and CMS-I to make sure the safety of system.

-- The duplex filter use switch valve between working filter and spare filter with each other using a switch , and reach to a purpose what is that when the filter cartridge need to change without to stop the working system.

-- So it is mainly used for the system and equipment what needn’t to stop the working system .

-- Filter Element: Basket Filter, Candle Filter, hydac filter, Multimantle element, Filter disc

What is the Working Principle of Duplex Filter?

-- The duplex filter is install in the pipeline of hydraulic system and water treatment.

-- There is only one filter to operation in normally work.

-- You need not stop the system then open the pressure balance valve and roll reversing vales.

-- Switch to another filter to work ,when the filter pressure loss exceed ( more than 0.35 MPa ) and then clean or replace the filter element .

What is the Application of Duplex Filter?

This filter is widely used in metallurgical machinery , mining machinery , heavy-duty machinery etc hydraulic system.

-- Applicable industries: Fine chemicals, water treatment systems, plup and paper, automobile manufacturing, petro-chemical, machining, coatings, electronics etc.

-- Applicable liquids: Wide applicability, all liquids contained micro-impurities

-- Filtration type: One-time intercept filtering, the filter bag need to be replaced manually regularly

-- Filtration function: Remove all sizes of particles, purify liquids, protection of critical equipment

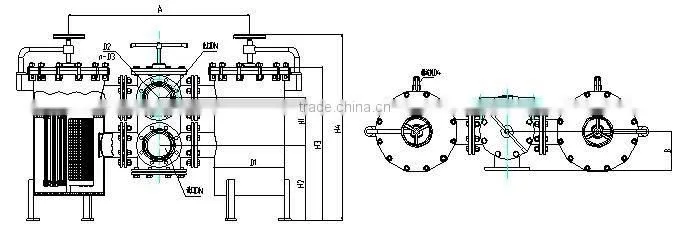

What is the struction of Air Filter?

What is the technical data of Air Filter?

What is the Part List of Air Filter?

What is the Operating steps of Air Filter?

1. Install the duplex filter to the working system .

2. Filter installation is completed , open the inlet and outlet valve of the filter , the system start to working .

3. When the CMS-I is alarm (differential pressure is achieved 0.35MPa), pls change the switch valve and let the spare filter to work.

4. Open the vent valve(on the upper cap) and blowdown valve (on the bottom cap), let the dust fluid drain off the filter completely.

5. Open the upper cap of filter , take our the filter element .

6. Clean or change the filter element , then install the filter element and upper cap .

7. Closed the vent valve and blow down valve and let this filter to be a spare filter to wait once again the replacement .

What is the Operating steps of Air Filter?

It must know the upper is inlet and below is outlet when installed .

1. It must to change filter cartridge in time when the CMS-I is alarm , and let the filter is in standby state .

2. Switch valve must be in place .

3. It need to ready the new filter cartridge when to change it , do the best to reduce the time of filter internal reveal.

4. Pay attention to the seals are ok or not when change the cartridge . Don’t omit the seals when installed.

5. Don’t let anything fall into the filter after open the cover .
