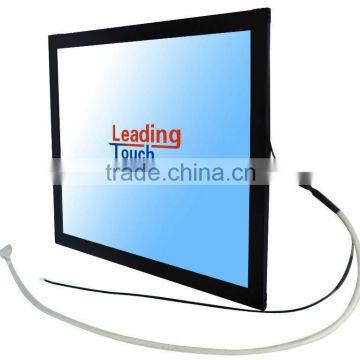

Leadingtouch 12" 16:10 Dust Proof Surface Acoustic Wave (SAW) Touch Panel SA1211D30-G4

SA1211D30-G4 12” 16:10 Widescreen Dustproof SAW Touch Panel

Frame Dimensions

208.2 x 262(mm)

Active Dimension

165.2 x 262(mm)

Fit in with

12” 16:10 Widescreen TFT LCD Panel display device

Mechanical

Construction

Sensors are sealed inside Aluminum Alloy metal frame

Input Method

Finger or gloved hand (rubber ,cloth or leather)

Active Force

Stylus or Finger or Similar <85g

Surface Hardness

Surface durability is that of glass, Mohs' hardness rating of 7

Durability

>70 million touches

Positional Accuracy

<1%

Touchpoint Density

>100,000 touchpoints/inch² (15,500 touchpoints/cm²)

Optical

Light Transmission

>=90%

Visual Resolution

Clear surface: Excellent, with no noticeable degradation

Antiglare surface: 6:1 minimum

Gloss

Antiglare surface (curved or flat): 95  ±  15 gloss units or 65  ±  15 gloss units

Environmental

Temperature

Operating Range: -20°C ~ 70°C;

Storage Range: -40°C ~ 85°C

Relative Humidity

Operating Range: 5%~90% RH (no dew falls)

Storage Range: 5% to 95% RH (no dew falls)

Dustproof

Sealed to prevents dust and dirt

Altitude

Up to 5,000m

Fire Retardation

Meets the requirements of UL 94HB

Electrical

Supply voltage

DC5V

Power Supply

USB or PS/2 Interface, power ripple max.200mV rms

Interface

Full Duplex USB 2.0 (Full Speed) Plug and play compatible

Serial RS-232. Baud Rate: 9600, 8 Data Bits, 1 Stop Bit, No Parity

Electrostatic Protection

15 kV air / 8 kV contact discharges (EN61000-4-2,1995 :Level 4)

Resolution

Based on controller resolution of 4096 x 4096

Agency Approvals

CE, FCC, Rohs

Operating System

Operation System Linux/ Dos / Windows ME/95/98 / NT4.0/XP/2000/Mac OS
