New coming high grade laser cutting machine 9013

FOB Price

USD $1,500 - $8,500 / Set

1 Set(Min.Order)

Supply Ability 1500 Set / Sets per Month
Port Shanghai
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Condition:	New	Laser Type:	CO2	Applicable Material:	Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Wood
Cutting Thickness:	Depends on the material	Cutting Area:	1300x900mm	Cutting Speed:	0-10000mm/s
CNC or Not:	Yes	Cooling Mode:	Water Cooling	Control Software:	Ruida
Graphic Format Supported:	AI, BMP, DST, DWG, DXF, DXP, LAS, PLT	Place of Origin:	Shanghai, China	Brand Name:	K&N
Model Number:	ZL1390	Certification:	CE, ISO, SGS, Other, CE, ISO, SGS, FDA	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

New coming high grade laser cutting machine 9013

Product parameters of laser cutting machine 9013

Model	ZL6040	ZL9060	ZL1390	ZL1610	ZL1325
Working Area	600*400mm	900*600mm	1300*900mm	1600*1000mm	1300*2500mm
Laser Power	50w/60w/80w/100w/130w/150w/180w
Laser Type	Hermetic and Detached Co2 Laser tube
Engraving Speed	0-60000mm/s
Cutting Speed	0-10000mm/s
Repeat Location Accuracy	+/-0.0125mm
Min. shaping Character	Character: 22mm, Letter: 11mm
Driving Mode	Stepper motor
Position System	Red dot
Interface	USB
Voltage	AC220V/50HZ or 110V/60HZ or depend on customer
Controlling System	CNC Prpfession Control System
Support Graphics Mode	BMP,HPGL,JPEG,GIF,TIFF,PCX,TAG,DST,PLT,DXF,etc.
Cooling Mode	Circulation Water Cooling and Protection Pipe
Cutting Platform	Professional Thickening Strip or Honeycomb Work Table
Power Control Mode	Laser Energy Combining Movement Control System
Operating Temperature	0-45°C
Operating Humidity	5-95%
Certification	CE,FDA,SGS
Machine Size ( mm )	12008501070	136010301070	176013301070	222015801110	200035001100
Net Weight	180kg	240kg	360kg	420kg	900kg
Packing	Standard wooden box
Guarantee Time	3 Years

Optional Item	Description	Applied Model
Motorized Up and Down System	Including Motorized Up and Down Table with Auto Focus.	ZL-6040/9060/1390/1610
Rotary Fixture for Rotary Engraving	Rotary Engraving along the circle of cylindrical or column work pieces, usually applied in Advertisement and Craftwork. Need work together with Motorized Up and Down System.	ZL-6040/9060/1390/1610
Vacuum Absorbing System	Specially design for garment and fabric industry, good for absorbing above uneven cloth / fabric / garment / leather, keep the thin material as planar/ even / flat surface always. Need with honeycomb work table.	ZL-6040/9060/1390/1610/1325
Automatic Feeding and Rolling System	Suitable for engraving/cutting on very long work piece, such as one roller of cloth /fabric /leather /garment, the machine can be fixed with a selective rolling & automatic feeding system, which make the whole cloth processing steps finish one time.	ZL-6040/9060/1390/1610/1325
Reci Laser Tube	Lifetime: 10000hours Warranty Period: 10 months Power: 90W/ 100W/ 130W /150W Peak Power: 100W/ 130W/ 160W / 180W	ZL-6040/9060/1390/1610/1325
CCD Camera	Compensate automatically to pinpoint deformation of the fabric, it ensures the accuracy of cutting, shorten cutting path of human-based software design, saves time and increases efficiency for user.	ZL-1610
Japan Import Servo Motor	Panasonic Brand, Fractionize drive, Low liberation, High speed &Small noise.	Applied in all Models
Imported Ball Screw	With high speed and accuracy, it is smoothly for laser head to move speedily and laser beam to reflect with high accuracy.	ZL-1325

Applied materials

(1) Applicable materials: Non-metal materials such as acryl, wood planks, organic glass, plastic, light planks, bamboo ware, double color sheets, cloth, paper, leather, shells, ox horns, resin, animal grease, ABS boards, lamp shade, etc.

(2) Applicable Industries: For advertising, wood-working, plastic products, handicrafts, leather processing, paper cutting, etc.

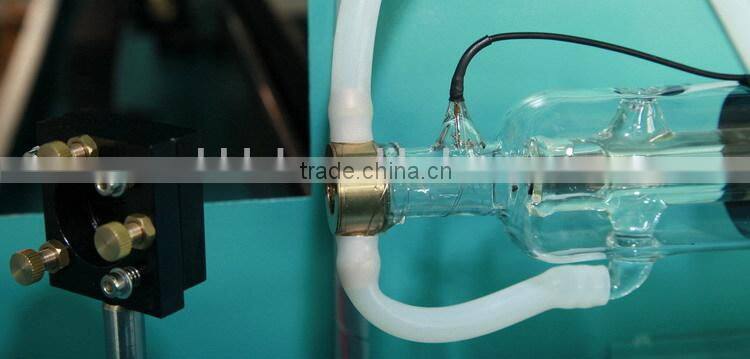

Product pictures of laser cutting machine 9013
