Home > Products > Refractory Brick > Refractory Brick for Blast Furnace

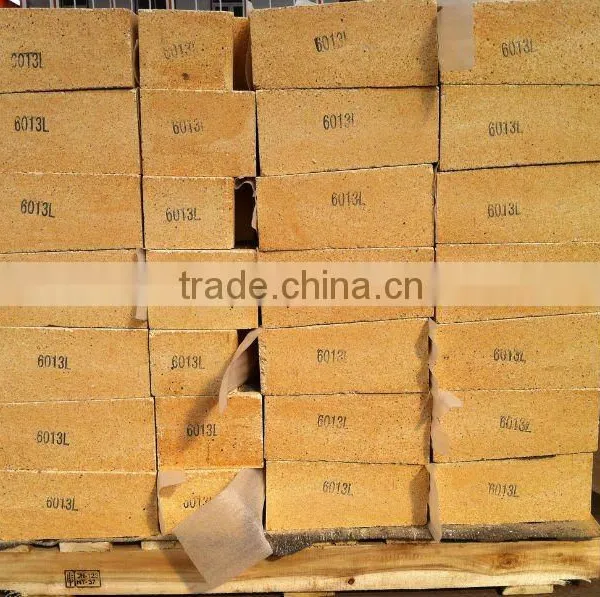

Refractory Brick for Blast Furnace
- 1500 Ton / Tons per Month
- Qingdao Port China
- T/T Credit Card
Product Details
| Place of Origin: | Shandong, China | Shape: | Brick | Material: | Other, Clay |
| SiO2 Content (%): | 2% | Al2O3 Content (%): | 30-50% | ||
| Brand Name: | TaShan |
Product Description
Specifications
ManufactureOur products have been exported to
North America,India,Mid-East,Korea
Clay bricks are dense shaped refractory material. with high refractoriness and mechanical behavior under high temperature, refractory bricks is the necessary material of high-temperature services, mainly used for industrial furnaces and kinls and several thermal equipments.
General Information:
Fireclay bricks are made from clinker clay by mixing, forming, drying, sintering and machining. The Al2O3 content ranges from 36% to 42%.
Fireclay bricks feature stable mechanical strength and good thermal shock resistance, withstanding high temperature up to 1750.
They are commonly applied as refractory lining directly exposed to heat or backup insulation layer in all kinds of industrial kiln or laboratory furnace.
Characteristic,
Low thermal conductivity
High refractoriness
High mechanical strength
Excellent thermal shock resistance
Non standard sizes and shapes are available upon request
Application:
Petrochemical process heater
Heat treatment furnace
Ceramic firing kiln
Cement rotary kiln
Glass melting tank
Backup insulation
Tech Data
item SK-32 SK-34 SK-36 SK-37 SK-38 AI2O3(%) 38 42 50 65 70 Fe2O3 (%) 3 2.5 2.5 2.4 2 Refractoriness (SK) 32 34 36 37 38 Refractoriness under load, 0.2MPa, Ta, ((°C) 1300 1350 1450 1550 1580 Porosity (%) 26 25 24 23 23 Bulk density (g/cm³) 2.05 2.1-2.15 2.3-2.4 2.4 2.5 Cold crushing strength (MPa) 25 25 45 45 51 Thermal expansion at 1000°C (%) 0.6 0.6 0.3 0.5-0.7 0.6
