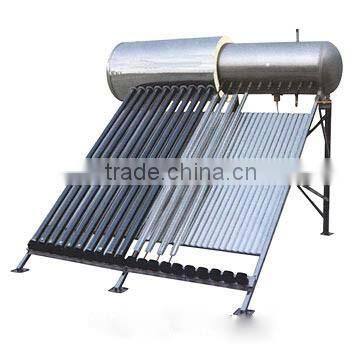

Heat Pipe Solar Energy Heater(WSJ)

FOB Price

USD $100 - $200 / Set

1 Set(Min.Order)

Supply Ability 100000 Set / Sets per Month
Port shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Evacuated Tube	Pressure	Pressurized
Circulation Type	Indirect / Closed Loop (Active)	Heating System	Thermosyphon (Passive)
Connection Type	Direct-Plug	Installation	Freestanding
Housing Material	Stainless Steel	Certification	CE
Place of Origin	Jiangsu, China	Brand Name	wksolar or OEM
Model Number	WSJ-CF

Product Description

Heat Pipe Solar Energy Wter Heater(WSJ)

Work with high pressure. Therefore The warm water comes out with pressure too,it uses the heat pipe to delievery heat energy; water is heated rapidly. No water in the vacuum tubes, and it can be used in all climates ,each tube can work alone, so it can work even if one tube is broken. Could supply water self-acting without any other installation and could able to be pressured

Material:

Inner tank:	SUS304 2B (food grade) with 1.2mm thickness. All machine welding.
Outer tank:	SUS304 2B -0.4mm /Painted steel -0.4mm
Frame:	Stainless steel -1.2mm / Aluminum alloy - 2.0mm/ Painted steel-1.5mm
Reflector:	Aluminum
Heat pipe vacuum tube:	QB-AL-SS/CU-47/1500/58/1800
Insulation:	Polyurethane foam is 55-60mm.

Feature:

High pressure storage tank(Testing pressure=9 bar)
No vent and less heat loss as compared to low pressure model
Highly efficient heat pipe technology
No water introduced into vacuum tube
No sealing rubber is needed and hence no leaking problem
Easy plug-in installation
Anti-freeze

Model:

MODEL	Absorb area(m2)	Vacuum tube			Cubage (L)	Qty.per20'/40' Container
MODEL	Absorb area(m2)	Diameter	Length	No.	Cubage (L)	Qty.per20'/40' Container
WSJ-CF-470-47/1500-A18	0.9	φ47mm	1500mm	18	140	44	88
WSJ-CF-470-47/1500-A20	1.0	φ47mm	1500mm	20	150	42	84
WSJ-CF-470-47/1500-A24	1.2	φ47mm	1500mm	24	180	33	68
WSJ-CF-470-47/1500-A30	1.5	φ47mm	1500mm	30	230	30	62

WSJ-CF-470-58/1800-A18	1.44	φ58mm	1800mm	18	150	39	81
WSJ-CF-470-58/1800-A20	1.6	φ58mm	1800mm	20	165	35	73
WSJ-CF-470-58/1800-A24	1.92	φ58mm	1800mm	24	200	30	62
WSJ-CF-470-58/1800-A30	2.4	φ58mm	1800mm	30	250	24	50
