Home > Products > Word Stock Display > 12832-ZB COB LCD manufacturing plant,
12832-ZB COB LCD manufacturing plant,
Negotiable
/ Piece
1 Piece(Min.Order)
- 0 per Month
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Within 12832ZF LCM LCD manufacturing plant, belt is adjustable
-
128*32 Embedded fonts directory
-
128 * 64 LCD module production technology
-
12864-ZB Character dot matrix LCD screen
-
12864-ZC Word stock directory, with adjustable, serial/parallel interface way can be chosen
-
12864-ZD Word stock directory, can provide 3.3 v voltage, color optional LCD screens
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | Ya Bin Electronics Co. Ltd. | Model Number: | YB12832ZB |
| Type: | Character |
Product Description
YB12832-Z
A, product characteristics
Model: YB12832ZB
Dot matrix128*32
Size:84*44*14.2
Optic zone size:70*20
Controller: ST7920
Working voltage: 5.0V/3.3V
Product specifications: STN
Product categories: graphic dot matrix
Product color: blue film, green film, film can be optionally ash (ash white screen plus one yuan)

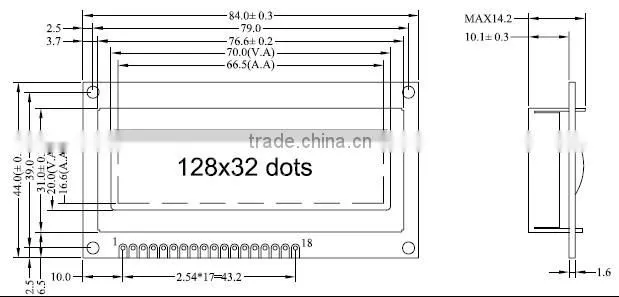

Two, the map dimensions
Three, interface definition

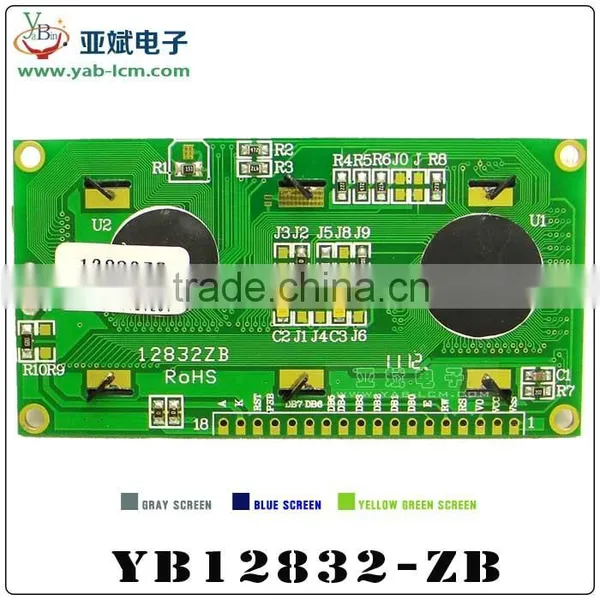

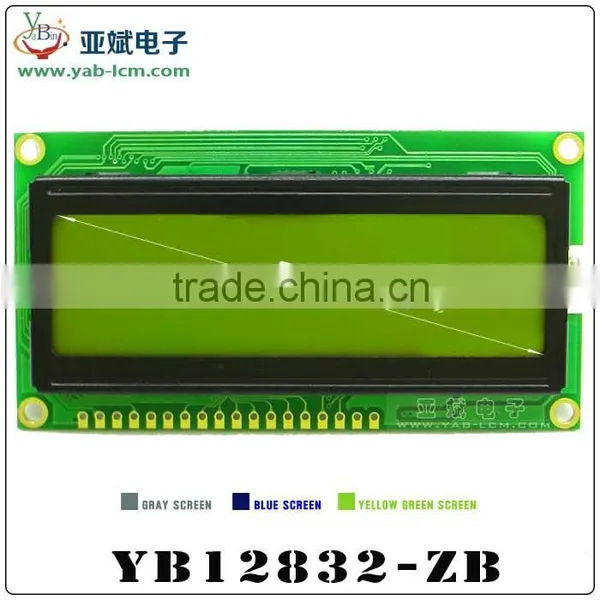

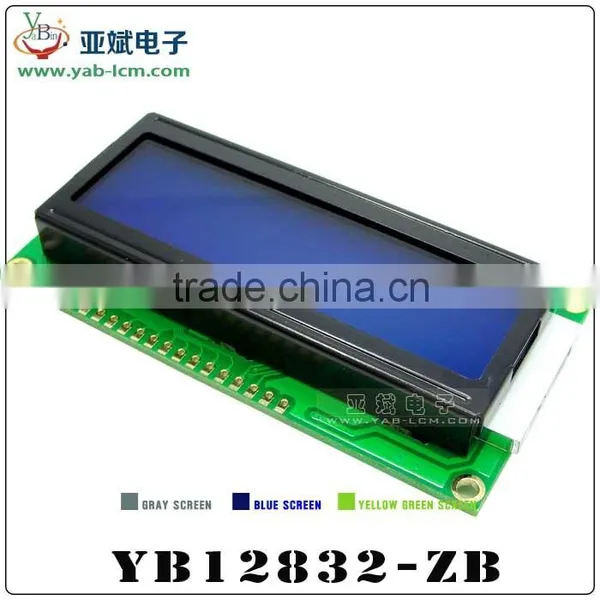

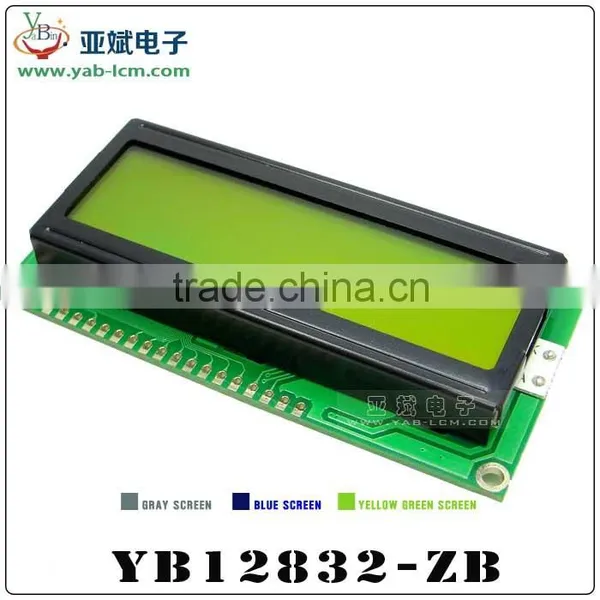

Four, picture display
