Fully Automatic Biochemistry Analyzer Laboratory Equipment Clinical Blood Chemistry Analyzer

Fully Automatic Biochemistry Analyzer Laboratory Equipment Clinical Blood Chemistry Analyzer

Model: MCC-3000

Working Conditions of the Biochemistry Analyzer:

Weight : 90KG

Humidity : 35-80%

Water consumption : 7L/Hour

Ambient Temperature: 15-30 °C

Bench top: 750mm*520mm*600mm

Power supply : AC 220V±22V, 50Hz±1Hz, power 1.5KVA

Overall Performance of the Chemistry Analyzer:

Test principle: Colorimetry, turbidimetry

Analysis rate : Constant speed 300T/H(without ISE)

Equipment type : Fully automatic discrete, STAT priority

Analysis method: End-point, 2 kinetics, fixed-time, etc. support single/double wavelength,

                            linear and non-linear calibration

Sample System of the Blood Chemistry Analyzer :

Sample Tray                  60 sample positions, random access of all samples

Sample probe                Liquid level detection, the remaining detection, collision protection etc.

Sample Volume             2-50ul, 0.1ul increment

Sample Containers        Sample cups, Micro tube, Original blood-collection tube, etc.

Reagent System of Fully Automatic Biochemistry Analyzer:

Reagent Tray                   45 reagent positions

Reagent Probe                 Liquid level detection, the remaining detection, collision protection etc.

Reagent Volume              R1:25-300ul, R2:10-150ul, 0.1ul increment

Reagent Refrigeration      4-15°C, independent power supply, 24-hour non-stop refrigeration

Reaction System of the Laboratory Equipment Biochemistry Analyzer :

Cuvette                         Reusable high quality cuvette, Optical diameter 6mm

Temperature                37°C±0.1°C with real-time display

Reaction Tray               Rotating tray, 120 cuvettes

Reaction Volume         180-500ul

Incubation system        Bi-directional liquid-air device

Operating System of the Clinical Chemistry Analyzer :

Report printing                      Report formats support the user-defined mode, QC and state information etc

System connection                RS-232

PC operating system             Windows XP or above.

Analysis control software       English version graphical operating software

Optical System of the Automatic Biochemistry Analyzer :

Resolution                   0.0001Abs

Wavelength                 340,405,450,510,546,578,630,700nm

Light source                12V35W halogen lamps, over 2000 hours

Absorbance range       0-3.500Abs

Photoelectron road      after spectrophotometry

Some Parts of This Automatic Chemistry Analyzer:

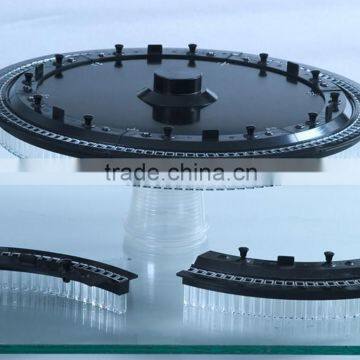

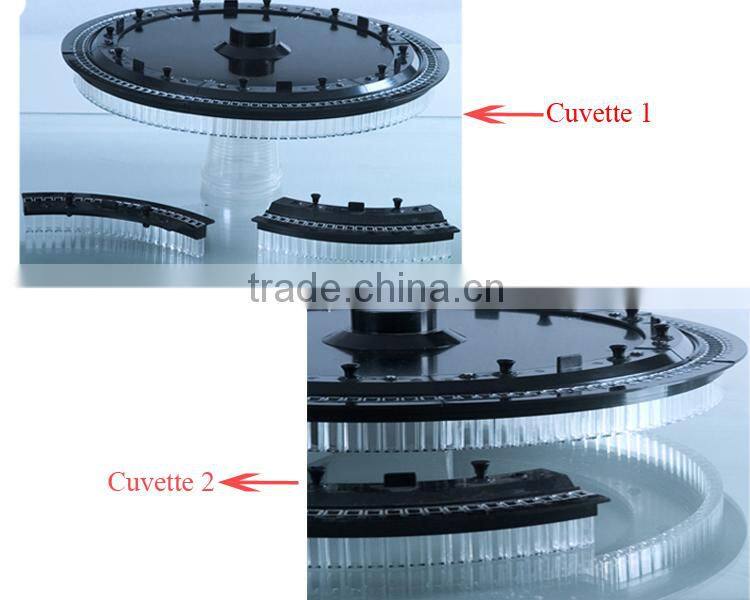

1. Cuvette

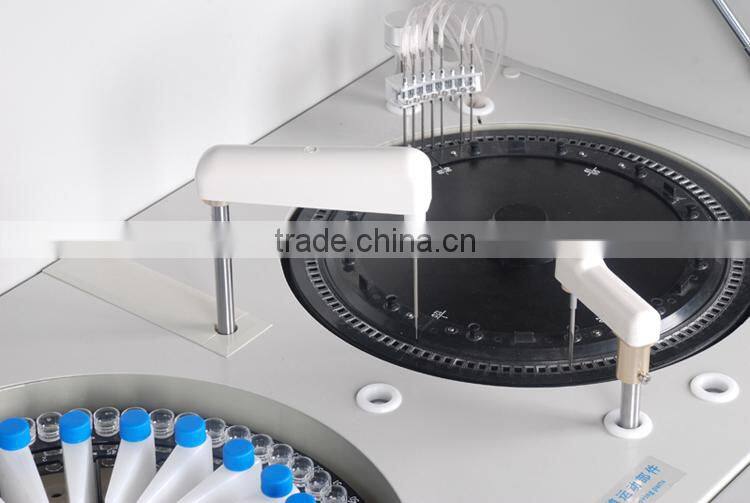

 2. Needle

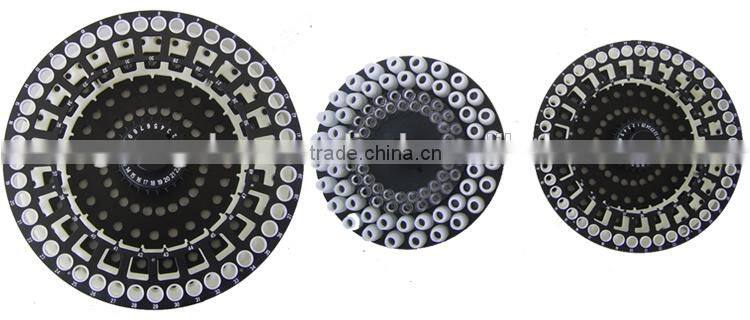

 3.  Reagent Tray

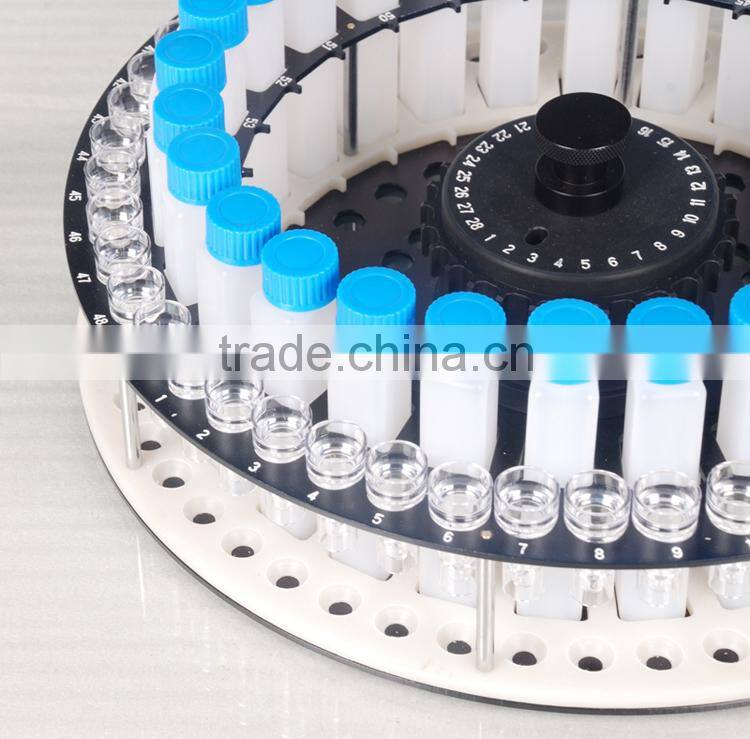

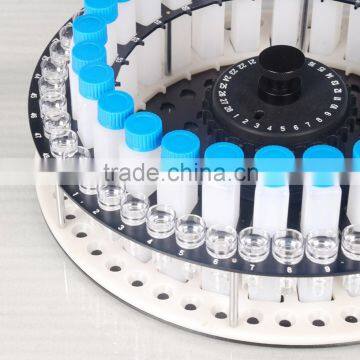

4.  Sample & Reagent Tray

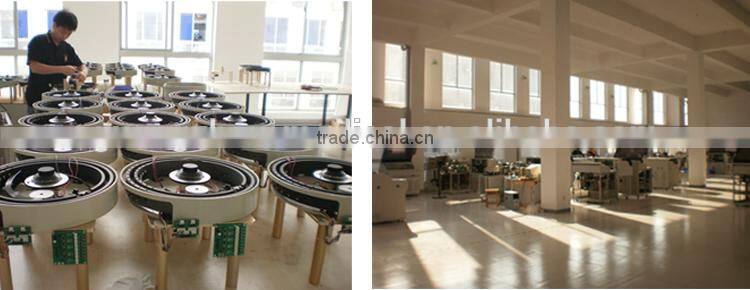

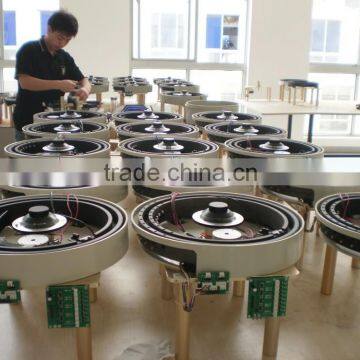

5. Manufacturing Plant
