integrated Pressure Flat-Plate Hot Water Heater

Specifications

Flat Panel Solar Water Heater
1.OEM offered
2.Intelligent operation
3.High efficiency & pressure
4.Anti-freezing -36degree





integrated  Pressure Flat-Plate Hot Water Heater ,



Technical Parameters:



Flat  Plate   Solar Collector	Spec. (mm)	2000*1060*70    2000*1060*80    2000*1060*90
	Cover Glass	Tempered/ Texture tempered / Texture tempered low-iron glass
	Coating	Anodic oxide/ Selective coating / Black Chrome/ Blue Tinox
	Core	Copper & aluminum / All red copper core & pipes
	Insulation	High-density glass wool and polyurethane foam
Pressurized    Water tank	Capacity	100L/ 120L/ 150L/ 200L/ 250L/ 300L/ 400L/ 500L
	Inner tank	Food-grade stainless steel SUS304-2B
	Insulation	High-density polyurethane integrated foam-forming layer
	Tank shell	High-quality color steel plate / Stainless steel/ PVDF
Bracket	Spec.(mm)	1.2 ~ 2.0mm in thickness
	Material	Hot-dip galvanized steel / Stainless steel / Aluminium alloy
Optional device	Intelligent controller, Thermostat electrical heater, Anode magnesium, T&P relief valve
Pressure	6.0 bar
Tilt angle	25°~ 50°
Water output	45~95oC



Features description:

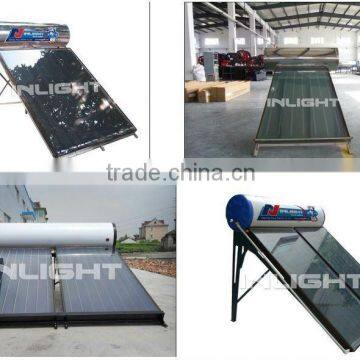

INLIGHT pressurized flat plate solar water heater composes of pressurized flat plate solar collector, pressurized storage tank, supporting bracket and interconnecting pipeline and valves.

Flat Plate Solar Collector:

1) Copper core absorber and pipes in flat plate as heat exchanger, with a quick startup and super efficiency.

2) Four high-tech methods of coating (Anode oxide/ Selective coating / Black chrome / Titanium-Nitride-Oxide) to meet your different requirements

3) Ultrasonic technology ensures seamless jointing of copper core and pipes

4) Modularized collector, arbitrary combination with architectural structure, adaptable to either slope or flat roof, little maintenance needed

Pressurized Water Tank

1) Inner water tank: Food-grade stainless steel SUS304-2B as inner tank keeps the water clean and drinkable, automatic argon-arc welding technics ensures long lifespan (more than 30 years) with good pressure bearing.

2) Water tank shell: Color steel plate much durable and appealing. Stainless steel shell makes it a choice for higher requirements.

3) Insulation Layer: Germany-imported polyurethane integrated foam-forming with twice slaking treatment, preserves hot water constantly

4) Pressurized water tank with super hydraulic bearing pressure makes your life more comfortable

5) Copper coil could be installed inside water tank for twice hear exchange efficiently, one more copper coil installed could be connected with radiator or other devices for house heating or connected with other heating devices such as gas to assist solar water heating.

Supporting bracket:

INLIGHT supporting bracket are specially designed for flat plate solar water heater which can be adaptable to different roof structures. It is make of strong hot-dip galvanized steel plate with a super weight bearing and wind resistance design (140 km/hr), painting or baking process ensures a super mechanical performance and corrosion resistance

Accessories:

1)  Electrical heater, as an auxiliary heating element in case of raining or snowing so as to supply hot water continuously

2)  Magnesium rods, soften hard water so as to protect system from water scale effectively

3) Intelligent controller, automatically controls water refill and startup of auxiliary heating device, more intelligent system operation

4) T/P relief valve: Also called safty valve for protection of storage tank from excess water pressure



Warranty: 3 years international responsibility for integrated system and 10 years for flat plate due to original quality problems
