Home > Products > Japan conceal hinge > hinges metal wood door hinge 3d concealed hinge 180 hidden

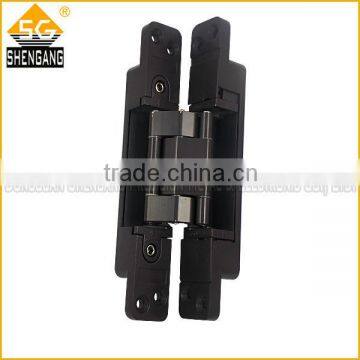

hinges metal wood door hinge 3d concealed hinge 180 hidden
- 10000 Piece / Pieces per Month
- Shenzhen Yantian port
- T/T Credit Card
You May Like
-
adjustable concealed heavy duty wooden gate hinges
-
sugatsune hinges adjustable hinges furniture hardware
-
sugatsune adjustable hinges furniture hardware
-
heavy duty concealed door hinges concealed cabinet hinges
-
adjustable concealed hinges exterior door hinges
-
types of interior door hinges swing door hinges
Product Details
Place of Origin | Guangdong, China | Brand Name | SG | |
Model Number | SG-HC105 |
Product Description
hinges metal wood door hinge 3d concealed hinge 180 hidden
1. The Description of hinges metal wood door hinge 3d concealed hinge 180 hidden
Name | hinges metal wood door hinge 3d concealed hinge 180 hidden |
type | door and window Japan-type concealed hinge |
model number | SG-HC105 |
size | 190X30X32X27mm |
Intermediate gap | 15mm |
opening angle | 180 degree |
min. door thickness | 36mm |
max. door weight | 80kg/2 pcs |
Net Weight | 0.93kg/pc |
Movable | 3-way continuous adjustment |
left and right | 3mm |
up and down | 3mm |
front and back | 1mm |
material | zinc alloy, |
connector | aluminum alloy |
screws | stainless steel 304 |
resistant discs | nylon Pa66 |
cover | ABS |
coating | satin nickel, satin chrome, pearl nickel, pearl chrome, gold plated, antique bronze and antique copper or as your requirement |
2. The sample show of hinges metal wood door hinge 3d concealed hinge 180 hidden
Why choose us
hinges metal wood door hinge 3d concealed hinge 180 hidden |
perfect invisibility can make the entire environment more harmonious |
well-functional and superior after-sale service |
adjustable in three directions and provident for the users in the after-sale installation |
Easily install and simply adjust only with an inner hexagon spanner if the door had some changes as the time passed by. |
Have the characters of anti-fire, anti-smoke, rustproof, damp-proof, anti-friction and environmental protecting features. |
This product has applied for the national patent. |
This product has TUV test. |
durable and elegant |
fashionable and simple appearance. |
3. The hinge installed of hinges metal wood door hinge 3d concealed hinge 180 hidden
Usage and Installation
- hinges metal wood door hinge 3d concealed hinge 180 hidden
- Suitable for solid wood door, steel wood door, wood door, security door, steel door, armored door,
- decorative craft door, fire door, composite door, aluminum alloy.door, wood plastic door, cabinet door,
- metal door, bronze series craft door, glass Mosaic, outside door, interior door, wooden door, aluminum alloy
- door, plastic door,aluminum wood doors, stainless steel door, flat open door, ecological door, interior door,
- explosion-proof door, anti-knock door, fire door, etc
- Tested for over 200,000 cycles ,no abrasion
4. The shipment and payment of hinges metal wood door hinge 3d concealed hinge 180 hidden
Packaging
- Standard packing: White inner boxes,Yellow-brown outer cartons.
- N.W/piece:0.5kg;N.W/box:1kg;G.W./box:1.1kg;N.W./carton:18kg;G.W./carton:20kg.
- 2 piece for a box;18 boxes for a carton.
Shipping Policy:
- For samples or small package, we could ship to you via TNT, DHL, FedEx, UPS, SF express, EMS etc. But since the samples are free, we need your account number of TNT, TNT, DHL, FedEx, UPS, SF express, EMS ETC.
- For the mass production order, you could advise us how to ship to you or we could quote you the freight cost by using our forwarder.
- Any charges including the shipment cost must be paid with the order payment if you want us to ship to you.
Payment Terms
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow
Delivery Terms
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
Test Report for Your Reference
About us
We have engaged in hinges and locks,with advanced production equipment , leading production technologies, high-quality technical engineers , perfect production management system and several distinguished teams( hinges metal wood door hinge 3d concealed hinge 180 hidden )
The brands “shengang” and “NSG” have acquired highly praise around the world and we have OEM for many famous companies such as GMT,blum,Roto etc.
Factory Superiority |
hinges metal wood door hinge 3d concealed hinge 180 hidden |
Our factory specialized in door & window hinges for 13 years |
We can develop new items according to your requirements |
OEM orders are available |
We own their hot-forging, machining, polishing, plating and assembling in our factory |
5 . Factory show
6. Market
7. Contact
1. Could i get some samples for reference before ordering?
Yes, we could send you samples firstly, the samples are free. But the freight cost will be paid by your side.
2. What payment terms you accept?
Normally, T/T, Western Union will be available. But it all depends. We will discuss with you when ordering.
3. What kind of shipment you will choose when products finished?
TNT, UPS, FedEx, DHL, SF express, EMS, by sea, we will ship to you as per what way you like.
Contact Us
- Dongguan Shengang Precision Metal & Electronic Co., Ltd.
- Contact nameShenci hu Chat Now
- Phone86-769-8551 9582
- AddressJunda industrial zone, Cuntou, Humen town, Dongguan, Guangdong
