Home > Products > Prepainted Galvalume Steel Coil > 0.46mm thickness AZ60g Prepainted Galvalume Steel/PPGL Coil for Roofing sheet

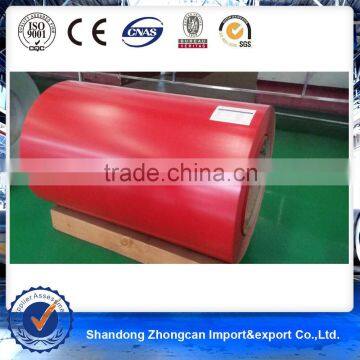

0.46mm thickness AZ60g Prepainted Galvalume Steel/PPGL Coil for Roofing sheet

FOB Price

USD $600 - $1,200 / Ton

25 Tons(Min.Order)

Supply Ability 300000 Ton / Tons per Month
Port QIngdao Tianjin
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Standard	AISI, ASTM, BS, DIN, GB, JIS	Grade	DX51D
Thickness	0.46mm, 0.46mm	Place of Origin	Shandong, China
Brand Name	ZhongCan Steel	Model Number	0.46mm*600-1500mm
Type	Steel Coil	Technique	Cold Rolled
Surface Treatment	Other, Coated/Galvalume	Application	Other, Roofing sheet
Special Use	High-strength Steel Plate	Width	600-1500mm
Length	Custom's Request

Product Description

Specifications of Prepainted Galvalume Steel/PPGL:

Product Name	Prepainted Galvalume Steel/PPGL
Width	600-1500mm available
Thickness	0.12mm-1.2mm
Color	According to RAL available
Coated Material	PE,SMP,HDP,PVDF
Galvalume thickness	20-275g/m^2 available
Top Coated Thickness	15μm -25μm
Back Coated Thickness	5μm -20μm
Coil Inner Diameter	508mm/610mm
Coil Outer Diameter	800mm-1500mm

ADVANTAGE about JIS 0.46mm thickness PE Coated AZ60g Prepainted Galvalume Steel Coil:

1) Excellent corrosion resistance: The zinc layer provides a good protection of Pre-painted Galvanized Steel Sheet.

2) High heat resistance: The reflective surface of the material aids in efficiently reflecting the sunlight away and in turn reducing the amount of heat transmitted. The thermal reflectivity converts into energy savings.

3) Aesthetics: Pre-Painted Galvanized steel sheet is available in plethora of patterns and multiple sizes as per the requirements that given by our customers.

4) Versatility: can be used in the various areas.

APPLICATION for PPGL:

Construction	Outside	Workshop, agricultural warehouse, residential precast unit, corrugated roof, roller shutter door, rainwater drainage pipe, retailer booth
	Inside	Door, door case, light steel roof structure, folding screen, elevator, stairway, vent gutter
Electrical appliance	Refrigerator, washer, switch cabinet, instrument cabinet, air conditioning, micro-wave oven, bread maker
Furniture	Central heating slice, lampshade, chifforobe, desk, bed, locker, bookshelf
Carrying trade	Exterior decoration of auto and train, clapboard, container, isolation lairage, isolation board
Others	Writing panel, garbage can, billboard, timekeeper, typewriter, instrument panel, weight sensor, photographic equipment

AVAILBALE STEEL MATERIAL for Prepainted Galvalume Steel/PPGL:

Quality	Q/BQB 440-2003	JIS G3312-1994	EN 10326-2004	ASTM A653-02a
			EN 10327-2004	(BASE PLATE)
			(BASE PLATE)
Commercial Steel	TDC51D	CGCC	DX51D+Z/AZ	CS Type A/B/C
Forming Steel	(TSt01,TSt02,TSt03)	CGCD1	DX51D+Z/AZ	FS Type A, Type B
Drawing	TDC52D /TDC53D	-	DX52D+Z/AZ	DDS TYPE A/C
Steel	TDC52D /TDC53D	-	DX53D+Z/AZ	DDS TYPE A/C
Structural	TS280GD(TStE28)	CGC400	S280D+Z/AZ	SS275
Steel	TS350GD(TStE34)	CGC440	S350D+Z/AZ	SS340 Class1

Avaliable Painting for PPGL:

	Item	Code
	Polyester	PE
	High-durability polyester	HDP
	Silicon modified polyesters	SMP
	Polyvinylidene fluoride	PVDF
	Easy-Cleaning	—
Painting Thickness	Top side: according to clients’ request
	Bottom side: according to clients’ request
Color System	Produce according to RAL Color System or as per buyer’s color sample.
Painting structure	Top surface	Bottom surface
	Primer coating	No coating	1/0
	Primer coating	Primer coating	1/1
	Primer coating + Finish coating	No coating	2/0
	Primer coating + Finish coating	Primer coating or single back coating	2/1
	Primer coating + Finish coating	Primer coating + Finish back coating	2/2
