JGG-10KV Silicone Rubber Insulation High-voltage Electrical Motr Leading Wire
- 1000000 Meter / Meters per Month
- Shanghai
- T/T Credit Card
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Tiancheng | Model Number: | JGG |
Type: | Insulated | Application: | Heating | Conductor Material: | Other, tin-coated copper wire |
Conductor Type: | Stranded | Insulation Material: | Other, Silicone Rubber |
Product Description
Specifications
High-voltage leading wire1. High quality, low price,quick delivery
2. Professional OEM manufature
3. ISO,CCC,UL,VDE

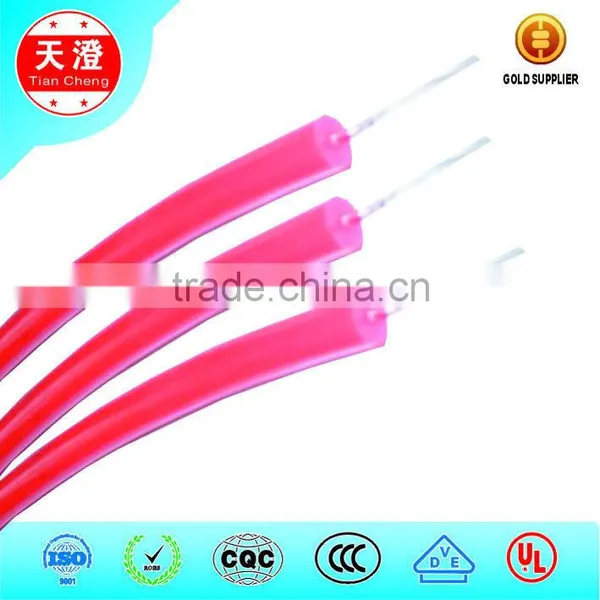

JGG-10KV Silicone Rubber Insulation High-voltage Electrical Motr Leading Wire
Product features:
Rated voltage: 10000V
Rated temperature: -60°c~200°c
Conductor: tin-coated copper wire
Insulator: Silicone Rubber
Spec. mm |
Conductor |
Insulation |
Wire dimeter | Max resistance 20°C (Ω/KM) | |||
Structure No/mm |
Diameter mm | Nominal Thickness mm |
Min Thickness mm |
Nominal mm |
Tolerance mm | ||
0.75 | 24/0.20 | 1.15 | 2.8 | 2.42 | 6.75 | ±0.25 | 26.7 |
1.0 | 32/0.20 | 1.34 | 2.8 | 2.42 | 6.95 | ±0.25 | 20.0 |
1.5 | 30/0.25 | 1.60 | 3.0 | 2.6 | 7.60 | ±0.30 | 13.7 |
2.0 | 41/0.25 | 1.90 | 3.0 | 2.6 | 7.90 | ±0.30 | 9.9 |
2.5 | 49/0.25 | 2.00 | 3.2 | 2.78 | 8.40 | ±0.30 | 8.21 |
4.0 | 56/0.30 | 2.70 | 3.2 | 2.78 | 9.10 | ±0.30 | 5.09 |
6.0 | 84/0.30 | 3.30 | 3.4 | 2.96 | 10.1 | ±0.30 | 3.39 |
10.0 | 84/0.40 | 4.60 | 3.4 | 2.96 | 11.4 | ±0.30 | 1.95 |
16.0 | 126/0.40 | 5.80 | 3.6 | 3.14 | 13.0 | ±0.30 | 1.24 |
25.0 | 196/0.40 | 7.30 | 3.6 | 3.14 | 14.5 | +0.40 -0.30
| 0.795 |
35.0 | 276/0.40 | 8.60 | 3.8 | 3.32 | 16.2 | +0.40 -0.30
| 0.565 |
50.0 | 396/0.40 | 10.7 | 3.8 | 3.32 | 18.3 | +0.50 -0.30
| 0.393 |
70.0 | 360/0.50 | 12.4 | 4.0 | 3.5 | 20.4 | +0.50 -0.30
| 0.277 |
95.0 | 475/0.50 | 14.5 | 4.0 | 3.5 | 22.5 | +0.50 -0.30
| 0.21 |
120.0 | 608/0.50 | 16.0 | 5.0 | 4.40 | 26.0 | +0.60 -0.30
| 0.164 |
150.0 | 756/0.50 | 18.0 | 5.0 | 4.40 | 28.0 | +0.60 -0.30
| 0.132 |
185.0 | 925/0.50 | 20.0 | 5.2 | 4.58 | 30.4 | +0.60 -0.30
| 0.108 |
240.0 | 1221/0.50 | 23.0 | 5.5 | 4.85 | 34.0 | +0.60 -0.30
| 0.0817 |
Production Line
Certificates
Quality Control & Test Instruments
Factory Overlook
