Home > Products > Plunger Pump Series > 3wz-2200 Triplex high pressure plunger pump Quality Choice

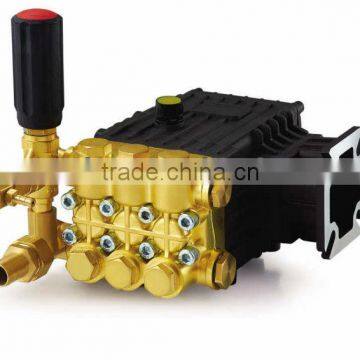

3wz-2200 Triplex high pressure plunger pump Quality Choice
Negotiable
/ Piece
50 Pieces(Min.Order)
- 100000000 Piece / Pieces per Month
- Ningbo or Shanghai
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Bounche | |
| Model Number | 3wz-2200 | Theory | Axial Flow Pump | |
| Structure | Piston Pump | Usage | Water | |
| Power | Other, gasoline | Standard or Nonstandard | Standard | |
| Fuel | Gasoline | Pressure | High Pressure | |
| Application | Other, cleaning |
Product Description
Triplex high pressure plunger pump Features
- Forged brass cylinder
- Anodized aluminum crank case
- ceramic plungers
- fixed rate chemical injector
- pressure adjustable
- quick connect outlet
- NSK bearing
Optional
- thermal relief valve
- pressure gauge
Triplex high pressure plunger pump technical parameter:
| Model | Max pressure | Flow rate | RPM | Power | plunger dia (mm) | Shaft diameter | G.W | Carton dimension(cm) |
| 3wz-2200 | 2200psi/120bar/120pa/12mpa | 15L per minutes | 3400 | 5.5HP | 18mm | 19.05mm | 9KGS | 32*25*24 |
| 3wz-2500 | 2500psi/150bar/150pa/15mpa | 15L per minutes | 3400 | 6.5HP | 18mm | 19.05mm | 9KGS | 32*25*24 |
We also have other different type: high pressure pump coupling with diesel or gasoline engine :
| Model | Max pressure | Flow rate | RPM | Power | plunger dia | shaft dia | G.W | Carton dimension(cm) |
| 3wz-3600B | 3600psi/250bar/250pa/25mpa | 15L per minutes | 3400 | 13HP | 18mm | 25.4mm | 9KGS | 32*28*24 |
| 3wz-2900B | 2900psi/200bar/200pa/20mpa | 15L per minutes | 3400 | 9HP | 18mm | 25.4mm | 9kgs | 32*28*24 |
| 3wz-2500C | 2500psi/170bar/170pa/17mpa | 15L per minutes | 3400 | 178FE(7HP) | 18mm | 25.4mm | 9kgs | 32*28*24 |
| 3wz-3600C | 3600psi/250bar/250pa/25mpa | 15L per minutes | 3400 | 186FE(13HP) | 18mm | 25.4mm | 9kgs | 32*28*24 |
Pump which coupling with electric motor:
| Model | Max pressure | Flow rate | R.P.M | Power | plunger dia | shaft diameter | G.W | Carton dimension(cm) |
| 3wz-3600A | 3600psi/250bar/250pa/25mpa | 15L per minutes | 1450 | 7.5KW | 18mm | 28mm | 9kgs | 32*25*24 |
| 3wz-3600 | 3600psi/250bar/250pa/25mpa | 13.7L per minutes | 1450 | 5.5KW | 18mm | 28mm | 9kgs | 32*25*24 |
| 3wz-2900 | 2900psi/200bar/200pa/25mpa | 13.7L per minutes | 1450 | 4KW | 18mm | 28mm | 9kgs | 32*25*24 |
| 3wz-2500 | 2500psi/170bar/170pa/17mpa | 13.7L per minutes | 1450 | 3KW | 18mm | 28mm | 9kgs | 32*25*24 |
| 3wz-1850 | 1850psi/130bar/130pa/13mpa | 13.7L per minutes | 1450 | 3KW | 18mm | 28mm | 9kgs | 32*25*24 |
| 3wz-1450A | 1450psi/100bar/100pa/10mpa | 13.7L per minutes | 1450 | 2.5KW | 18mm | 28mm | 9kgs | 32*25*24 |
| 3wz-1450 | 1450pso/100bar/100pa/10mpa | 13.7L per minutes | 1450 | 2.2KW | 18mm | 28mm | 9kgs | 32*25*24 |
Axial pump :
| Model | Max pressure(bar) | Flow rate | R.P.M | Power | Shaft diameter | G.W | |
| 3wz-5.5 | 170bar | 9L per minutes | 3400 | 5.5HP | 19.05mm | 5KGS | |
| 3wz-6.5 | 180bar | 9L per minutes | 3400 | 6.5HP | 19.05mm | 5kgs |
