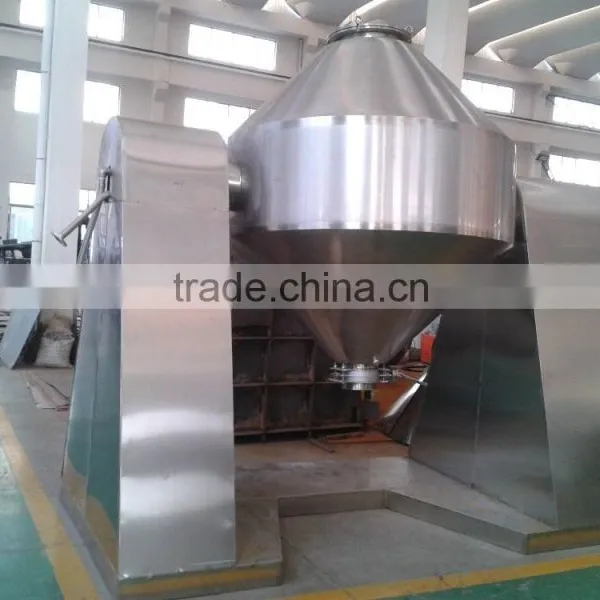

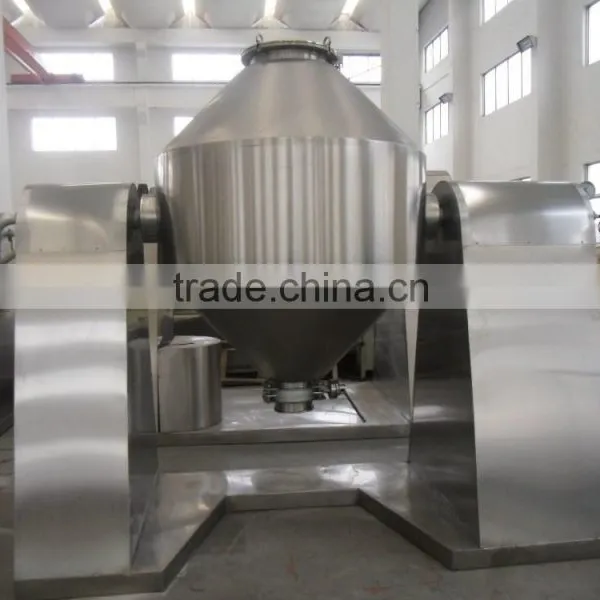

SZG-5000 Double Cone Rotary Vacuum Dryer

FOB Price

USD $3,000 - $10,000 / Set

1 Set(Min.Order)

Supply Ability 30 Set / Sets per Month
Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Vacuum Drying Equipment
Place of Origin	Jiangsu, China	Brand Name	lemardrying machinery
Model Number	SZG-5000	Power(W)	15KW
Dimension(LWH)	4400x2500x4200	Weight	9000KG
Certification	ISO901,ISO14001,CE	Warranty	3 years
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

SZG Double Cone Vacuum Dryer is widely used for drying Pharmaceutical intermediates .

Description of SZG-5000 Double Cone Rotary Vacuum Dryer :

This machine can feed powder or granules into twin cone container through vacuum transmission or manual. With continuous rotation of container, material will make complex inpacting motion in the container and reach to uniform mixing. And heating source will be in the jacket, material will be dried by the heat transferred from jacket in the vacuum condition. In the vacuum condition, material can be dried in a low temperature and if you need to recover the organic solvent, you also can provide you a condensor to collect the organic solvent.

Features of SZG-5000 Double Cone Rotary Vacuum Dryer :

Energy saving, easy to operate, low labor strength, and high working efficiency.

Application of SZG-5000 Double Cone Rotary Vacuum Dryer :

1. Pharmaceutical intermediates

2. Material that cannot undertake high temperature

3. Materail that is easy to osidize

4. Material that do not permit to destruct

5. Material that need to recover organic solvent

6. Material with vigorous irritative and toxicity.

Technical parameters of SZG-5000 Double Cone Rotary Vacuum Dryer :

Item	100	350	500	750	1000	1500	2000	3500	4500
volume inside the tank(L)	100	350	500	750	1000	1500	2000	3500	4500
loading capacity(L)	≤50	≤175	≤250	≤375	≤500	≤750	≤1000	≤1750	≤2250
rotating speed(rpm)	3~13
power of motor(kw)	0.75	1.1	1.5	2	3	3	4	5.5	7.5
occupied area L×W(mm)	2160×800	2260×800	2350×800	2560×1000	2860×1300	3060×1300	3260×1400	3760×1800	3960×2000
rotating height(h)	1750	2100	2250	2490	2800	2940	2990	3490	4100
design pressure inside the tank(MPa)	-0.1~0.15
design pressure of jacket(MPa)	≤0.3
working temperature(°C)	inside the tank≤85 jacket≤140
pump type and power when t condenser is not used(kw)	2X-15A 2kw	2X-15A 2kw	2X-30A 3kw	2X-30A 3kw	2X-70A 5.5kw	JZJX300-8 7kw	JZJX300-4 9.5kw	JZJX600-8 11kw	JZJX600-4 20.5kw
power when t condenser is used(kw)	SK-0.4 1.5kw	SK-0.4 1.5kw	SK-0.8 2.2kw	SK-2.7B 4kw	SK-2.7B 4KW	SK-3 5.5KW	SK-6 11KW	SK-6 11KW	SK-9 15KW
weight(kg)	800	1100	1200	1500	2800	3300	3600	6400	7500

note:For raw material, if its volume has great change before and after dry,then its filling cofficient may be increased or decreaded
