Polyethylene Foam Sheet Machine

Polyethylene Foam Sheet Machine photo-1
Polyethylene Foam Sheet Machine photo-2
US$ 1 - 56,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Sheet
Plastic Processed:
PE
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Sheet
Plastic Processed PE
Screw Design Single-screw
Automatic Grade Full Automatic
Place of Origin Shandong, China
Brand Name Hongrun
Model Number HR-EPE120
Voltage 220/380V
Power(W) 120kw
Dimension(L*W*H) 25*2.3*2.2m
Weight 12T

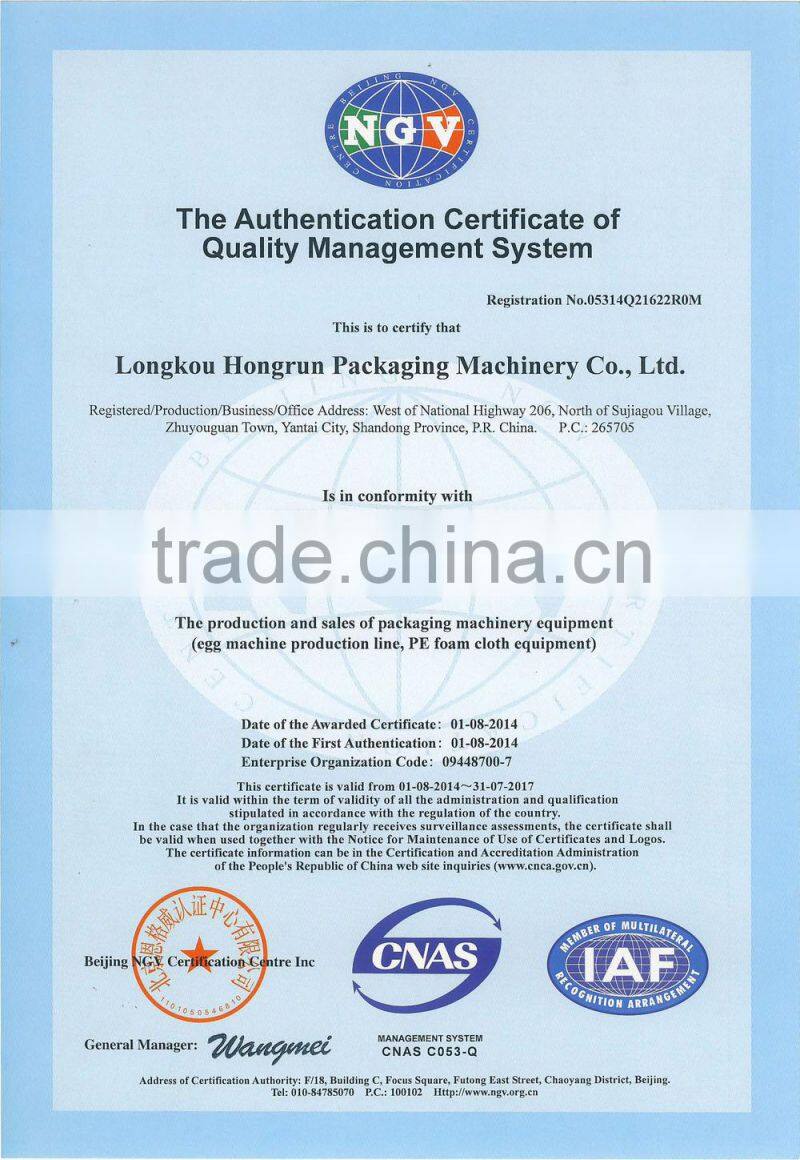

Certification ISO9001
After-sales Service Provided Engineers available to service machinery overseas





polyethylene foam sheet machine

polyethylene foam sheet machine

Specifications

1.Make foam sheet,pipe,net,rod,profile etc
2.Top quality EPE machine
3.Best equipments brand

Features

1.Damping,Resist static electricity,Dust-proof

2.packaging material:electronic equipment,pottery,glass products,furniture

3.insulation material:Agriculture,building

Description



PE foam sheet extruder producing fine closed cell Polyethylene foam sheet, by our unique



designed Screw and Barrel system, using Butane foaming agent, Talc powder or Talc master



batch and Anti-shrinking agent (GMS for short-Surface Active Agent) by accumulated experience and advanced technology.



1.PE foam and related products are made from PE resin and it is expanded and formed into



shapes by being heated and extruded. And it is easy to be decompounded and environment



friendly.



2. Its key function is cushion protecting and warmth reserving.



3. Nowadays it is the most popularly used for modern batch production products, especially export



packaging industry, including electronic industry (such as PC computer, laptop, electronic chips



and parts, inverter, TV, air conditioner, refrigerator), furniture, glassware, garments, metal parts,etc.



4. Whoever aims at modern packaging and export, he has to use PE foam for the following



reasons: Packaging with air bubble film, EPS and plastic film is forbidden in many countries.



Paper packaging is so expensive.



5. PE foam products have quite a few varieties: Sheets for direct wrapping and to make bags;



PE sheet may be coated with plastic film, craft paper and aluminum foil. It may be laminated (by electricity or LPG flame) into thick blocks. Then cut them to make different containers or frames. PE fruit net is direct for fruit and small matter's wrapping. If you add special molds, you may make different profiles for door hinges and furniture packing.

Specification

Model

Unit

EPE90

EPE105

EPE120

EPE150

EPE170

Screw diameter L/D



90/55:1

105/55:1

120/55:1

150/55:1

170/55:1

Screw speed

r/min

5-45

5-45

5-45

5-45

5-45

Foam rate



20-40

20-40

20-40

20-40

20-40

Width of product

mm

1000-1400

1000-1500

1000-2000

1000-2000

1000-2000

Thickness of product

mm

0.5-4.5

0.5-6.5

0.8-8

1-12

2-16

Cooling method



cooled by water

Installed capacity

kw

90

100

120

150

180

Dimensions(L×W×H)(approx)

m

22×2.3×2.2

23×2.3×2.2

25×2.3×2.2

30×2.3×2.2

32×2.3×2.2

Total weight(approx)

t

8.5

9

12

15

17

Services

1.when we make the order, I will follow your order, update machine information and send to you

2.when finish the machine, we will pack the machine well and arrange ship send to you. when the machine got your factory we will send our rich experience engineers to your country install machine and train your worker till you satisfied with them.

Warranty



1. our machine have 1 year guarantee and lifetime maintenance.



2. if you need any parts, we will supply them as a cost price



3.when you run the machine, if you have any problem our aftersales service person will solve your problem at first time.

polyethylene foam sheet machine

FAQ

Q:. Why I choose your company?

A:  a, We are China Leading foam machine Manufacturer.

      b, our company have made foam machine for many years with strong

         experience and advanced technics

     c, Best Quality & Best Service with Competitive price.

     d, 100% inspection Before Shipment. And we have got CE certificate

     e, we have Professional technical team, will supply 24 hours service

     f, our machine have good quality, 1 year guarantee and lifetime maintenance



Q:What should we prepare except material

A:You should prepare workshop, water line, electric line, compress air(if you need I can help you buy air compressor)

We can supply workshop layout drawing.



Q: can you make machine upon our requirement?

A:  of course, it is no problem, we can make machine according to your requirement, such as part brand, machine color, labels, moulds, etc.
