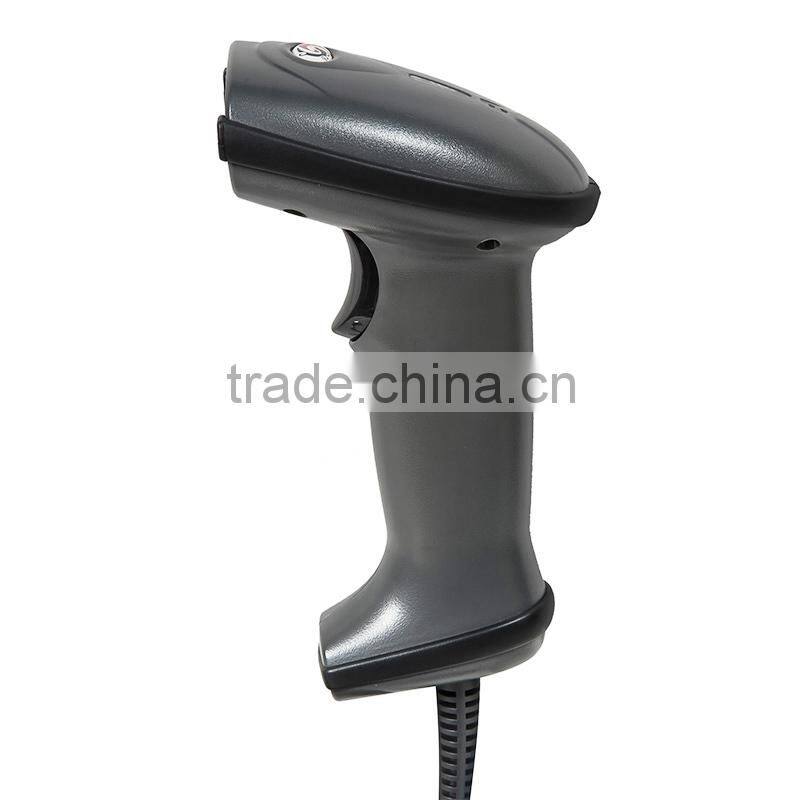

Red light Handheld 2D Barcode Scanner XL-3956

FOB Price

Negotiable / Piece

10 Pieces(Min.Order)

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Handheld 2D Barcode Scanner XL-3956

1.IP54 standard and withstand 2M drops

2.Ecomomical solution for 2D scanning

3.Read inverse barcode symbology

4.Read barcode symbology on phone screen

5.Reliable safety design with CE, EMC, RoHS, Class I laser safety

Technical Specifications

PERFORMANCE
Image Sensor	CMOS
Image size	640×480 pixels
Light Source	Red light, LED,625nm±10nm
Precision	≥5mil(1D),, ≥6.8mil(QR) (2D),
Depth of Scan Field	50-300mm(UPC-A,13mil), 25-280mm(QR Code, 20mil)
Symbologies (1D,2D)	1D:Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar, etc 2D:PDF417, QR Code(Model 1/2,miroco), DataMatrix(ECC200, ECC000,050, 080, 100,140) etc
Sensitivity	Roll:360°Pitch and 0°Skew Skew:±50°Roll and 0°Pitch Pitch:±50°Roll and 0°Skew
Support Interface	USB HID-KBW, USB COM Port, USB POS, USB Datapipeor RS232
Print Contrast Signal	≥30%
Indicator	Buzzer, LED
Scan Mode	Manual & automatic
PHYSICAL PARAMETER
Dimension	L×W×H:175mm× 73mm× 102mm
Weight	229g
IP rating	IP54
Material	ABS+PC
Cable length	Standard 2M straight
ELECTRICALS
Power Consumption	2 W
Voltage	DC 5 ± 0.5V
Current (Working)	170mA
Current(Sleep)	40mA
ENVIRONMENTS
Operate Temperature	- 5℃ to 45℃
Storage Temperature	- 40℃ to 60℃
Humidity	5% to 95%
Illumination	0 to 100000LUX
Certification	CE(EMC) Class B, Rohs
