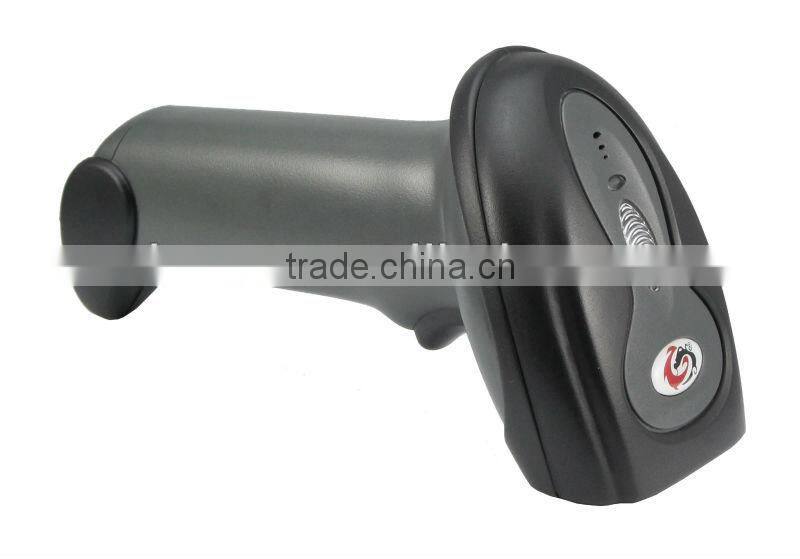

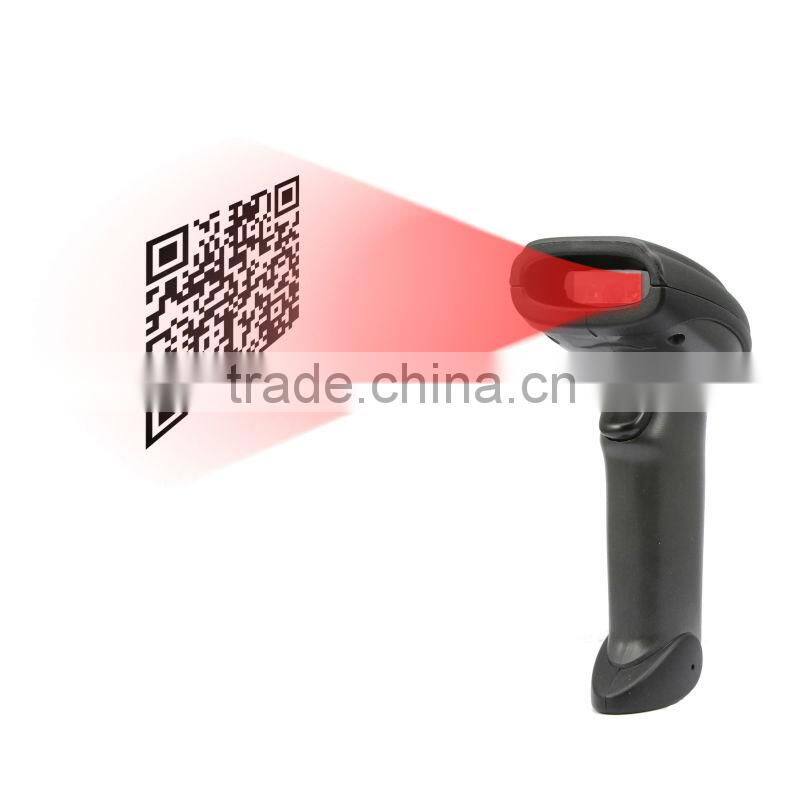

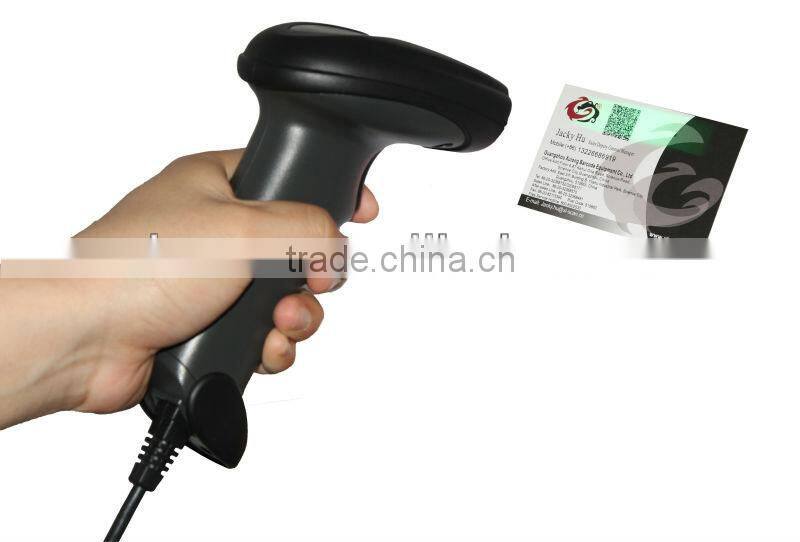

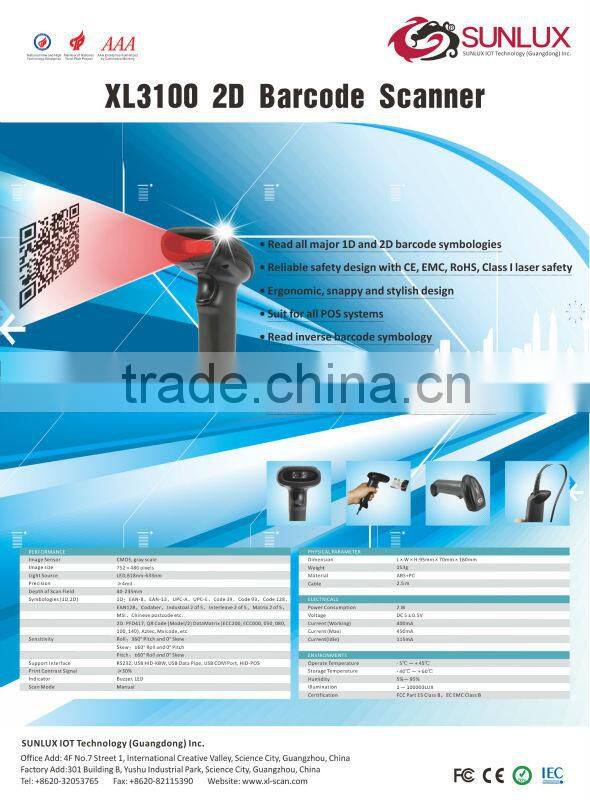

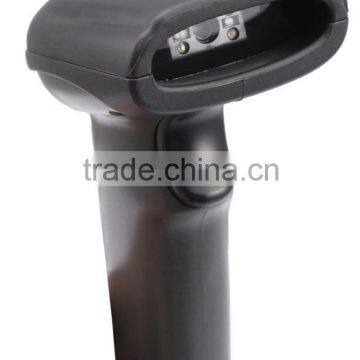

2D Barcode Scanner Good Solution for Industrial XL-3100

PERFORMANCE

Image Sensor

CMOS, gray scale

Image size

752 x 480 pixels

Interface

RS232, USB HID-KBW, USB Data Pipe, USB COM Port,

HID-POS

Light Source

LED, 618nm-633nm

Precision

>4mil

Depth of Scan Field

35mm-210mm

Symbologies (1D, 2D)

1D: EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codaber, Industoal 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, Chinese postcode etc.

2D: PFD417, QR Code (Model/2) DataMatrix (ECC200, ECC000, 050, 080, 100, 140), Aztec, Mxicode, etc

Print Contrast Signal

>30%

Indicator

Buzzer, LED

Scan Mode

Manual

PHYSICAL PARAMETER

Dimension

L * W * H: 95mm * 70mm * 160mm

Weight

128g

Material

ABS+PC

Cable

2.5 m

ELECTRICALS

Power Consumption

2 W

Voltage

DC 5V (4.5-5.5)

Current (Working)

400mA

Current(Idle)

115mA

Current(Standby)

18mA

Current (Deep Sleep)

800uA
