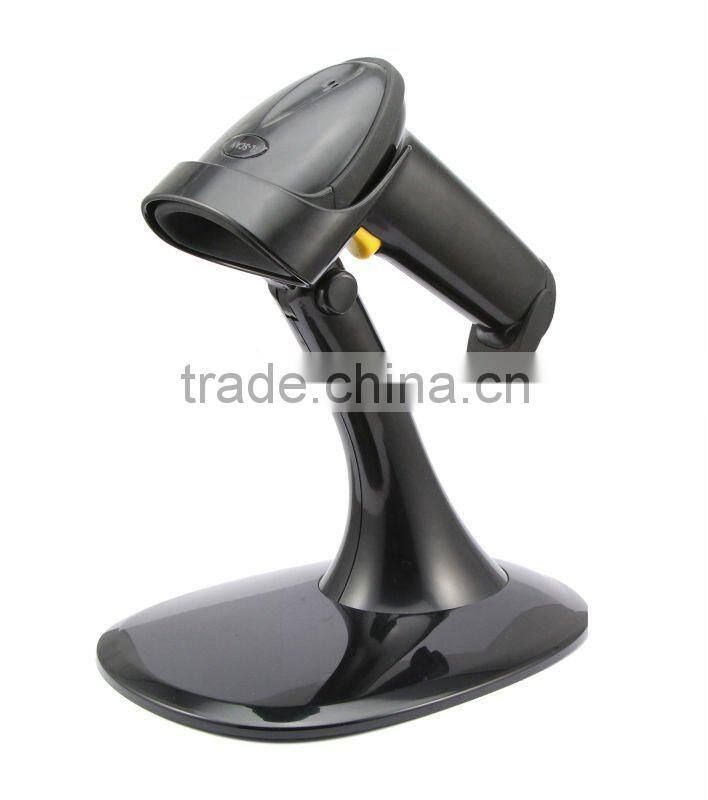

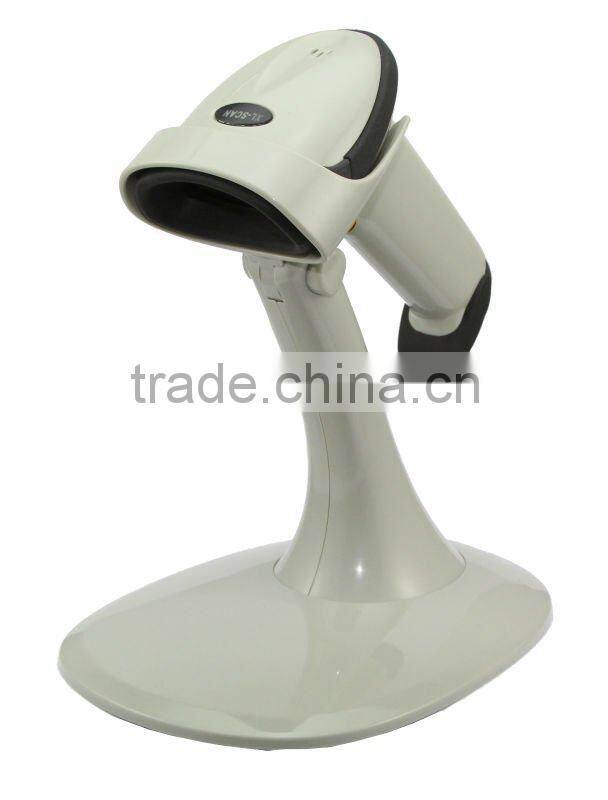

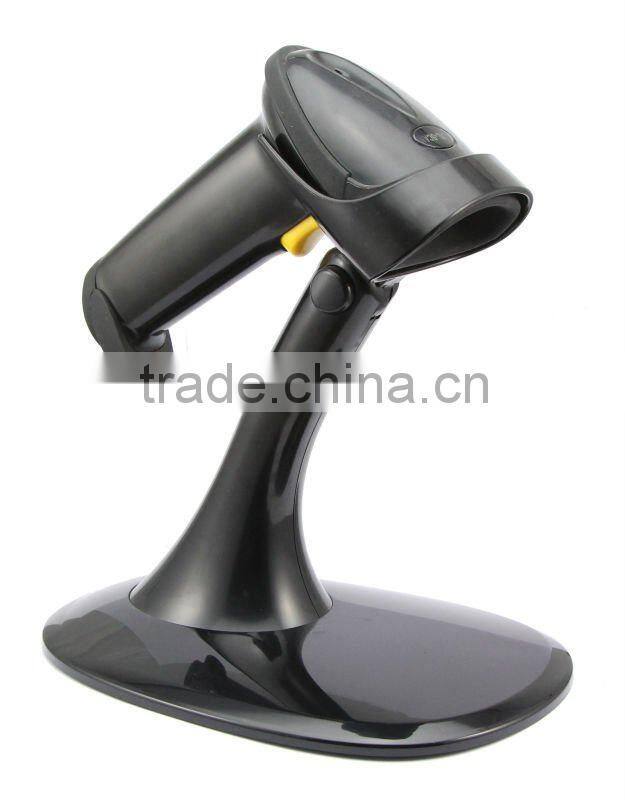

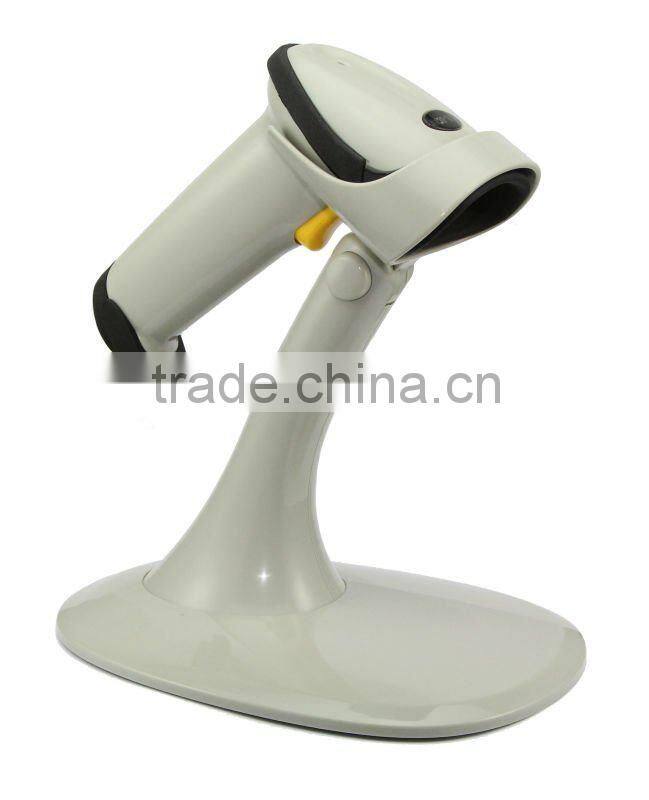

Withatand1.5m antiknock design barcode scanner XL-8800

Light Source

Visible Laser Diode 650nm

Scan Pattern

Single Scan

Scan Rate

100 times/second

Scan Precision

0.10mm(pcs0.9)

Scan Width

30mm

scan window, 220mm

200mm

Scan Depth of field

0-350mm (0.33mm pos0.9)

Decode Capability

EAN-8, EAN-13, UPC-A,UPC-E,Code 39, Code 128, EAN128,                                                                     Codabar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, etc.

Tilt

30

Elevation Angle

65

Deflection Angle

55

Support Inferface

USB or PS/2 or RS232

Print Contrast

30% UPC/EAN 100%

Mention Pattern

Buzzer, Indicator

Scan Mode

Automatical & Manual scanning

Size

L x W x H: 160mm x 70mm x 86mm

Weight

126g

Material

ABS + PC

Cable

Standard 2M straight

Voltage

5VDC

Operating Current

85mA

Static Current

36mA

Laser Class

Meet the Grade I National Criteria for Laser Safety

EMC

CE & FCC DOC compliance

Operating Temperature

0°C to  45°C

Storage Temperature

-20°C to  60°C

Humidity

5% to 85% relative humidity, non-condensing

Light Levels

Daylight, 5000Lux

Shock

Designed to withstand 1.5M drops
