MLLDPE.LLDPE,LDPE,HDPE.EVA multi-layer co-extrusion packing compound never laekage blown film machine

Specifications

packing blown film machine :
1.high quality
2.high effciencyand high finished products
3.save electric
4.cheaper price

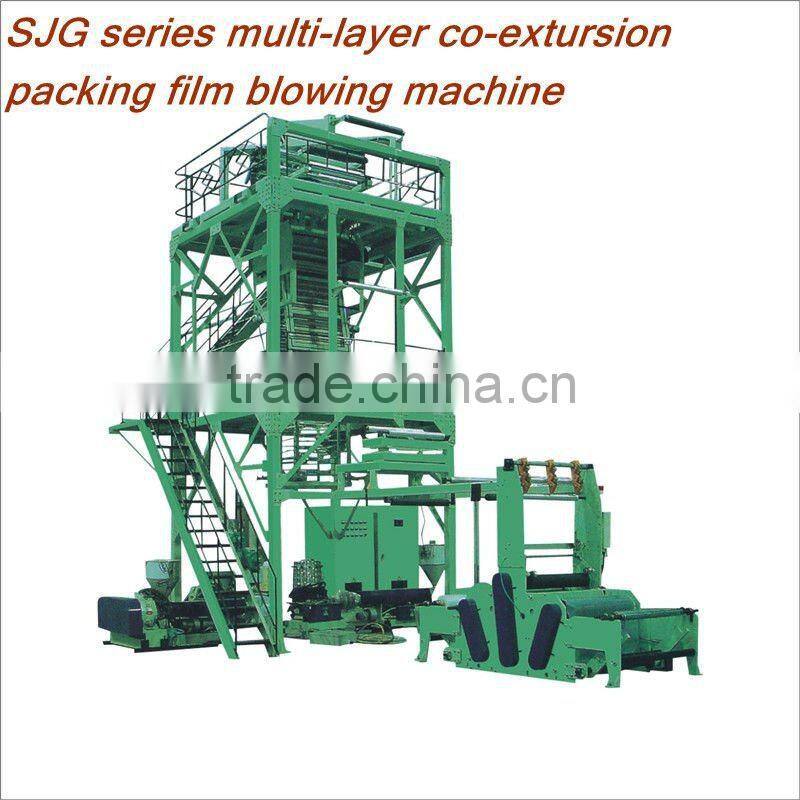

SJG Series Multi-layer co-extrusion packing blown film machine:

--------------------------------------------------------------- -------------------------------------------------------

 film machine ,film extruder,film machinery,blown film machine,plastic film blowing machine,film blown machine,blown machine,extruder machine,extruding machine,



 film machine ,film extruder,film machinery,blown film machine,plastic film blowing machine,film blown machine,blown machine,extruder machine,extruding machine,







Performance and characteristics :



1.Haul-off is oscillating reverse by horizontal ±180°.Its structure is reasonable,so it economizes lots of

   energy and it is easy to maintain.



2.By means of the reversing haul-off unit,films can be produed without requiting roating diehead,so the structure of die head is simplified.



3.Reversing haul-off unit eliminated many problems of ling channel for the rotating die head,difficult sealing for the melt,compound leakage being easy,unsymmetrical heating.





4.Diffcult maintenance,macro film tolerance and so on haul-off unit reduces the degree of diffieculty for recipe of the multi-layer co-estruded produt and production technical processing control.



5.If the blowing film line is with IBC(internal bubble cooling system),it can produce film with the quality of more high=grade transparency and better all round performance.



6.The produced film is very flat,reel is high-quality by the us of reversing haul-off units,The film can meet the demand for the high-speed printing.



Main Technical Variables :



Type		MSJ55-GS1300	MSJ60-GS1500	MSJ65-GS1700	MSJ70-GS2200
Max.Lay fat width(mm)		1200	1400	1600	2000
Film layer		3	3	3	3
Film thickness(mm)		0.02-0.12	0.02-0.12	0.02-0.12	0.02-0.12
Max.output(kg/h)		120	150	180	240
Raw material		MLLDPE,LLDPE,LDPE,EVA
Screw diameter(mm)		55*3	60*3	65*3	70*3
Screw L/D ratio L/D		28:1	28:1	28:1	28:1
Screw Max.rotation speed(r/min)		15-100	15-100	15-100	15-100
Extruder driving power(kw)		22*3	30*3	37*3	45*3
The way of esteem changing of extruder		Manual twin-station changing screenquickly
Die structure		With or wihout IBC (internal bubble cooling system)
Air-ring structure		Dual tuyere
Reversting haul-off system	Film turning mode	Horizontal
	Angle of reversing	±180°
Take-off Wide-up speed(m/min)		45	45	45	45
Total power(kw)		85	110	140	220
Overallldimensions(mm)		1000*6000*9000	1000*6000*9500	1100*7000*10000	1300*7000*12000
Weight(T)		15	20	25	30





,
