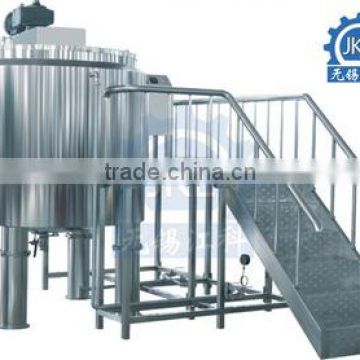

Stainless Steel Electric Heating Mixing Tank with Scraper Agitator/Stirrer
- 100 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- New Condition and Homogenizer Type Paint Dyes Dispersing Machine Detergent Product Line
- Homogenizer Type and New Condition Chemical Cosmetic Mixer For Paint Disperser Liquid Soap Making
- Cosmetic Cream Mixing Equipment Shampoo Liquid Soap Emulsifying Homogenizing Machine
- Cosmetic Cream/Lotion Emulsifying Tank Pharmaceutical Ointment Mixing Tank
- Chemical Blending Mixing Tank for Yogurt and Paint Making Machine
- Liquid Soap/Hand Soap Mixer Bath Shampoo Mixing Machine
Product Details
Condition: | New | Mixer Type: | Agitator | Product Type: | Shampoo |
Application: | Liquid with Suspended Solids | Additional Capabilities: | Milling | Place of Origin: | Jiangsu, China |
Brand Name: | JKE | Model Number: | MT-1000L | Max. Loading Capacity: | 1000Liter |
Voltage: | 110V~480V | Power(W): | 3kw | Dimension(L*W*H): | 1100mm*900mm*2350mm |
Certification: | CE | Warranty: | 18 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Stainless Steel Electric Heating Mixing Tank with Scraper Agitator/Stirrer
JKE MT stainless steel mixing tank is used in the mixing, dispersing, dissolving, emulsification, dissolution, reaction, formulating, heating, cooling, warm-keeping, cultivating, disinfecting and storage etc. Different types of blades and relevant speed achieve the production condition. Blades can be made of mild steel, stainless steel, nickel alloy, titanium etc. metal material. This mixer can be used with combination of flow meter, liquid level indicator, temperature sensor etc. functional accessories. Main shaft seal types: stuffing seal, mechanical seal, and magnetic seal. Jacket can be used to achieve heating preservation, cooling, heating etc.
MT stainless steel mixing tank is according to mixing principium such as liquid backset, convection, on flow and cut to mix the material quickly, it is mostly used in mixing and emulsifying liquid to liquid , otherwise , it can also reach the demand of powder to liquid, if you append dissoluble powder into liquid when mixing.
1. Suit for the process about formulating, dissolving, heating, cooling, warm-keeping, cultivating, disinfecting and storage. It is available online CIP cleaning ( only suitable for enclosed structure)
2. Designed in accordance with sanitary requirements, so the structural design is very user-friendly, easy to operate, healthy to store.
3. The inner surface is mirror-polished (roughness Ra≤0.4µm); the welding of all kinds of nozzles, endoscopic, manholes and the pot adopt stretch flanging process arc transition, easy to clean with no dead ends, ensure the reliability and stability in the production process.
4.T he main blending adopts stepless speed variation device, which can reduce the formation of bubbles when the temperature is low and the viscosity is high.
5.The gear pump circulating discharging device can accelerate the forming of products and realize rapid discharging.
1.Cosmetic and daily chemical product: Cosmetic cream, lotion, shampoo, detergent, health care product, gel, Laundry detergent, hand sanitizer, armpits lotion etc.
2.Pharmaceutical product: Ointment, Ice packs, injection liquid, penicillin etc
3.Food: Salad, mayonnaise,peanut butter,sesame butter,buttery,Animal fat, iced products, healthy food etc.
4. Beverage: Fruit Juice, Milk Juice etc.
5.Chemical: Paints, Pigments, dyes, phto solvents, Rubber and resin, pesticides ,Shoe polish, general chemicals etc.
Capacity | 1000Liter (Design capacity:1200Liter) | ||
Kettle Cover | Liquid(particle)inlet, material inlet, air inlet with filter, inspect light and sight glass, CIP drencher head, vacuum port, pressure meter(1 to -0.1 bar) | ||
Mixing pot |
Material | Inner layer: SUS316L thickness: 8mm | |
Middle layer: SUS304 thickness: 6mm | |||
Outside layer: SUS304 thickness:3mm | |||
configuration | Bottom material exhaust, size: 2” | ||
Temp. sensor (0-199℃), PT100 | |||
Stirring system |
Homogenizer | 1.Material: SUS316L; standard homogenizer 2. Power: 15kw/380V/50Hz;RPM: 0-1400R/Min | |
Stirring scrap and middle stirring | Material: SUS304,Scrap material: PTFE | ||
1. Stirring scrap and middle stirring use the same motor 2,Power:5.5kw/380V/50Hz;RPM:0~48r/min(Frequency control) 3. Stirring scrap and middle stirring rotating the opposite direction | |||
Vacuum system | 1. Vacuum pump: water recycle, power 4kw/380/50Hz
| ||
Heating method | Electric heating: 36kw, cooling water inlet | ||
discharging | Bottom valve | ||
Pressure | Jacket working pressure:0.3Mpa | ||
Dimension | 1500*1350*3200mm(L*W*H) |
Drawing:
1. The above machine which we supply it to you, we can give you 12 month after sales warranty.
2. Maintenance services: any malfunction happened, once you enquiry us, we will reply you within 48 hours except the special reasons.
3. Any damage except the wrong operation during warranty period is repaired freely. We guarantee will send it to customer by DHL, Fedex, UPS etc. If we have parts in our warehouse ,we will send within 24 hours, if we don't have it in our warehouse, we will manufacture it with our fast time.
4. Lifelong services: we provide lifelong services for all the products we sold out, and supply the spare parts with discount price.
5. We can also send our engineer to you factory to install the equipment and train your staff if you need, but the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller’s engineer. Our engineers will train your staff to operate the machine during the period of installation and commissioning, and they will not leave from you side until your staff can operate it properly and normally. The customer need pay 80 USD/day for our engineer.
6. Certificate services: we can provide related certificates to customers freely according to the request of customers. Like Form A , Form E, Certificate of origin, CE, Free fumigation certificate etc.
7. Inspection services: you can ask the third part inspection company or your inspector to inspect the products before shipment. Also, we will send the detail information for the machine, it include manual, video, photos, Circuit diagram etc.
8. Shipment document service: We guarantee that after receiving all of shipment files, we will send it to customer within 24 hours by DHL, Fedex, UPS etc. For Bill of loading, customer can choose original or Telex release.
9.The customer can contact with seller by phone, e-mail, Skype etc, we promise will keep our mobile is open full days (24 hours).
parts:
