Home > Products > Air Source Heat Pump > High COP Commercial Hot Water Heat Pump 20KW
High COP Commercial Hot Water Heat Pump 20KW
- 200 Piece / Pieces per Month
- Shenzhen of China
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Type: | Air Source Heat Pump | Installation: | Freestanding | Storage / Tankless: | Storage |
Housing Material: | Other, Galvanized steel with coating | Use: | Other | Certification: | CB, CE, Other, CB, CE, RoHS |
Place of Origin: | Guangdong, China | Brand Name: | HICOOL | Model Number: | DKFXRS-120II |
Product Description
High COP Commercial Hot Water Heat Pump
Features:
1. Based on inverse cannot cycle principle, the unit can transfer energy in air into water through heat pump system, raise the water temperature to meet service conditions by consuming part of electric power.
2. It has high energy efficiency ratio, can produce 4kw heat by consuming every 1kw electric power. Comparing with traditional electric water heater which produces 0.95kw heat by consuming every 1kw electric power, its economic benefit is more than 4 times bigger than traditional heaters, or more than 2 times bigger than coal/oil (natural gas) furnace. Comparing with solar water heater, it is not restricted by installation conditions or weather conditions, can be used in all seasons.
3. Safely and reliable, electricity will not contact water directly during heating process, users will not suffer electric shock risk, nor explosion risk or poisoning risk of oil/gas furnace.
4. Environmental friendly, it will consume only part of electric power during operation, will not bring any pollution to the environment.
Application range:
It is mainly applied to houses, hotels, restaurants, schools, hospitals, swimming pools, bathhouses, large high grade office buildings which have requirements on hot water.

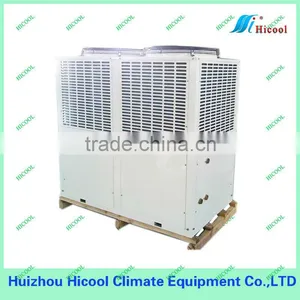

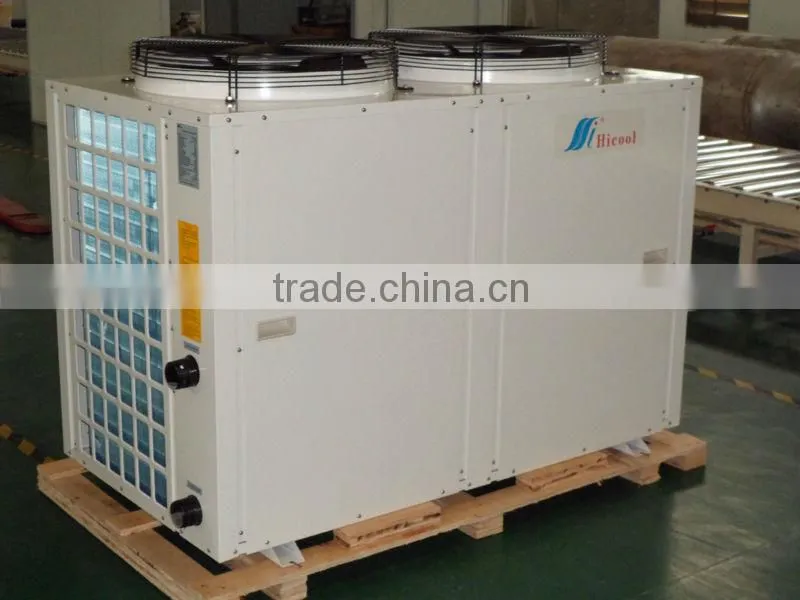

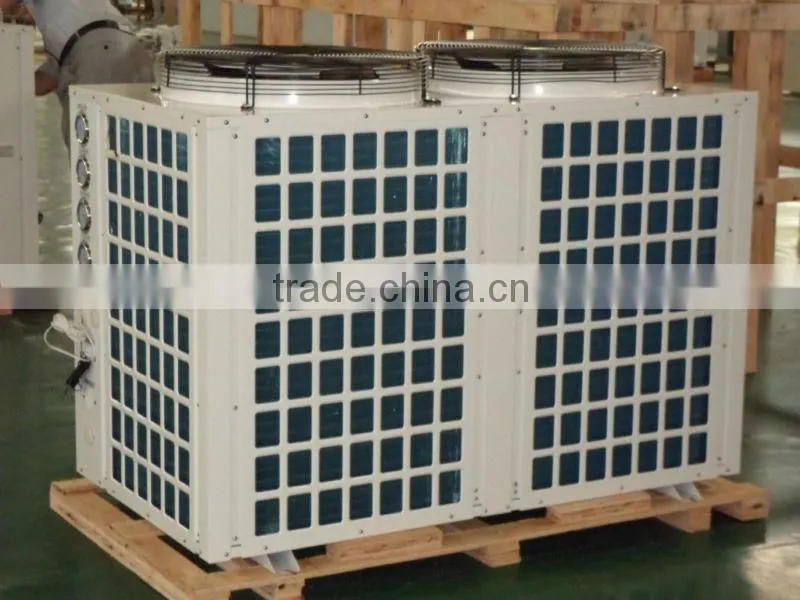

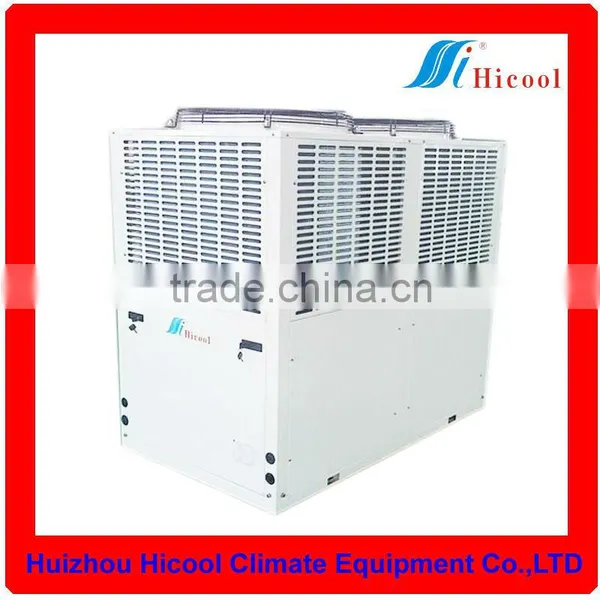

Photos
Parameter
Model | DKFXRS-4Ⅰ/P | DKFXRS-6Ⅰ/P | DKFXRS-10Ⅰ/P | DKFXRS-16Ⅰ/P | DKFXRS-20Ⅰ/P | ||
Heating Capacity | kW | 4 | 6 | 10.5 | 15.8 | 20.6 | |
Rated Input Power | Heating | kW | 1.25 | 1.85 | 2.65 | 3.92 | 5.3 |
Rated Input Current | Heating | A | 6.25 | 9.25 | 12 | 17.8 | 24.1 |
Rated Water Output | L/h | 80 | 120 | 220 | 340 | 440 | |
Top Out Water Temperature | 60°C | ||||||
Power Supply | 220V/50Hz 1P | 380V/50Hz/3P | |||||
Compressor Quantity | Sets | 1 | 1 | 1 | 1 | 1 | |
Fan Quantity | Sets | 1 | 1 | 1 | 1 | 1 | |
Refrigerant | R22(R410A) | ||||||
Refrigerant Charge | kg | 0.8 | 1.8 | 2 | 3.8 | 4.5 | |
Ambient Temperature | -8°C~43°C | ||||||
Control Manner | Central control and network control | ||||||
Protection | High/low pressure protection, over-heat protection, over-current protection, water-break protection | ||||||
Noise | dB(A) | 50 | 52 | 57 | 59 | 60 | |
Pump | Type | Stainless Multi-stage | |||||
Pump Head | m | 5 | 5 | 10 | 13 | 13 | |
Flow | m3/h | 0.68 | 1.1 | 1.8 | 2.7 | 3.5 | |
Power | kW | 0.055 | 0.055 | 0.25 | 0.37 | 0.37 | |
Quantity | Sets | 1 | 1 | 1 | 1 | 1 | |
Water Gap Spec | Nut | inches | 3/4" | 3/4" | 1" | 1" | 1-1/4" |
Net Dimension(LxWxH) | mm | 880×360×630 | 880×360×630 | 1020×375×845 | 1000×555×1420 | 1000×555×1420 | |
Net Weight | kg | 58 | 65 | 80 | 180 | 220 | |
Packing Dimension(LxWxH) | mm | 930×410×760 | 930×410×760 | 1060×450×1000 | 1090×650×1590 | 1090×650×1590 | |
Gross Weight | kg | 65 | 72 | 92 | 200 | 240 | |
Note:1) Nominal heating capacity is determined when ambient temperature is 20°C. 2) Hot-water feeding: temperature of compensating water is 15°C, outflow is 55°C. |
HUIZHOU HICOOL CLIMATE EQUIPMENT CO., LTDis an emerging company that specializes in the design and manufacture of commercial/central air conditioning system. HICOOL, committed itself to commercial/central air conditioner researching, developing & designing since 2003, is strategically located in Huizhou, a city by the beautiful Pearl River in Guangdong Province, China. HICOOL operates out of a new 25,000 square meters factory which was designed to employ the latest efficiencies in manufacturing process.
HICOOL offers extensive range of commercial/central air conditioning system including non-refrigerant air conditioner, VRV system, high and low static duct unit, rooftop unit, air-cooled split type floor standing unit, small or modular air-cooled chiller, water / ground source heat pump, air source heat pump, swimming pool heat pump, air / water cooled screw chiller, air handling unit, fan coils, cassette type, etc. These products are well recognized domestically and internationally by our customers from East Europe, Middle East, South Africa, Oceania, North America and South America.
Customers benefit from HICOOL's state of art factory and product design utilizing cutting edge engineering technology. The company adheres to four key principles in the design and manufacture of its products namely: technology, efficiency, quality, and innovation. The company's specialized products meet its customer's needs by incorporating leading edge technology along with pursuing a quality policy of “reliability and safety, green and efficiency, innovation and technology, improvement and excellence”. The company's products demonstrate superior quality, elegant design, and extraordinary energy efficiency. Our factory possesses advanced production equipments and testing systems that are established to comply with the ISO9001 Quality Management System. All of the company's products are certified by CCC (China Compulsory Certification), CE & CB, while the leading products have MEPS (Oceania market), ETL (Northern American market), and some other certificates.
HICOOL provides its customer with custom design generated by computerized modeling and simulation. We partner with distinguished institutions and companies internationally to offer our customers free services in the design of air conditioning system, installation, training, and warranty.
High quality creates cool life. Our commitment to our customers, is to continue to add value through cutting edge technology, cost competitiveness, and sustainable growth.
Factory Overview
1. Can you offer OEM products?
Sure, we are OEM factory for 8 years
2. What are your typical products?
Water cooled packaged heat pumps, air source heat pumps, ground source heat pumps, rooftop packgaed units and chillers
