Home > Products > Voltage Regulators > TSD Series servo AC voltage stabilizer 5000VA LED

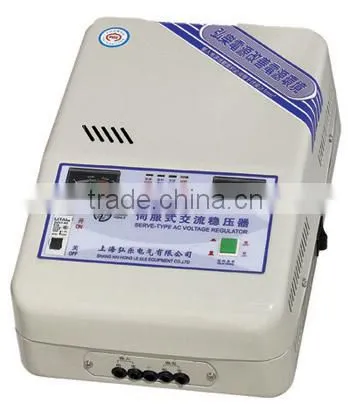

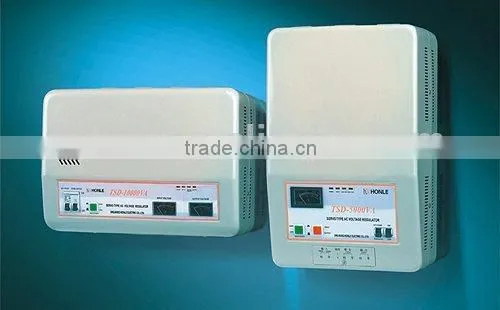

TSD Series servo AC voltage stabilizer 5000VA LED

FOB Price

USD $9.7 - $102.8 / Piece

10 Pieces(Min.Order)

Supply Ability 200000 Piece / Pieces per Month
Port Ningbo
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Zhejiang, China	Brand Name:	HONLE, Honle	Model Number:	TSD3000
Usage:	SVC	Phase:	Other, Single Phase, Single Phase	Current Type:	Other, AC, AC

Product Description

Specifications

TSD Series servo AC voltage stabilizer
output voltage 220V+/-3% 110V+/-4%
Frequency 50-60HZ
Delay time Long Delay 3-7min,

TSD Series servo AC voltage stabilizer
General

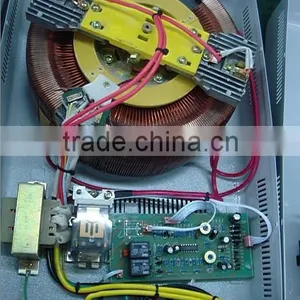

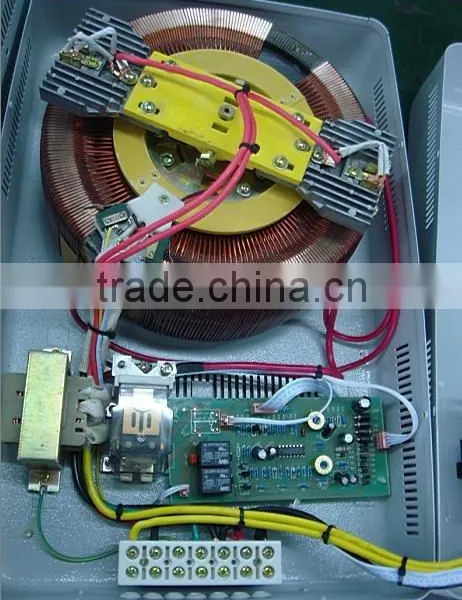

TSD Series servo AC voltage stabilizer mode AC voltage stabilizer is developed on the base of SVC series high accuracy full automatic AC voltage stabilizer.Compared with the original product,this type possesses higher quality and more functions,novel and luxurious apperance,hanging type installation for requiing small area,it forms the control system with linear integrated circuit and logical circuit,and drives the contact type voltage regulator to regulating automatically by controlling the servo motor.It adopts high precision servo voltage stabilizing technology which usually is applied to industry for civilian industry product,to conquer the weakness of instantaneous power failure of traditional switching,and consequently realize high precision and uninterrupted appliances work safely and normally and prolong their service lives effectively.it is really the only ideal protection product of household and imported top grade electrical appliances(power supply of 110V)

Application
Household appliance,industrial equipment,medical equipment,office equipment,Test equipment,lighting system,communication system,etc

Model	TSD-3000VA	TSD-5000VA	TSD-8000VA	TSD-10KVA
Package size(cm)	42×30×19.5	46.3×35.5×23	46.3×35.5×23	50×38.5×25
Current for over-current protection	15A	25A	40A	50A
input voltage	140-260V	140-260V	150-250V
output voltage	220V±3% 110V±4%
Frequency	50-60HZ
Delay time	Long Delay 3-7min,Short Delay 3-7 sec
Voltage regulating speed	>7.5V/sec
Voltage for over voltage Protection	245±5V
Ambient Temperature	-5∼+40
Waveform distortion	No additional waveform distortion
Insulating resistance	≥2mΩ
