4CH Channel CCTV mini video Quad Processor Splitter Surveillance Security

4CH Channel CCTV mini vedio Quad Processor Splitter Surveillance Security


Description:
High Resolution Display Quality.
NTSC/PAL.
English menu.
4 image split,Quad image, PIP image, Dual image display.
4 image split is near to realtime display.
Each image quality can independently adjust.
The image can auto switch each other.
2 PIP functions and 1PIP function, each PIP position can be adjustable and display channel number can  be edited.
Dual Split function,each picture position can adjustable and display channel number can be edited.
ZOOM function,A zoomed area can be moved while zoom function is invoked.
High Quality image freeze function,more than one image can freeze in different channel.
Motion detection alarm, image loss alarm.
60 groups, event record.
Each channel number can be edited.
Screen position and the length time of alarm can be adjustable.
Support IR remote controller.

Specification:
Video system                      NTSC/PAL
Image Refurbish                   PAL:25f/s;  NTSC:30f/s
Resolution                        PAL:720*576; NTSC:720*480
Video input                       4 channel video signal input,1Vp-p,75
                                  1 channel recording playback video signal input, 1Vp-p,75

Video output                      1 channel master monitor output,1Vp-p,75
                                  1 channel assistant monitor output, 1Vp-p,75


Auto switch                       0~99 sec
Event record                      60 groups
Alarm out                         No
Language                          English
Video adjust                   Brightness,Contrast,Saturation,Hue,Sharpness can be adjustable                     Power Consumption
4.5W(350mA)
Power Supply                   DC 12V
Operation Environment           -10c~+60c
GW                              0.5Kg
Product Size                   145*100*25mm
Product Box Size inside         162mm*130mm*45mm

Notice:this is Video quad Processor,it can't recorder vedio.

Package:

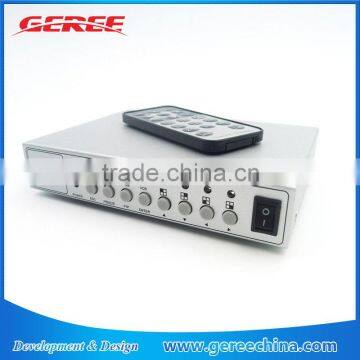

  1X 4CH Color Video quad Processor
  1X Remote Control


1 * English User Manual
