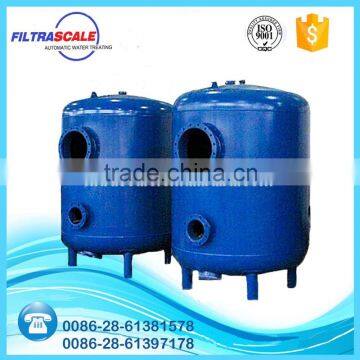

industrial activated carbon water filter sand filter

Model:  FC600LV                                                                                Color: blue

Tank size: 48inch                                                                             Filtration area: 1.13m2

Flow range: 5-85m3/h                                                                         Media Required:  544kg

Tank weight: 181kg                                                                             Inlet/outlet:parallel

Control voltage: 380V, 3 phase, 0.5HP

Clean screen pressure loss:0.1bar(1.45psi)

Device interface:quick coupling connectors/flanged/female threaded

housing:carbon steel

Accuracy(um):50-3000um

Min. working pressure:1bar(14.5psi)

Max. working pressure:up to 10bar(145psi), 16bar(232psi) optional

Max. water temperature:65℃(℉), 95℃(203℉) optional

Model Specifications

Applications

The Epoxy Coated Steel Media Filters have been designed to provide high quality filtration solutions for water

containing significant levels of organic material and algae contamination. The high quality and efficient operation

 of the filtration and backwash mechanisms ensure consistent water supply for the long term.

Components

The filter body is made of epoxycoated carbon steel. The media for the filters should be in a layer of precisely 400 mm depth, from the bottom up

 to the “black line” on the yellow sticker.

Operating principle

Water enters the filter via the inlet and spreads equally on the media. Dirt particles and organic materials are

 trapped on the media surface. The water that passes through, and flows out via the filter elements will be free

 from dirt. The cleaning backwash process is done by shutting the inlet of the filter with the 3-way backwash

valve and open the drainage.

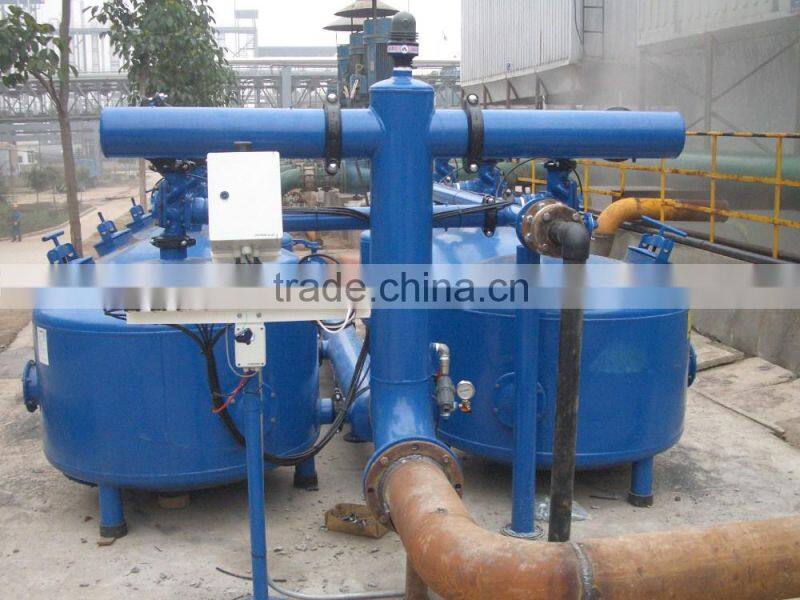

useing case

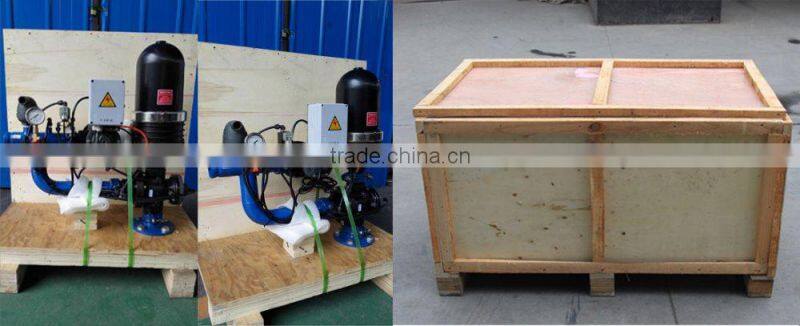

According to your requirements we can transport the products to our customers by air, sea , land transportation and ect.

Our advantage:

1,We are the high-tech enterprises with independent production address, and complete product line;

our products have a higher visibility and good reputation in the domestic market and national market ,

2,we have  advanced and stable technical process, many components are made by imported raw materials, the surface of the filter adopt the advanced technology of the lacquer that bake;

3,There are more than 50 items of China national technology patent and 2 patents of invention in water       treatment;

4,Long-term cooperation with many famous enterprises and research institutions, is committed to research development and production, Our product have been used in the area of steel mills,     agricultural irrigation, municipal industry, etc.

5,Have variety kinds of special product that apply to multiple areas, can meet various needs

6,Our scientific research team are leaded by postdoctoral, and have stable and professional after-sales service team to provide long-term effective service for you.

 OEM Service is Acceptable: We can designed & manufacture the products according to your samples

 After Sales Service and Technical Assistance: The company provides after sales service and technical assistance as per the customers requirement and needs;

 We are the high-tech enterprises with more than 50 items of China national technology patent and 2 patents of invention in water treatment;
