H iron Beam Price IPE Lower, Save Cost
USD $380 - $460
/ Ton
5 Tons(Min.Order)
- 5000 Ton / Tons per Month
- TIANJIN XINGANG
- T/T L/C D/P D/A
You May Like
Product Details
| Place of Origin | Tianjin, China | Brand Name | kingston | |
| Model Number | Q235B | Material | Steel |
Product Description
1.Specification
steeI h beam in 12m long q235
| I beams & H beams | |
| size | 100mm*68mm-900mm*300mm |
| Length | 1--12m or as request |
| Equal Angle | Type: 2#-20# |
| Size: 20-200mm | |
| Thickness: 3.0-24mm | |
| Weight: 0.597-71.168kg/m | |
| Unequal Angle | Type: 2.5/1.6-20/12.5 |
| Long Side: 25-200mm | |
| Short Side: 16-125mm | |
| Thickness: 3.0-18mm | |
| Weight: 1.687-43.588kg/m | |
| Standard | ISO 9001-2008 / ISO 630 / JIS / ASTMISO 9001-2008 / ISO 630 / JIS / ASTM / BS1387-1985/ GB/T3091-2001,GB/T13793-92, ISO630/E235B/ JIS G3101/JIS G3131/JIS G3106/ |
| Material | Q195,Q215,Q235B,Q345B, S235JR/S235/S355JR/S355, SS440/SM400A/SM400B |
| Technique | Hot Rolled, casting |
| Surface | Oiled, sand blasting, galvanizing, painting,cutting as your request. |
| Packing | 1.Water-proof plastic cloth, |
| 2.Woven bags, | |
| 3.PVC package, | |
| 4.Steel strips in bundles | |
| 5.As your requirment | |
| Applicaiton | Building structure and engineering structure, such as the beam, Bridges, transmission tower, lifting transportation machinery, ship, industrial furnace, reaction tower, container frame and warehouse |
| Payment&Trade Terms | 1.Payment : T/T,L/C, D/P, Western union |
| 2.Trade Terms:FOB/CFR/CIF | |
| 3.Minimum quantity of order : 5 MT (5,000KGS) | |
| Delivery Time | 1.Usually,within10-20days after receiving deposit or LC. |
| 2.According to the order quantity | |
2. products

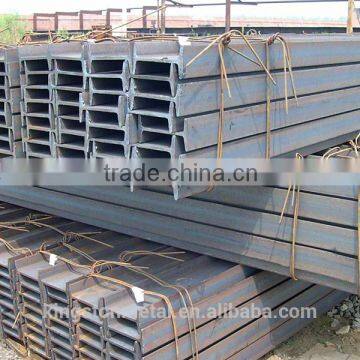

STEEL H BEAM
| Size | H(mm) | Tolerance | B(mm) | Tolerance | Thickness | Tolerance | Weight |
| (mm) | (mm) | (mm) | (mm) | (kg/m) | |||
| 8# | 80 | ±2.0 | 50 | ±2.0 | 4.5 | ±0.5 | 7.52 |
| 10# | 100 | ±2.0 | 68 | ±2.0 | 4.5 | ±0.5 | 11.261 |
| 12# | 120 | ±2.0 | 74 | ±2.0 | 5 | ±0.5 | 13.987 |
| 14# | 140 | ±2.0 | 80 | ±2.0 | 5.5 | ±0.5 | 16.89 |
| 16# | 160 | ±2.0 | 88 | ±2.5 | 6 | ±0.5 | 20.513 |
| 18# | 180 | ±2.0 | 94 | ±2.5 | 6.5 | ±0.5 | 24.143 |
| 20A | 200 | ±3.0 | 100 | ±3.0 | 7 | ±0.7 | 27.929 |
| 20B | 200 | ±3.0 | 102 | ±3.0 | 9 | ±0.7 | 31.069 |
| 22A | 220 | ±3.0 | 110 | ±3.0 | 7.5 | ±0.7 | 33.07 |
| 22B | 220 | ±3.0 | 112 | ±3.0 | 9.5 | ±0.7 | 36.524 |
| 25A | 250 | ±3.0 | 116 | ±3.0 | 8 | ±0.7 | 38.05 |
| 25B | 250 | ±3.0 | 118 | ±3.0 | 10 | ±0.7 | 42.03 |
| 28A | 280 | ±3.0 | 122 | ±3.0 | 8.5 | ±0.7 | 43.492 |
| 28B | 280 | ±3.0 | 124 | ±3.0 | 10.5 | ±0.7 | 47.888 |
| 30A | 300 | ±3.0 | 126 | ±3.0 | 9 | ±0.7 | 48.084 |
| 30B | 300 | ±3.0 | 128 | ±3.0 | 11 | ±0.7 | 52.794 |
IPE BEAMS
| Size | Depth xFlange width | Web Thickenss | Flange Thickness | Weight |
| (mm) | (mm) | (mm) | (kg/m) | |
| IPE100 | 100x55 | 4.1 | 5.7 | 8.1 |
| IPE120 | 120x64 | 4.4 | 6.3 | 10.4 |
| IPE140 | 140x73 | 4.7 | 6.9 | 12.9 |
| IPE160 | 160x82 | 5 | 7.4 | 15.8 |
| IPE180 | 180x91 | 5.5 | 8 | 18.8 |
| IPE200 | 200x100 | 5.6 | 8.5 | 22.4 |
| IPE220 | 220x110 | 5.9 | 9.2 | 36.2 |
| IPE240 | 240x120 | 6.2 | 9.8 | 30.7 |
| IPE270 | 270x135 | 6.6 | 10.2 | 36.1 |
IPE AA BEAMS
| Size | Depth xFlange width | Web Thickenss | Flange Thickness | Weight |
| (mm) | (mm) | (mm) | (kg/m) | |
| IPEAA80 | 80x46 | 3.2 | 4.2 | 4.95 |
| IPEAA100 | 100x55 | 3.6 | 4.5 | 6.72 |
| IPEAA120 | 120x64 | 3.6 | 4.8 | 8.36 |
| IPEAA140 | 140x73 | 3.8 | 5.2 | 10.05 |
| IPEAA160 | 160x82 | 4 | 5.6 | 12.31 |
IPE AAAA
| Designation | H×B | Tw | Tf | Weight (kg/m) |
| IPE 100 AAAA | 95x55 | 2.9 | 3.2 | 5.2 |
| IPE 120 AAAA | 113.8x64 | 2.9 | 3.3 | 5.8 |
| IPE 140 AAAA | 134x73 | 3.2 | 4.2 | 8.28 |
| IPE 160 AAAA | 165x82 | 3.7 | 5.3 | 11.7 |
| IPE 180 AAAA | 172x91 | 3.75 | 4.7 | 12.55 |
| IPE 200 AAAA | 195.5x99.5 | 3.75 | 6.3 | 15.5 |
| IPE 220 AAAA | 213x110 | 4 | 6.3 | 19.75 |
| IPE 240 AAAA | 235.1x119.5 | 4 | 6.9 | 22.85 |
3. Packing into container
