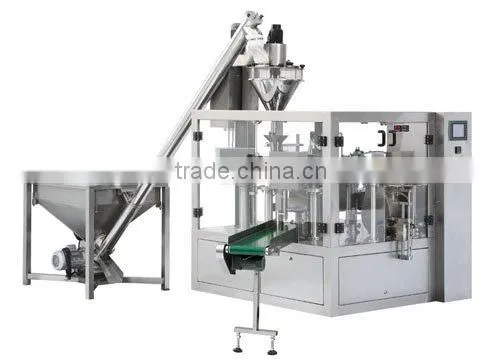

PMR6/8-200F Rotary pouch fill and seal production line for powder

Specifications

Rotary pouch fill and seal production line for powder
enegry save and safety
filling materials as glutamate,
milk powder,

Rotary pouch fill and seal production line for powder



Feature

High quality and performance

Good stable and also good machine exterior

Own an extensive range in filling productions

Easy operate by touch-sensitive screen, PLC and electric control system

Friendly man-machine interface

Adjustable speed controlled by frequency conversion within the range

Volume changed easily by adjusting handle in the auger filler

Prefect safety system

Good safety secure and so on



SPECIFICATION & PARAMETER



PACKAGING PROCESS for MR6-200

Station 1

Bag feeding

Feed many pouches or bags in the bag magazine, our main bag magazine can move up and down, you can feed bags very easily when it moved down, and when it moved up, there are a mechanical arm with two vacuum caps will take bag up and then transmit it to the mechanical gripper on the rotary table.

Station 2

Date Printing (option)

Station 3

Opening

To open stand pouches from top and bottom with two sets vacuum caps.

Station 4

Filling

Measured its weight or volume by scales.

There are an opening detection device insert into the open bag or pouch to expanding it and detect if it is open or not.No open no filling no sealing



Station 5

Sealing

To seal the pouch or bag mouth with a couple of heat sealing air bar, the sealing pattern you can option, net or straight lines



Station 6

Forming and output

To make the sealing stable and preventing from wrinkling with a couple of cold press, then output the finished production automatically.

PACKAGING PROCESS for MR8-200

Station 1

Bag feeding

Feed many pouches or bags in the bag magazine, our main bag magazine can move up and down, you can feed bags very easily when it moved down, and when it moved up, there are a mechanical arm with two vacuum caps will take bag up and then transmit it to the mechanical gripper on the rotary table.

Station 2

Date Printing (option)

Station 3



Opening

To open stand (flat) pouches from top and bottom with two sets vacuum caps.

Station 4

Filling 1

Measured its volume by MRFJ-2000, its volume can be adjusted by a handle and the cylinder. There are an opening detection device insert into the open bag or pouch to expanding it and detect if it is open or not. No open no filling no sealing

Station 5

Filling 2

Station 6

Sealing 1

To seal the pouch or bag mouth with a couple of heat sealing air bar, the sealing pattern you can option, net or straight lines

Station 7

Sealing 2

Seal the second time to make the sealing more perfectly.



Station 8

Forming and output

To make the sealing stable and preventing from wrinkling with a couple of cold press, then output the finished production automatically.



Safety

No bag no filling- no sealing, machine alarm

Bag opening miss- no filling-no sealing, machine alarm

Machine stop or alarm when the air pressure is abnormal

Error position display at the control panel

Control panel locate on the right side top of the machine

Outside of the machine and all the parts which touch production all made by stainless steel.

There are several safety doors made by aluminum Profile Frame.

Machine surface can be wash by water and brush by cloth.



Standard Accessories

1. Hot foil date coder

2. PLC controller

3. Pouch open guide with open detector

4. Dosing chute but exclude filling machine

5. Pneumatic cylinders

6. Temperature controller

7. Pneumatic valves

8. Vacuum pump

9. Frequency converter

10. Discharge conveyor
