Cost Of Plastic Recycling Machine

Specifications

1.type:Cost of Plastic Recycling Machine
2.capacity:500kg/h
3.power:90kw
4.CE certification
5.low cost

  Waste Plastic Recycling Machine

  Features:

1) Environmentally friendly composite plastic-cellulose fiber materials



 2) The knievs can be shaped using carpentry and construction tools



3) Applications: Indoor decoration film, packing film, pallet making production, agricultural film etc.



 4) Capacity: 300-1000kg/h



5) Use: Clean PE PP film, dirty PP PE film, PP PE film with oil.



We can design a complete films washing line according to your request.





Plastic Recycling Machine --machine list:



1. Belt conveyor: Convey material to next process.



2. Crusher: Crush the materials to flakes of 15mm (two series: one for PET, one for PP/PE)



3. Friction washer: Surface clean the materials (two series: one for PET, one for PP/PE), and transport material to next washing equipment.



4. Float Washing tank: For separation of the flakes with a specific density of <1g/cm^3 from >1g/cm^3 or in contrast to separate the flakes with a specific of > 1g/cm^3 form <1g/cm^3 (PET >1g/cm^3 and PP/PE <1g/cm^3)





5. Screw feeder: transport material and as well as for rub them for surface cleaning.



6. Dewatering machine: for mechanical surface drying of the material flakes with rotating roller (two series: one for PET, one for PP/PE)



7. Air cyclone drying system: Using stainless steel “U” type pipeline and cyclone silo to dry the material to the necessary residual level for downstream material processing.



8. Cyclone silo: Storage for final products.

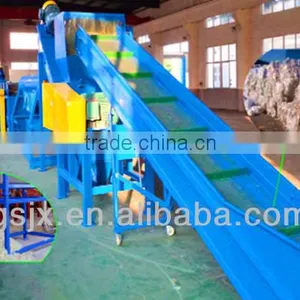

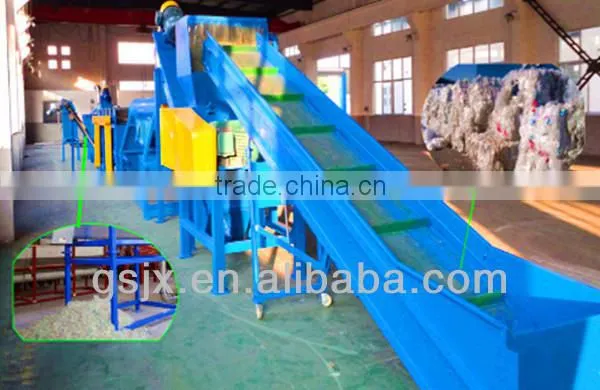

waste  Plastic Recycling Machine Machine picture:



plastic recycling machine detail information:

2, installed power: 128 kw;

3, equipment noise: 1 meter≤ 80dB; 5  meters≤ 75dB;

4, water consumption for recyling 1T waste material: 1m³ (circulating water);

5, oil burning boiler steam volume: 300kg/h  ; steam pressure 0.7MPa; vapor temperature: 170° C;

average oil consumption per hour: 15-25L;



If you are interested in our plastic recycling machine,please feel free to contact us.

Thanks and best regards.

Amy Su
