Specifications

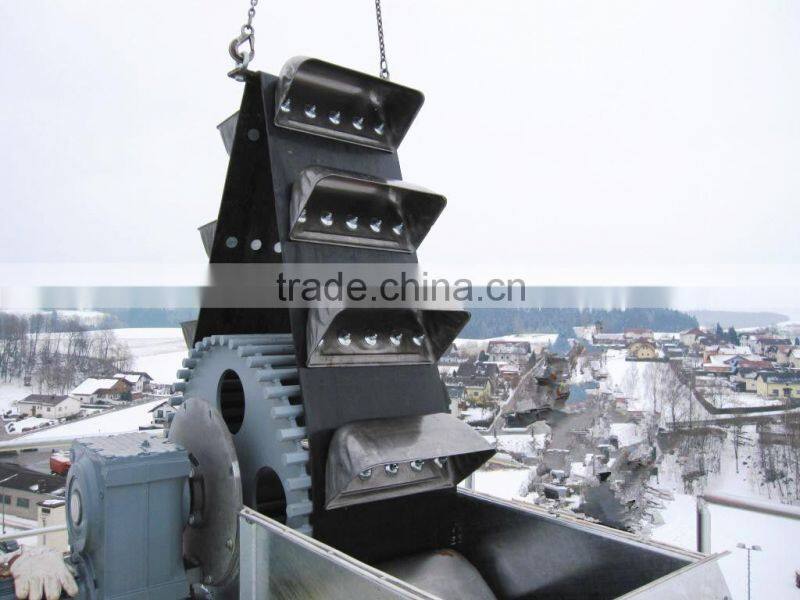

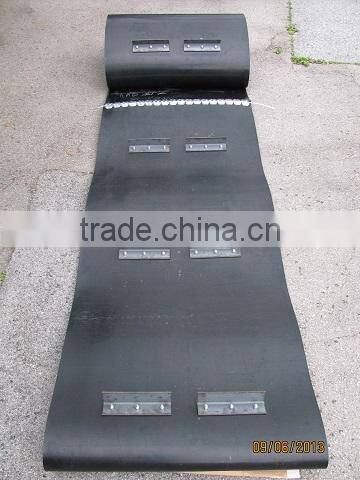

Elevator Conveyor Belt is the best solution from the technical and cost-efficiency point of view.Elevator conveyor belt
Advantage:
Suitable for conveying material vertically
High working tensions
Convenient maintenance
High bucket attachment values
Great conveying capacity
Steady running
Application:
Cement, Concrete Plants,
Asphalt Mixing Plants
Sand, Gravel and Stone Industry
Sugar Refineries, Salt Mines, Potatoes and Starch Factories
Dock, Ship Loading and Unloading
Heating Stations, Power Stations, Garbage Incinerating Plants
Recycling, Compost, Mineral Processing Plant
Foundries
Specifications:
Standards | Cover Rubber | Adhesion | ||||
Tensile Strength | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply | |
DIN 22102 | Mpa | % | mm3 | N/mm (≤1.5mm) | N/mm (>1.5mm) | N/mm |
DIN 22102-Z | 15 | 350 | 250 | 3.5 | 4.5 | 5 |
DIN 22102-W | 18 | 400 | 90 | 3.5 | 4.5 | 5 |
DIN 22102-Y | 20 | 400 | 150 | 3.5 | 4.5 | 5 |
DIN 22102-X | 25 | 450 | 120 | 3.5 | 4.5 | 5 |
Standards | Cover Rubber | Adhesion | ||||
Tensile Strength | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply | |
AS 1332 | Mpa | % | mm3 | N/mm (≤1.9mm) | N/mm (>1.9mm) | N/mm |
AS 1332-N17 | 17 | 400 | 200 | 4 | 4.8 | 6 |
AS 1332-M24 | 24 | 450 | 125 | 4 | 4.8 | 6 |
Standards | Cover Rubber | Adhesion | ||||
Tensile Strength | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply | |
RMA | Mpa | % | mm3 | N/mm (≤1.6mm) | N/mm (>1.6mm) | N/mm |
RMA-I | 17 | 400 | 200 | 3 | 4.4 | 4 |
RMA-II | 14 | 400 | 250 | 3 | 4.4 | 4 |
For more details, Pls feel free to contact us.
