AC Drive Servo Motor 200V 0.4-5.5kw

Shenzhen Xintaichuang Motor Co., Ltd.
AC Drive Servo Motor 200V 0.4-5.5kw thumbnail-1
AC Drive Servo Motor 200V 0.4-5.5kw photo-1
US$ 10 - 99 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Tesech
Model Number:
80 110 130 150
Type:
Servo Motor
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Tesech
Model Number 80 110 130 150
Type Servo Motor
Frequency 50/60HZ
Output Power 400W-5.5KW
Protect Feature Totally Enclosed
Phase Three-phase
Certification CCC, CE
AC Voltage 208-230 / 240 V
Place of Origin Guangdong, China
Efficiency IE 1

Specifications

AC Drive Servo Motors
1 AC Drive IP54
2 Frame80 90 110 130 150etc
4 HP:400W-5.5KW
5 2000RPM-3000RPM

 AC  Drive Servo Motors



1.0Features
·By using of DSP (digital signal processor) chip;
·Communication with RS485;
·Wide velocity ratio, constant torsion, speed regulation ratio: 1: 5000;
·High speed, high precision, max speed is up to3000rpm, positioning accuracy: 1/10000turn;
·Concise appearance, compact structure;
·Simple to operate, pilot run, surveillance and parameter setting can be handled conveniently just by 4 keys.
Applications
·CNC Machine: milling machine,engraving machine,spring machine,electric spark,linear cutting etc.
·Electronic Equipment:

Winding machine, wire stripping machine, aluminum battery production equipment,

Fixed-length cutting machine, paper towel machine

dispensing machine

ceramic quipment etc.
·Packaging Equipment: filling machine,,diaper producing equipment etc.
·Textile Equipment: flat machine,socks-knitter,curling machine,embroidery machine,spinning machine,knitting machine etc.
·Printing Equipment: screen printer,overprinter,pad printer etc.
Specifications
Driver Modle
SDA06-MF20
SDA06-MG30
Power Supply
Three-phase of Single-phase
Three-phase
AC220V (-15%~+10%) 50~60Hz
Control System
Use digital AC sine-wave control mode and optimization PID arithmetic to acomplish PWM control
Feedback Signal
Increment encoder 2500P/R with U,V,W signal(Standard)
Position Ouput Signal
Can set multiplying factor of output pulse of output electronic gear, and output mode of Z-phase open collector
Protective Functions
Overcurrent, short circuit, overload, main curcuit overvoltage/under-voltage, regenerative fault, encoder fault, overspeed, and so on
Control Mode
Position control,Speed control,Test run,JOG run
Dynamic brake
Built-in (60W, 40Ω)
Characteristic
Speed frequency
200Hz or more
Speed fluctuation ratio
<0.03 (load0~100%) ; <±0.02 (power-15~+10%) (numerical value correspond to rated speed)
Speed range ratio
1:5000
Pulse frequency
≤500kHz
Input Control Signal
1Servo-on,2Alarm reset,3Forward rotation torque limit,4Reverse rotation torque limit,5Error counter clear/internal speed selection1,6Pulse command inhibit/speed selection2,7Multi-function input port1,8Multi-function input end2
Output Control Signal
Servo ready,Servo alarm,Position/speed reached
Position Control
Command pulse type
sign+pulse,CCW+CW pulse,A+B pulse
Electronic gear
1~32767/1~32767
Feedback pulse
10000pulse/rev
Speed Control
Speed command/4 internal speed command
Acceleration Control
Parameter setting  1~10000ms/1000r/min
Monitor Function
Motor speed, current position, position command, position offset, motor torque, motor current, linear speed, position command pulse frequency, rotor absolute position, input/output signal etc.
Communication
RS485
Operation
6 LED,4 Key stroke
Weight
2kg
Environment
Temperature
Ambient temp: 0~50°C Storage temp: -20~65°C
Humidity
90%or less (non-condensing)
Altitude
≤1000m
Vibration
0.5G or less (4.9m/S2),10~60Hz (no keep running)

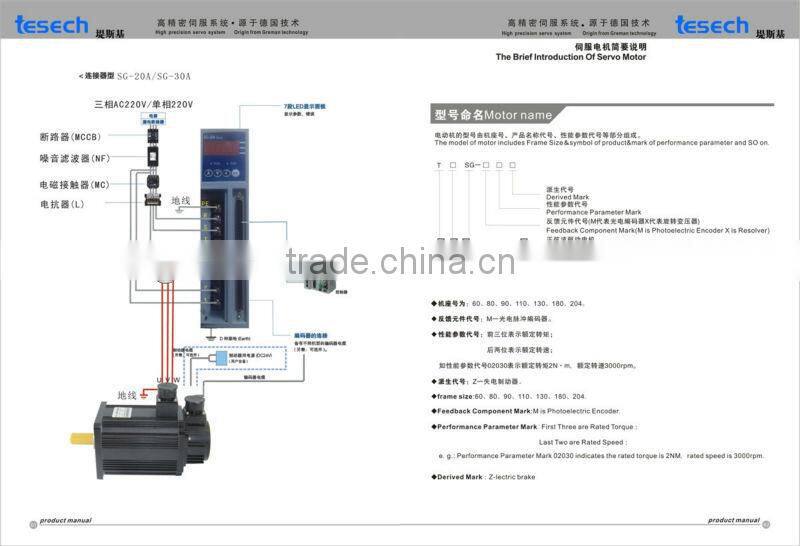

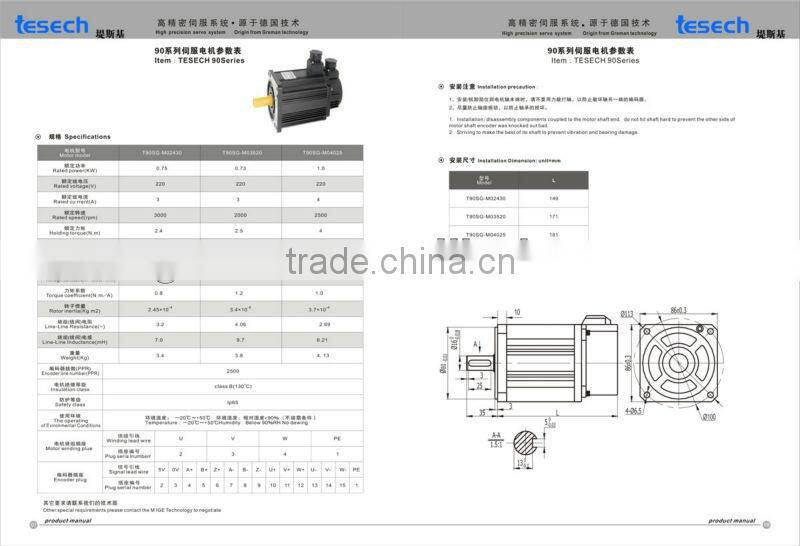

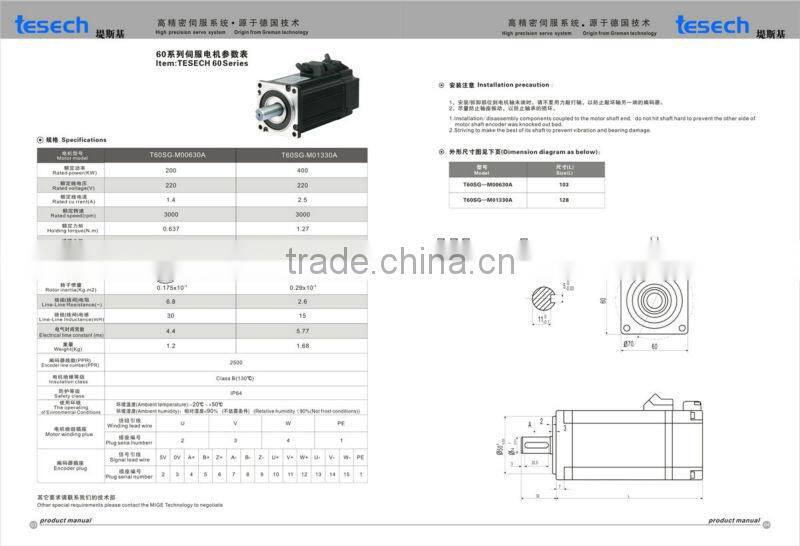

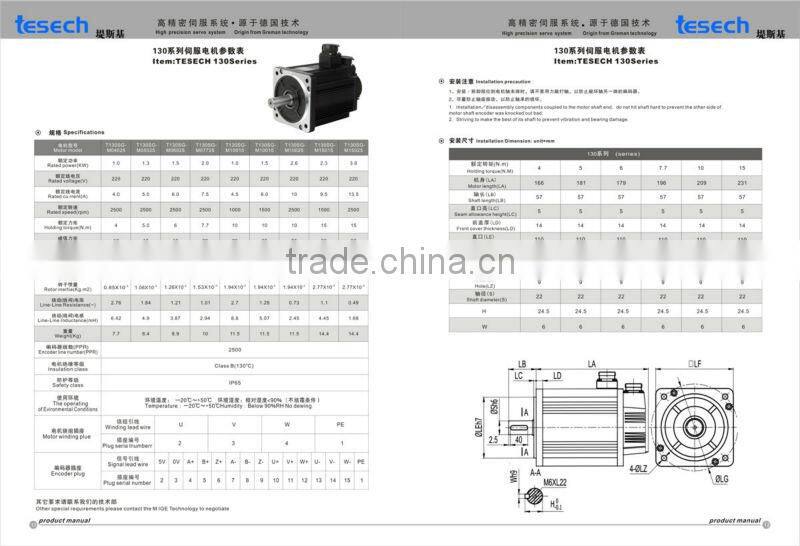

 Date sheet of AC Drive Motor



 AC Drive Servo Motor 200V 0.4-5.5kw

 AC Drive Servo Motor 200V 0.4-5.5kw



 AC Drive Servo Motor 200V 0.4-5.5kw



 AC Drive Servo Motor 200V 0.4-5.5kw

 AC Drive Servo Motor 200V 0.4-5.5kw

 AC Drive Servo Motor 200V 0.4-5.5kw

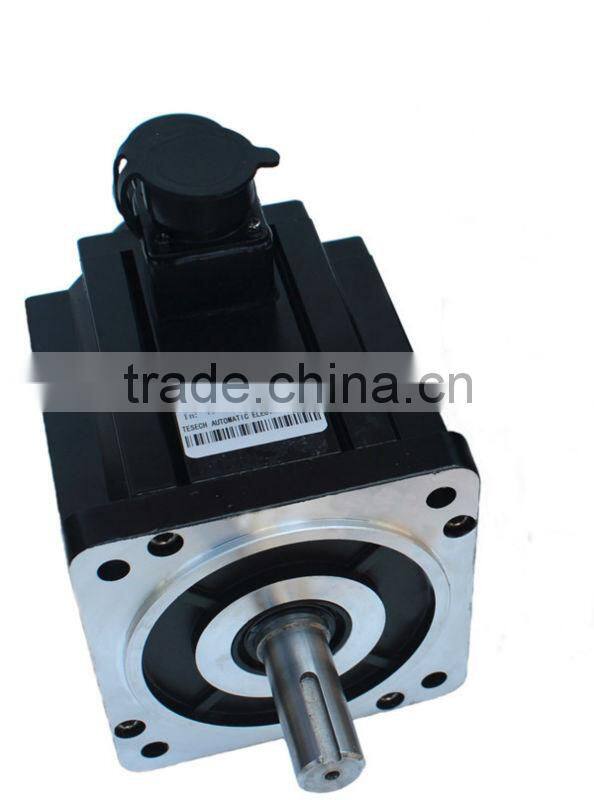

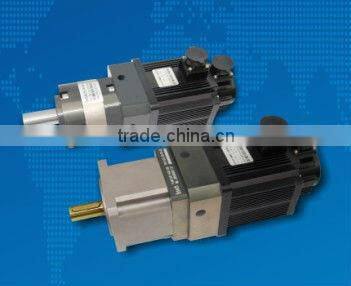

 Servo Motors' pictures

AC Drive Servo Motor 200V 0.4-5.5kw AC Drive Servo Motor 200V 0.4-5.5kw
