230V Dual Joystick-control for Crane

230V Dual Joystick-control for Crane photo-1
230V Dual Joystick-control for Crane photo-2
230V Dual Joystick-control for Crane photo-3
US$ 500 - 1,200 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Electronic
Model Number:
F24-60
Use:
Universal
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhengzhou Shanghai Beijing etc
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Electronic
Model Number F24-60
Use Universal
Place of Origin Henan, China

230V dual  joystick-control for crane





Application for joystick-control for crane



Lifting equipment,construction machinery,cargo loading/unloading machines.

Water supply system, data transmission, the iron-smelting and steel making.

Bridge equipment, railroad equipment and other equipment and sites which can be worked by radio controls.



230V dual joystick-control for crane

Introduction:




Standard configuration:



  • One transmitter ;
  • One receiver;
  • One 1m cable connect with receiver
  • Operation and Maintenance manual
230V dual joystick-control for crane

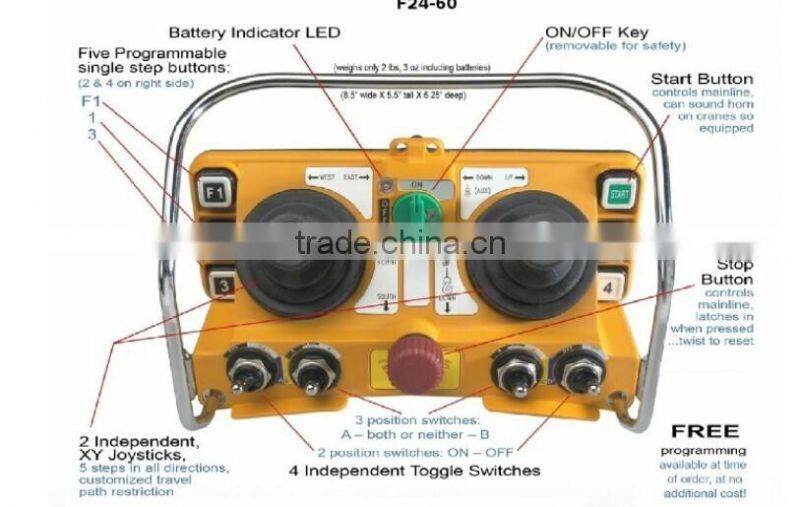

F24-60 launcher details:

230V dual joystick-control for crane

230V dual joystick-control for crane

Specification:

ModelF24-60-TX-V-(E)
TX SizeAbout 21.5x10.7x9.6cm
TX WeightAbout 1137g
Housing Materail Glass fiber-reinforced nylon-6
Protection DegreeIP65
Temperature Rating -35°C ~ +85°C
TX power SupplyFour 1.5 volts Batteries(AA Size)
Number of buttons5 single speed buttons,1 START button
Button MarkingEnglish + number
Joystick Two 5-steps Joysticks
switch4 selector switch
I.D.Code4.3 billion
Voltage Warning

TX Red LED will flash slowly

when the volts under 4.8V

Operating Frequency310.0325-331.165MHz
Channel Spacing0.2675MHz
Channel 80CH
RF Power≤12DBm
Fault DetectionTX Red LED is flashing quickly:
1.Not in the correct way to start;
2.One of the pushbutton is jammed.
TX LED will flash slowly:
1.Please change two new batteries



F24-60 Receiver:

230V dual joystick-control for crane

RX ModelF24-60-RX-V-(E)
RX Size36x24x7.7cm
RX Weightabout2478g
Protection DegreeIP65
Housing Materialglass fiber-reinforced nylon-6
connection diagramenglish
Temperature Rating -35°C ~ +85°℃
Power Supply

AC380V,AC36V,AC220V,AC110V,AC48V,AC24V,

AC12V/DC12V,AC380V/AC220V(50-60Hz)

Relays

Max 40 Relays control functions(setted by programming tool),

1 relay control EMS

Output Relays5Amp Omniseal Relays(AC250V/10A Relays ,10Amp fuse)
I.D.Code4.3 billion
Operating Frequency310.0325-331.165MHz
Channel Spacing0.2675MHz
Channel 80CH
Sensitivity≥-110DBm
InterfaceCable output



Feature:

  •  Durable nylon-fiber housing for extra shock resistance..
  •  Fully programmable relay configuration with maximum 16
  •  Rrelays output per command.
  •  Operating range up to 100 meters
  •  Pre-wiring standard cable making installation quick and easy.
  •  Economic efficiency, ease of operation.
  •  3 stages LED battery power indicator.
  •  Feature acceleration delay time control (smooth moving for
       multiple speeds cranes)



F24-60 joystick-control for crane packing & shipping:

1 set per box, 6pcs per carton:
230V dual joystick-control for crane

Shippment:
2-7 working days after receiving your payment.
 230V dual joystick-control for crane

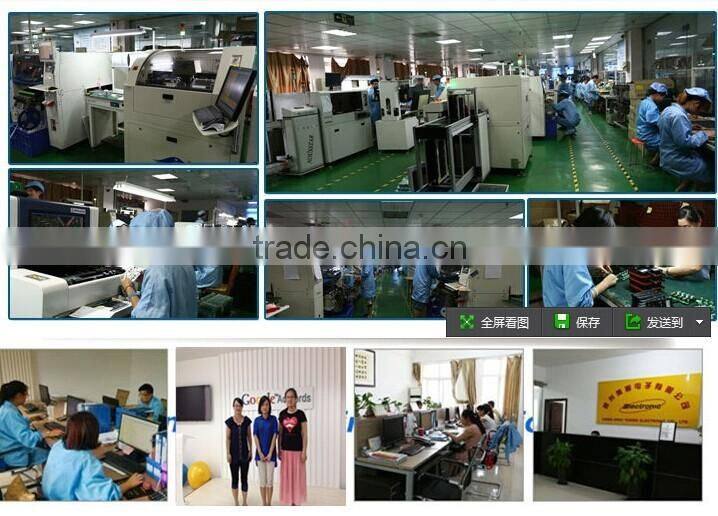

Company Information



Henan Yuding Company is the professional wireless remote controller manufacturer in China . We mainly Design, Manufacture, Installation, Repair , Maintenance, Trade and Export all kinds Electric Hoists controller, Overhead Cranes controller, Gantry Cranes controller, Jib Cranes,Tower Crane controller, Scissor Lift controller , etc.



Our main products is :F21 Series radio remote controls ,F23 series radio remote controls ,F24-60 joystick-control for crane


230V dual joystick-control for crane



Our Services



♦ Your inquiry will be replied within 24hours



♦ If any problem during installation or operation,please contact us directly,we will provide our professional instruction.



♦ OEM and sample orders acceptable, provide customized products for our customers.



♦ One year warranty.



Why Choose us ?



1. More than 10 years researching and exporting experience in Radio Remote Control industry.



2.More than 20 people R&D working team, have the ability to research and develop new product independently.



3. Have 15 production lines. we also have many production machines such Printing circuit board machine, SMT machine, automatic wave soldering machine, automatic soldering robot, etc. also have many testing machine.



4. Well and high quality control, all working process according to ISO9001:2008.



5. CE, FCC & ISO certificates.



6. OEM acceptable



FAQ



1. Q:What is your MOQ?



 1pc as sample for trial order is available.



2. Q:Is there any warranty?



    A: F24-60 Joystick control  enjoy 1 year warranty, also. technical support and after-service for our product can offer to you at any time after you bought.



3. Q:Will you provide the after-sales?



    A:Of course

       1)All products have been test for 12hours before packing.

     2)All products have been well packed in our factory, and the second packaging by express service before shipping.

    3)If any problem during operation or installation, please contact us freely, we will solve with professional instruction.



4. Q:Which certificates do your products approve?



A: CE,FCC,ISO, etc



5. Q:What’s the control distance for F21 Series Industrial radio remote controls?



A: Usually 100Mts is ok



6. Q: What's the delivery time?



    A: For sample, within 2 working days.



         For Bulk, 2-7 working days.



7. Q:Are your products cutomized?



A: Yes, including packing, button function, etc
