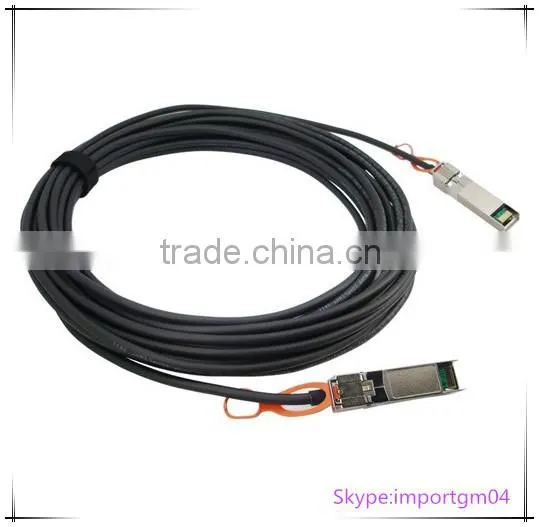

Original Cisco Nexus 7000 Series 10GB Ethernet SFP+ Cable 3 Meter

Specifications

10GBASE-CU SFP+ Cable 3 Meter
1.Original new sealed
2.High quality&Best Price





Features and Benefits





Main features of Cisco 10GBASE SFP+ modules include:





Smallest 10G form factor





Supports 10GBASE Ethernet and OTU2/OTU2e





Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a Cisco switch





Provides flexibility of interface choice





Supports “pay-as-you-populate” model





Supports digital optical monitoring capability





Supports the Cisco quality identification (ID) feature that enables a Cisco switch to identify whether the module is certified and tested by Cisco





Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link





Cisco SFP-10G-SR





The Cisco 10GBASE-SR Module supports a link length of 26m on standard Fiber Distributed Data Interface (FDDI)-grade multimode fiber (MMF). Using 2000MHz*km MMF (OM3), up to 300m link lengths are possible. Using 4700MHz*km MMF (OM4), up to 400m link lengths are possible.





Cisco SFP-10G-SR-X



The Cisco SFP-10G-SR-X is a multirate* 10GBASE-SR, 10GBASE-SW and OTU2/OTU2e module for extended operating temperature range. It supports a link length of 26m on standard Fiber Distributed Data Interface (FDDI)-grade multimode fiber (MMF). Using 2000MHz*km MMF (OM3), up to 300m link lengths are possible. Using 4700MHz*km MMF (OM4), up to 400m link lengths are possible.







Cisco SFP-10G-LRM



The Cisco 10GBASE-LRM Module supports link lengths of 220m on standard Fiber Distributed Data Interface (FDDI) grade multimode fiber (MMF). To ensure that specifications are met over FDDI-grade, OM1 and OM2 fibers, the transmitter should be coupled through a mode conditioning patch cord. No mode conditioning patch cord is required for applications over OM3 or OM4.



The Cisco 10GBASE-LRM Module also supports link lengths of 300m on standard single-mode fiber (SMF, G.652).





Cisco FET-10G



The Cisco FET-10G Fabric Extender Transceiver support link lengths up to 100m on laser-optimized OM3 or OM4 multimode fiber. It is supported on fabric links only from a Nexus 2000 to a Cisco parent switch. Note this product is not orderable individually.





Cisco SFP-10G-LR



The Cisco 10GBASE-LR Module supports a link length of 10 kilometers on standard single-mode fiber (SMF, G.652).





Cisco SFP-10G-LR-X



The Cisco SFP-10G-LR-X is a multirate 10GBASE-LR, 10GBASE-LW and OTU2/OTU2e module for extended operating temperature range. It supports a link length of 10 kilometers on standard single-mode fiber (SMF, G.652).





Cisco SFP-10G-ER



The Cisco 10GBASE-ER Module supports a link length of up to 40 kilometers on standard single-mode fiber (SMF,G.652).





Cisco SFP-10G-ZR



The Cisco SFP-10G-ZR is a multirate 10GBASE-ZR, 10GBASE-ZW and OTU2/OTU2e module. It supports link lengths of up to about 80 kilometers on standard single-mode fiber (SMF, G.652). This interface is not specified as part of the 10 Gigabit Ethernet standard and is instead built according to Cisco specifications.





Cisco Nexus 7000 Series Common Equipment - SUP1/FAB2 Bundles



N7K-C7009-BUN2	Nexus 7009 Bundle (Chassis,SUP1,(5)FAB2,(2)AC-6KW PSU
N7K-C7009-BUN2-R	Nexus 7009 Bundle (Chassis,(2)SUP1,(5)FAB2,(2)AC-6KW PSU)
N7K-C7010-BUN2	Nexus 7010 Bundle (Chassis,SUP1,(5)FAB2,(2)AC-6KW PSU)
N7K-C7010-BUN2-R	Nexus 7010 Bundle (Chassis,(2)SUP1,(5)FAB2,(3)AC-6KW PSU)
N7K-C7009-BUN2-P1	Nexus 7009 Promo Bundle (Chassis,SUP1,(3)FAB2,(2)AC-6KW PSU



Cisco Nexus 7000 Series Supervisors



N7K-SUP2E=	Nexus 7000 - Supervisor 2 Enhanced, Includes 8GB USB Flash
N7K-SUP1	Nexus 7000 - Supervisor, Includes External 8GB Log Flash
N7K-SUP1=	Nexus 7000 - Supervisor, Includes External 8GB Log Flash
N7K-SUP2	Nexus 7000 - Supervisor 2, Includes External 8GB USB Flash
N7K-SUP2E	Nexus 7000 - Supervisor 2 Enhanced,Includes 8GB USB Flash
N7K-SUP2=	Nexus 7000 - Supervisor 2, Includes External 8GB USB Flash



Cisco Nexus 7000 Series M-Modules



N7K-M108X2-12L	Nexus 7000 - 8 Port 10GbE with XL option (req. X2)
N7K-M108X2-12L=	Nexus 7000 - 8 Port 10GbE with XL option (req. X2)
N7K-M132XP-12L	Nexus 7000 - 32 Port 10GbE with XL Option,  80G Fabric (req.
N7K-M132XP-12L=	Nexus 7000 - 32 Port 10GbE with XL Option,  80G Fabric (req.
N7K-M148GS-11L	Nexus 7000 - 48 Port GE Module with XL Option (req. SFP)
N7K-M148GS-11L=	Nexus 7000 - 48 Port GE Module with XL Option (req. SFP)
N7K-M148GT-11L	Nexus 7000 - 48 Port 10/100/1000 Module with XL option
N7K-M148GT-11L=	Nexus 7000 - 48 Port 10/100/1000 Module with XL option
N7K-M202CF-22L	Nexus 7000 M2-Series 2 Port 100GbE with XL Option (req. CFP)
N7K-M202CF-22L=	Nexus 7000 M2-Series 2 Port 100GbE with XL Option (req. CFP)
N7K-M206FQ-23L	Nexus 7000 M2-Series 6 Port 40GbE with XL Option (req. QSFP)
N7K-M206FQ-23L=	Nexus 7000 M2-Series 6 Port 40GbE with XL Option (req. QSFP)
N7K-M224XP-23L	Nexus 7000 M2-Series 24 Port 10GE with XL Option (req. SFP+)
N7K-M224XP-23L=	Nexus 7000 M2-Series 24 Port 10GE with XL Option (req. SFP+)



Cisco Nexus 7000 Series F-Modules



N7K-F132XP-15	Nexus 7000 - 32 Port 1G/10G Ethernet Module, SFP/SFP+
N7K-F132XP-15=	Nexus 7000 - 32 Port 1G/10G Ethernet Module, SFP/SFP+
N7K-FCOE-F1-BUN=	Nexus 7000 F1 Line Card and FCoE License Bundle
N7K-F248XP-25	Nexus 7000 F2-Series 48 Port 10GbE (req. SFP+)
N7K-F248XP-25=	Nexus 7000 F2-Series 48 Port 10GbE (req. SFP+)
N7K-F248XP-25E	Nexus 7000 F2-Series 48 Port 1/10G (SFP+) Enhanced
N7K-F248XT-25E=	Nexus 7000 F2-Series 48 Port 1/10GBase-T (RJ-45) Enhanced
N7K-F248XT-25E	Nexus 7000 F2-Series 48 Port 1/10GBase-T (RJ-45) Enhanced
N7K-F248XP-25E=	Nexus 7000 F2-Series 48 Port 1/10G (SFP+) Enhanced
N7K-F248XT-25E-P1	Nexus 7000 F2-Series 48 Port 1/10GBase-T (RJ-45) Enhanced
N7K-F248XT-25E-P1=	Nexus 7000 F2-Series 48 Port 1/10GBase-T (RJ-45) Enhanced



  Cisco Nexus 7000 Series Power Supplies



N7K-AC-6.0KW	Nexus 7000 - 6.0KW AC Power Supply Module
N7K-AC-6.0KW=	Nexus 7000 - 6.0KW AC Power Supply Module
N7K-AC-7.5KW-US	Nexus 7000 - 7.5KW AC Power Supply Module US (cable included
N7K-AC-7.5KW-INT	Nexus 7000 - 7.5KW AC Power Supply Module International (cab
N7K-AC-7.5KW-INT=	Nexus 7000 - 7.5KW AC Power Supply Module International (cab
N7K-AC-7.5KW-US=	Nexus 7000 - 7.5KW AC Power Supply Module US (cable included
N7K-DC-6.0KW	Nexus 7000 - 6.0KW DC Power Supply Module (Cables Included)
N7K-DC-6.0KW=	Nexus 7000 - 6.0KW DC Power Supply Module (Cables Included)
N7K-AC-3KW=	Nexus 7000 - 3.0KW AC Power Supply Module (Cable Included)
N7K-AC-3KW	Nexus 7000 - 3.0KW AC Power Supply Module (Cable Included)
N7K-DC-3KW	Nexus 7000 - 3.0KW DC Power Supply Module
N7K-DC-3KW=	Nexus 7000 - 3.0KW DC Power Supply Module





Cisco Nexus 7000 Series 10 Gigabit Ethernet SFP+ Optics

SFP-10G-SR=	10GBASE-SR SFP Module
SFP-10G-SR	10GBASE-SR SFP Module
SFP-10G-LRM	10GBASE-LRM SFP Module
SFP-10G-LRM=	10GBASE-LRM SFP Module
SFP-10G-LR	10GBASE-LR SFP Module
SFP-10G-LR=	10GBASE-LR SFP Module
SFP-10G-ER	10GBASE-ER SFP Module
SFP-10G-ER=	10GBASE-ER SFP Module
SFP-H10GB-CU1M=	10GBASE-CU SFP+ Cable 1 Meter
SFP-H10GB-CU3M	10GBASE-CU SFP+ Cable 3 Meter
SFP-H10GB-CU3M=	10GBASE-CU SFP+ Cable 3 Meter
SFP-H10GB-CU5M=	10GBASE-CU SFP+ Cable 5 Meter
SFP-H10GB-ACU7M	Active Twinax cable assembly, 7m
SFP-H10GB-ACU7M=	Active Twinax cable assembly, 7m
SFP-H10GB-ACU10M	Active Twinax cable assembly, 10m
SFP-H10GB-ACU10M=	Active Twinax cable assembly, 10m
SFP-H10GB-CU1M	10GBASE-CU SFP+ Cable 1 Meter
SFP-H10GB-CU5M	10GBASE-CU SFP+ Cable 5 Meter
