1 Layer Lead Free HAL LED Aluminum Based PCB

Shenzhen Rayming Electronic Co., Ltd.
1 Layer Lead Free HAL LED Aluminum Based PCB thumbnail-1
1 Layer Lead Free HAL LED Aluminum Based PCB thumbnail-2
1 Layer Lead Free HAL LED Aluminum Based PCB thumbnail-3
1 Layer Lead Free HAL LED Aluminum Based PCB thumbnail-4
1 Layer Lead Free HAL LED Aluminum Based PCB thumbnail-5
1 Layer Lead Free HAL LED Aluminum Based PCB thumbnail-6
1 Layer Lead Free HAL LED Aluminum Based PCB photo-1
1 Layer Lead Free HAL LED Aluminum Based PCB photo-2
1 Layer Lead Free HAL LED Aluminum Based PCB photo-3

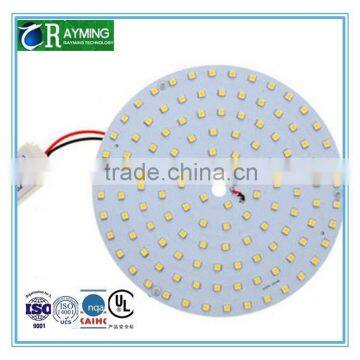

1 Layer Lead Free HAL LED Aluminum Based PCB photo-4
1 Layer Lead Free HAL LED Aluminum Based PCB photo-5

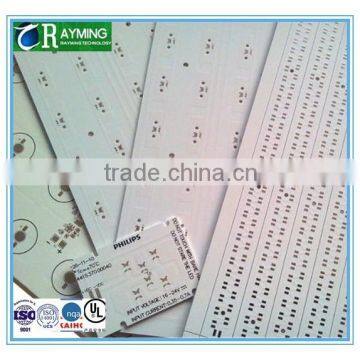

1 Layer Lead Free HAL LED Aluminum Based PCB photo-6
US$ 0.5 - 8 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
RayMing
Model Number:
Metal Core-25
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/HongKong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name RayMing
Model Number Metal Core-25
Base Material Aluminum / Copper Based
Copper Thickness 0.5-4 OZ
Board Thickness 0.5mm- 4.6mm
Min. Hole Size 0.2mm
Min. Line Width 4 mil
Min. Line Spacing 0.1mm
Surface Finishing Lead- free: Lead- free HASL, ENIG Gold; OSP, Immersion silver

Specifications

1.MOQ is 1 PCS.
2.Certification:UL,ISO9001,ISO14001,nqa.
3.aluminum based pcb,big capacity
4.Competitive price,high capacity

1 Layer Lead Free HAL LED Aluminum Based PCB   .

Metal Core PCB



Item

Description



1.Layer

1- 2 Layers



2.Material

Aluminum / Copper Based



Manufacturer

Ximai (China) ; Bergquist (USA)



3.Final Thickness

0.02" - 0.18" (0.5mm- 4.6mm) tg130° - tg170°



4.Surface Treatment

Regular Lead: HASL Lead- free: Lead- free HASL, ENG Gold; OSP, Immersion silver



5.Max/Min Board Size

Min: 0.2"x0.2" Max: 43.3"x19"



6.Min Trace width/Min Clearance

0.5oz: 4/4mil

1oz: 5/5mil

2oz: 5/7mil

3oz: 7/8mil

4oz: 10/10mil



7.Min Hole Ring

0.5oz: 4mil

1oz: 5mil

2oz: 7mil

3oz: 10mil

4oz: 16mil



8.Copper Thickness

0.5oz- 4oz



9.Min Hole size and Tolerance

Min hole: 30mil (Final Thickness 0.5mm- 2.0mm) 45mil (Final Thickness 2.0mm- 4.6mm) Tolerance: PTH±4mil, NPTH±3mil



10.Thickness of Plating Layer

HASL:



Copper Thickness: 20um- 35um

Tin: 5- 20um



Immersion Gold:



Nickel: 100u"- 200 u"

Gold: 2u"- 4u"



Hard Plated Gold:



Nickel: 100u"- 200 u"

Gold: 4u"- 8u"



Golden Finger:



Nickel: 100u"- 200 u"

Gold: 5u"- 15u"



Immersion Silver: 6u"- 12u"



OSP: Film 8u"- 20u"



11.Solder Mask Color

Glossy: Green, Black, Red, Yellow, White, Purple, Blue



Matt: Green, Black



12.Solder Mask Resolution

Solder Mask Thickness:

0.2mil- 1.6mil



Solder Dam:

Green 4mil/Other Color 5mil



Solder Mask Hole Plug Diameter:

10mil- 25mil



13.Silk Screen Color

White, Black



14.Silk Screen Size

Min Width: 5mil; Height: 24mil



15.Testing Voltage

Testing Fixture: 50V- 300V

Flying Probe: 30V- 250V



16.Profile

CNC Tol: ±5mil

V- CUT Tol: ±5mil

Slot Min: 40mil

Angel: 15°, 20°, 30°, 45°, 60°



17.Bow and Twist

≤1%



18.Accept Standard

IPC Class 2; IPC Class 3; ISO9000



PCB or PCBA files requests.

1. Gerber files of the bare PCB board

2. BOM (Bill of material) for assembly

To short the lead time, please kindly advise us

if there is any acceptable components substitution.

3. Testing Guide & Test Fixtures if necessary

4. Programming files & Programming tool if necessary

5. Schematic if necessary.

Why choose us?---Quality is everything!

Our Advantage:

1.Quick and econimic delivery term.

2.Provide PCB & PCBA prototype, and medium&low volumn quick board services.

3.Component purcharsing, SMT&PCBA one-stop source.

4.Two-hours quote response, 24 hours quick-turn produce.

5.FR4 Double-sided and Alum single-sided sample in 48 hours.

Benefits for customer

*- Get a high quality product. *- Get a lower price of product to occupy the market from our online order *- Our one stop service release your energy to focus on design and marketing. *- Get a strategic long term partner.

Our Service:

*- Comprehensive documents audit to prevent mistakes in PCB Gerber and Bom.

*- Suggest best quality replacement with lower price.

*- Engineering support for test and provide suggestions for mass production.

*- Suggest best shipment method.1 Layer Lead Free HAL LED Aluminum Based PCB

Product types

1 Layer Lead Free HAL LED Aluminum Based PCB

Our factory view and corner:

1 Layer Lead Free HAL LED Aluminum Based PCB1 Layer Lead Free HAL LED Aluminum Based PCB

 Comprehensive test machine :

1 Layer Lead Free HAL LED Aluminum Based PCB1 Layer Lead Free HAL LED Aluminum Based PCB1 Layer Lead Free HAL LED Aluminum Based PCB

Certification and main clients:

1 Layer Lead Free HAL LED Aluminum Based PCB1 Layer Lead Free HAL LED Aluminum Based PCB

Payment and Package:

1 Layer Lead Free HAL LED Aluminum Based PCB 1 Layer Lead Free HAL LED Aluminum Based PCB

 Environmental Protection :

1 Layer Lead Free HAL LED Aluminum Based PCB
