Integral Steel manufacturer / Integral Drill Steel Rods H22 / H19

FOB Price

USD $7 - $15 / Piece

10 Pieces(Min.Order)

Supply Ability 6000 Meter / Meters per Month
Port TianJin or Based on Customers
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	MIROC
Model Number	Drill Steel Rods / H22, H19	Type	Drill Bit
Machine Type	Drilling Tool	Certification	API
Material	Carbide	Processing Type	Forging
Use	Ore Mining

Product Description

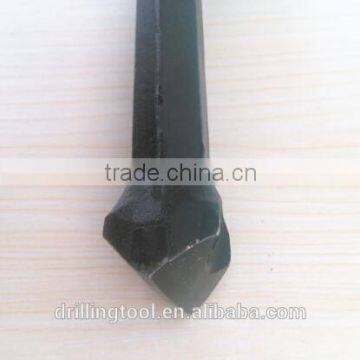

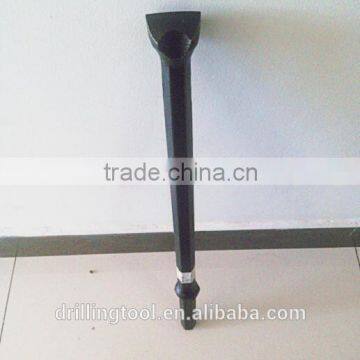

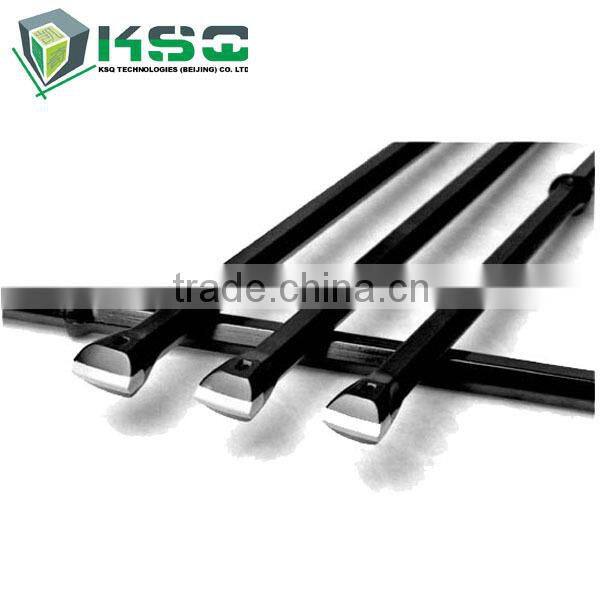

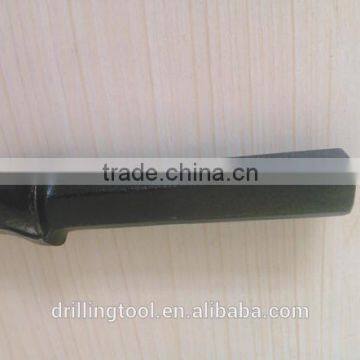

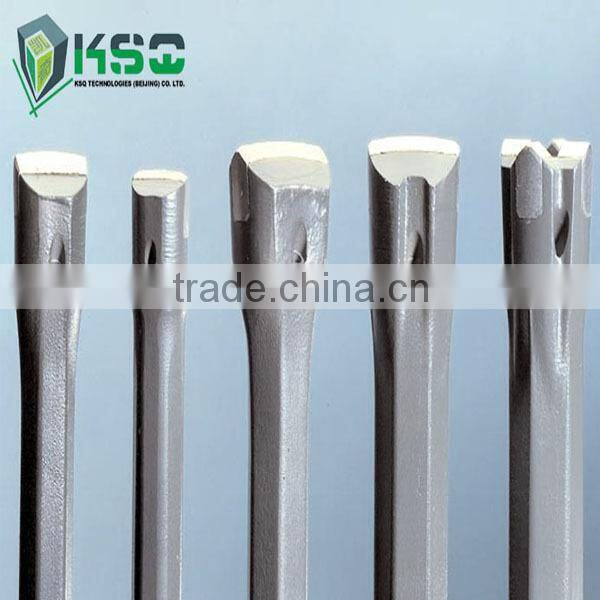

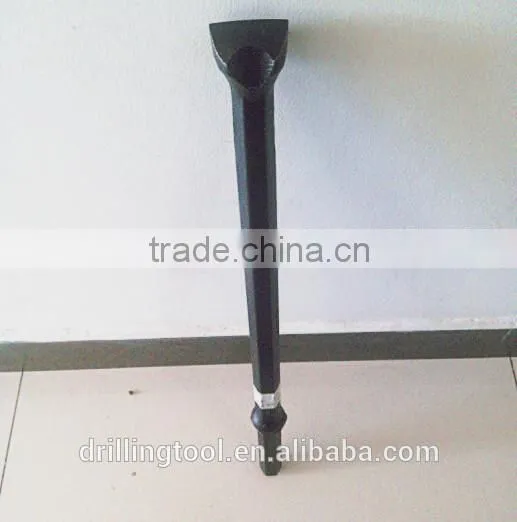

The H19 / H22 Integral drills steels, H19 / H22 x 108 mm shank, are the most common type within the Dimensional Stone Quarrying Industry. The product range includes a Ø26 - 40 mm bit diameters and lengths from 0.4 – 7.2 meters.

• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry

Color: Based on Customer requirements

Material: Tungsten carbide and high strength alloy steel

Processing: CNC milling and proprietary heat treatment process

Specification

Chisel Bit Integral Drill Steel
Shank 19 x 108 mm (3/4” x 4 1/4”)
	Length (mm)	Bit Diameter (mm)	PN.
1	400	29	4148300000
2	500	29	4148300001
3	800	28	4148300002
4	1000	28	4148300003
5	1200	27	4148300004
6	1600	27	4148300005
7	2400	26	4148300006
8	3200	25	4148300007
9	4000	24	4148300008
10	400	24	4148300009
11	800	23	4148300010
12	600	27	4148300011
13	1200	24	4148300012
14	2000	24	4148300013
15	2400	24	4148300014
16	2700	24	4148300015
17	400	35	4148300016
18	800	34	4148300017

Chisel Bit Integral Drill Steel
Shank 22 x 108 mm (7/8” x 4 1/4”)
	Length (mm)	Bit Diameter (mm)	PN.
1	400	24	4148300018
2	400	29	4148300019
3	600	27	4148300020
4	800	23	4148300021
5	800	28	4148300022
6	1200	23	4148300023
7	1600	27	4148300024
8	2000	28	4148300025
9	2400	26	4148300026
10	3200	25	4148300027
