Home > Products > thread Steel Cross Type Bit > Thread Cross Steel Type Bits H25, R32 Tungsten Carbide Cross Bits

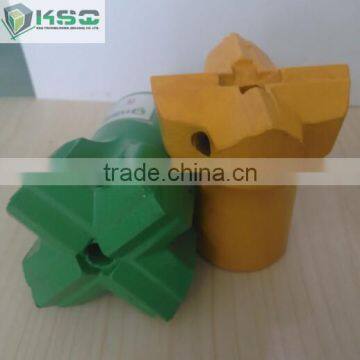

Thread Cross Steel Type Bits H25, R32 Tungsten Carbide Cross Bits
USD $2 - $35
/ Piece
1 Piece(Min.Order)
- 7000 Piece / Pieces per Month
- TianJin Port or Based on Customers
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
R38 X-Type bit 64mm 89mm Mining Tools Thread Cross Steel Type Bits
-
Tungsten Carbide Rock Bit R32 Thread cross type bit
-
Rock Drilling Tools R38 X - Type Bit / Thread Cross Type Bit
-
Mining Drill Spare Parts H25, R25, R28, R32 Chisel Bit / Steel Cross Type Bit
-
Rock Drilling Spare Parts 64mm R32 Thread Cross Button Bit
-
Tungsten Carbide 38mm 51mm H25, R28 Threaded Cross Bits
Product Details
| Place of Origin | Shandong, China | Brand Name | MIROC | |
| Model Number | Threaded Drilling Tool | Type | Other, Drilling Tools | |
| Material | Other, Tungsten Carbide, 45CrNiMoV | Use | Other, Rock drilling |
Product Description
Mainly Products
Thread Drill Bits---Diameter: 20mm to 60mm
Thread Type---R22, R25, R28, R32, R38, T38, T45, T51
Face Shape---Plate, Concave, Convex.
Bit Shank & Coupling sleeve---R22, R25, R28, R32, R38, T38, T45, T51
Drill Rod
Steel Drill Rod---H19/H22, Length: 0.5M to 6.0M.
Thread Rod---R25, R28, R32, R38, T38, T45, T51.
Integral Drill Rod---H19/H22, Diameter---20mm - 42mm.
Description
| R25 Thread cross type bit | |||||
| Diameter (mm) | Buttons and Size (mm) | Flushing Hole | |||
| Front | Side | ||||
| 1 | 33 | 14x8 | 1 | 2 | |
| 2 | 35 | 14x8 | 1 | 2 | |
| 3 | 38 | 14x8 | 1 | 4 | |
| 4 | 41 | 14x8 | 1 | 4 | |
| 5 | 43 | 14x8 | 1 | 4 | |
| 6 | 45 | 14x8 | 1 | 2 | |
| 7 | 51 | 14x8 | 1 | 4 | |
| R28 Thread cross type bit | |||||
| Diameter (mm) | Buttons and Size (mm) | Flushing Hole | |||
| Front | Side | ||||
| 1 | 38 | 14x8 | 1 | 2 | |
| 2 | 41 | 14x8 | 1 | 4 | |
| 3 | 43 | 14x8 | 1 | 4 | |
| 4 | 45 | 14x8 | 1 | 4 | |
| 5 | 51 | 14x8 | 1 | 4 | |
| R32 Thread cross type bit | |||||
| Diameter (mm) | Buttons and Size (mm) | Flushing Hole | |||
| Front | Side | ||||
| 1 | 41 | 16×10 | 1 | 4 | |
| 2 | 43 | 16×10 | 1 | 2 | |
| 3 | 45 | 16×10 | 1 | 4 | |
| 4 | 48 | 16×10 | 1 | 4 | |
| 5 | 51 | 16×10 | 1 | 4 | |
| 6 | 57 | 16×10 | 1 | 4 | |
| 7 | 64 | 18×13 | 1 | 4 | |
| R38 X-Type bit | |||||
| Diameter (mm) | Buttons and Size (mm) | Flushing Hole | |||
| Front | Side | ||||
| 1 | 64 | 25×13 | 1 | 2 | |
| 2 | 76 | 25×13 | 1 | 2 | |
| 3 | 89 | 25×13 | 1 | 2 | |
