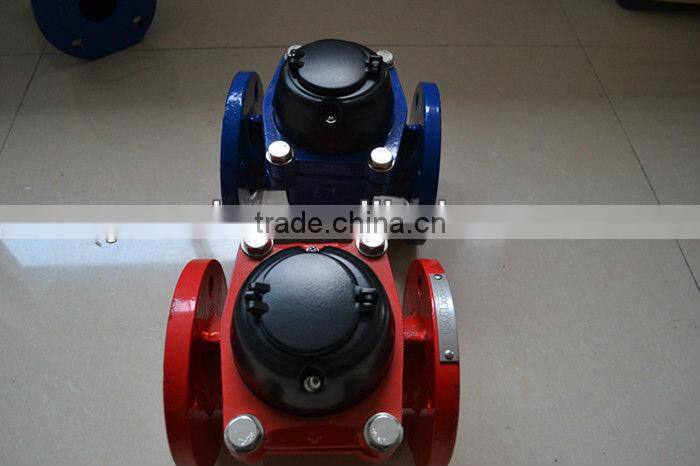

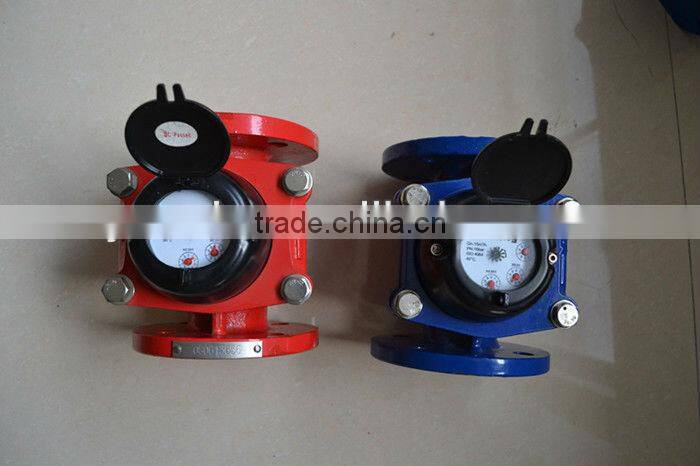

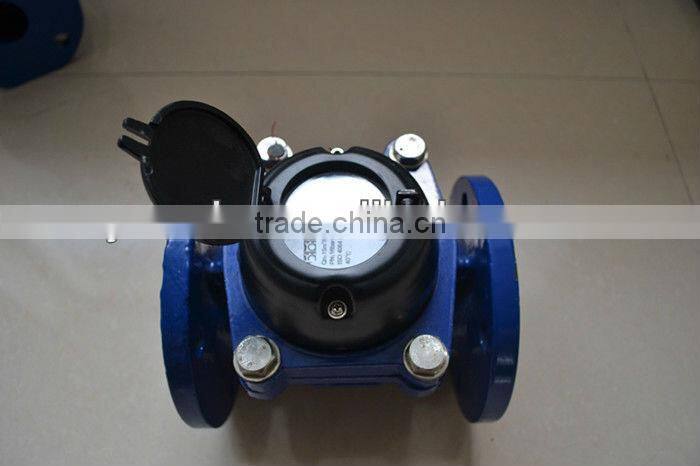

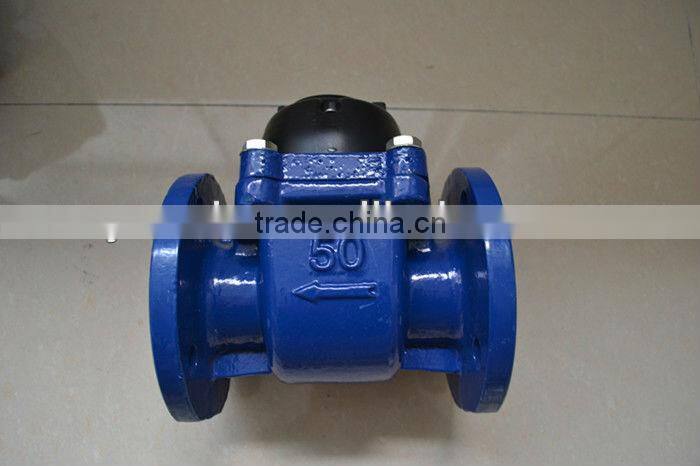

Removable Horizontal Dry Type Woltman Meter LXLC-50E3

Specifications

Specifications

Removable Horizontal Dry Type Woltman Meter

Removable Horizontal Dry Type Woltman Meter

Dry-dial, magnetic drive
Vacuum sealed register, frost resistant, keeps clear reading for long time
Removable measuring unit, easy installation and maintenance
Measuring high flowrate with low head loss
Remote transmission device can be added upon request
Many kinds of sensors, such as Reed Switch, Hall and Weagand can be supplied upon request
Pulse output may be 10l/pulse,100l/pulse,1000l/pulse
The meters conform to ISO4064 Standard Class B
The meter are available with LCD reading register

Working condition:

Water temperature≤50
(Hot water meter≤90)
Water pressure≤1MPa
(PN: 1.6MPa/16bar)

Accuracy:
From minimum flow-rate (qmin) inclusive, to transitional flow-rate (qt), exclusive:±5%
From transitional flow-rate (qt) inclusive, to overload flow-rate (qs),
exclusive:±2%
(Hot water meter:±3%)
