Specifications

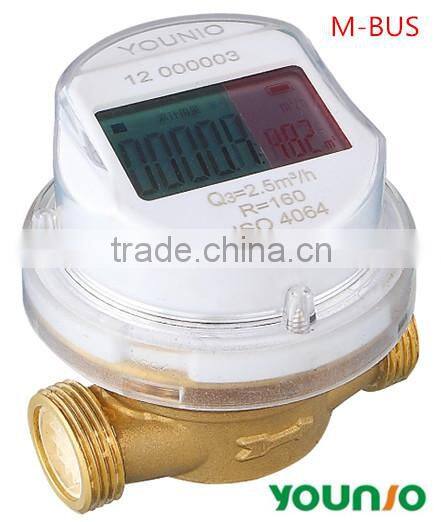

Single jet dry type brass body Class C Smart water meterDigital Water Meter
Features:
Small,light
For cold water
Dry-dial,magnetic drive,protected against external magnetic tampering
Vacuum-sealed register,frost resistant,keeps clear reading for long time
Brass body
High accuracy
Low-consumption design,only consuing when reading
Combining with meter-reading system to AMR
The meters conform to ISO standard Class C;
Working condition:
Water temperature ≤50°c
Water pressure≤1MPa(PN:1.6MPa/16bar)
ΔP≤0.1MPa(Class C)
ΔP≤0.063MPa(R160)
Accuracy:
From minimum flow-rate(qmin/q1) inclusive to transitional flow-rate (qt/q2),exclusive:±5%
From transitional flow-rate(qt/q2) inclusive,to overload flow-rate(qs/q4),exclusive:±2%
Electrical parameters:
Signaling frequency:483MHz
Transmit power:15dBm
Emission current:≤ 70 mA
Firing interval:low speed:4 hours:High speed:11 seconds to 30 seconds
Speed distance(open):Low speed:2500m;High-speed:1000m
Average operating current:≤15µA
Technical data:
| DN/Q | Q4=1.25Q3 Q3 | R=Q3/Q1 | Q2=1.6Q1 Q1 |
| l/h | l/h | ||
| 15 | 3125 2500 | 160 | 25 16.625 |
| Nominal size DN(mm) | Class of measurement | Overload flow-rate qs(m3/h) | Permanent flow-rate qp(m3/h) | Transitional flow-rate qt(l/h) | Minimum flow-rate qmin(l/h) | Minimum reading Min(m3) |
| 15 | C | 3 | 1.5 | 22.5 | 1.5 |
Overall dimensions and weight
| Type | Size(mm) | Lenght (mm) L | Width (mm) W | Height (mm) W | Connecting Tread D | Weight (kg) |
| LXSG-13D7/WF | 15 | 115 | 85 | 145 | G3/4"B | 0.8 |
Cheapest prices than any other water meter companies in China ;
Our goal is to help your business buy what money can not ;
Choice us is your smart,sensible and wise choice;
OEM Service can be offered.
IN STANDARD EXPORTED CARTONS
CAN BE PACKED IN PALLETS
27/9/2011, The Water Meter Production Base of Zhejiang Younio ( Zhejiang Younio Water Supply Equipment Co., Ltd) standed alone and set up a wholly-owned subsidiary - Wenling Younio.(Wenling Younio Water Meter Co.,Ltd), whose registered capital is RMB30 million.
08/12/2011,Zhejiang Younio signed an official agreement with Jiangxi Sanchuan which state that Jiangxi Sanchuan will be controlling shareholder and bring Wenling Younio going public.
01/01/2012,Wenling Younio start to run And we are planning to be the biggest water meter export base in China within next three years.
Wenling Younio. covers an area of more than 5000 square meters with a staff of more than 150,owning design and R&D center,accessories production center, whole machine production center,inspection and testing center.We are now capable of producing about 2 million pieces water meters annual.We have successively passed the certificate of ISO9001:2008 Quality System Certification, the certificate of ISO14001:2004 Environmental Management System Certification and the certificate of GB/T 28001:2001 Occupational health and safety management system certification.With a wide variety and a complete range of specifications.Our products are exported to many countries in the world such as Eastern Europe,South America,Africa and the Middle East,etc.Exports accounted for more than 85%.
