Home > Products > Gabion Mesh > PVC coated/galvanized gabion baskets
PVC coated/galvanized gabion baskets
- 100000 Square Meter / Square Meters per Month
- XinGang China
- T/T
Product Details
| Place of Origin: | Hebei, China | Brand Name: | Huade | Model Number: | HD-GM01 |
| Material: | Other, galfan /hot galvanzied/pvc coated wire, Galvanized Iron Wire | Type: | Other, weave wire mesh | Application: | Gabions |
| Hole Shape: | Hexagonal | Aperture: | 80*100, 60*80mm | Wire Gauge: | 2.0-4.0mm |
Product Description
Specifications
PVC coated/galvanized gabion baskets :1. Mesh:60*80; 80*100;100*120mm 2.galfan/hot galvanzied/pvc coated wire

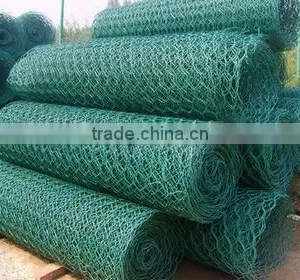

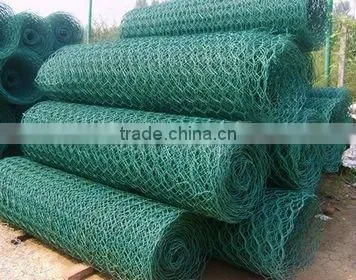

PVC coated/galvanized gabion baskets
gabion wire mesh Baskets (Boxes) are made of hexagonal Galvanized / PVC / Zinc coated double-twisted mild steel wire mesh.
Material: high quality low carbon steel wire( hot-dip galvanized wire, electro galvanized wire galfan wire or PVC/PE coated wire.)
Application: This kind of products is widely used to prevent soil erosion and retain soil particles, reduce water velocities and recapture river bed sediment in streams; also used mostly in the civil engineering industry especially in the construction of roads; recently due to their environmental benefits, they are used in various Application such as bank stabilizition, channel lining and weirs.
| specification of gabion hexagnonal mesh | |||
| Size of mesh aperture(mm) | Wire diameter (metal wire) (mm) | Used wire diameter (PVCmetal wire) inside diameter/outside diameter(mm) | Largest wide range (m) |
| 60X80 | φ2.0-2.8 | φ2.0/3.0-2.5/3.5 | 4.3 |
| 80X100 | φ2.0-3.2 | φ2.0/3.0-2.8/3.8 | 4.3 |
| 80X120 | φ2.0-3.2 | φ2.0/3.0-2.8/3.8 | 4.3 |
| 100X120 | φ2.0-3.4 | φ2.0/3.0-2.8/3.8 | 4.3 |
| 100X150 | φ2.0-3.4 | φ2.0/3.0-2.8/3.8 | 4.3 |
| 120X150 | φ2.0-4.0 | φ2.0/3.0-3.0/4.0 | 4.3 |
Length( L ) | Width(W) | Heigth(H) | Quality |
1M | 1M | 1M | 6m² |
2M | 1M | 1M | 11m² |
3M | 1M | 1M | 16m² |
4M | 1M | 1M | 21m² |
5M | 1M | 1M | 26m² |
6M | 1M | 1M | 31m² |
7M | 1M | 1M | 36m² |
8M | 1M | 1M | 41m² |
9M | 1M | 1M | 46m² |
10M | 1M | 1M | 51m² |
Processing of weaving mesh
Compression
Finished packing
Loading container
