Home > Products > Tungsten Carbide CNC Inserts > CNC Tungsten Carbide Inserts for Threading Cutting with CVD Coating

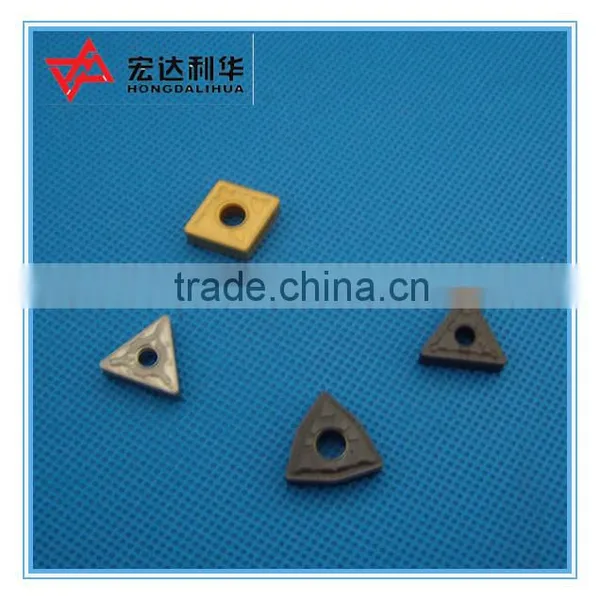

CNC Tungsten Carbide Inserts for Threading Cutting with CVD Coating
- 5000 Kilogram / Kilograms per Month
- Zhuzhou
- T/T D/P D/A Credit Card
- Cemented CNC Turning Carbide Inserts for Metal with CVD & PVD Coating
- CNC ISO High Quality Carbide Inserts for Turning
- CNC Carbide Inserts for All Kinds of Special Alloy Steel
- Zhuzhou CNC Carbide Inserts for Cutting Tools
- Tungsten Carbide CNC Inserts for Steel Cuttings with Coating
- Zhuzhou High Quality Carbide CNC Milling Inserts
Product Details
Place of Origin: | Hunan, China | Material: | Tungsten Carbide | Coating: | CVD |
Product Description
Applications
Tungsten carbide inserts have a thin metal blade or disk with a sharp, usually toothed edge. Tungsten Carbide blade is used for cutting wood, metal, or other hard materials. They can be hand-operated or power-driven. Our carbide inserts have used in surface processing of cast irons, colored metal and alloys, as well as nonmetal materials for hard metal, carbide rough turn, rough planning, and precision milling.
Applicable Machine | Tungsten carbide inserts for turning, milling, threading, grooving tool, cutting tools, etc. |
Stock | For standard, have enough in stock For non-standard, need to be customized |
Nonstandard order | Customize as request |
Packing | Can laser printing your logo and packing with your label |
Coating | CVD or PVD coating or as your require |
Suitable for steel , cast iron , stainless steel etc materials |
Grade Recommendation of Tungsten Carbide Inserts | |
Grade | Applications |
YBC151 | High wear resistance of the matrix and MT-TiCN, thick Al2O3 and TiN coating. |
YBC152 | Thick TiCN and Al2O3 coating |
YBC251 | tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating. |
YBC252 | Tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating. |
YBC351 | Tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating. |
YBG102 | nc-TiAN coating and fine-grained matrix. |
YBG202 | nc-TiAN coating and fine-grained matrix. |
YBG205 | Added abrasion resistance and high temperature rare elements ultrafine TiAlN based nano-coating. High layer hardness and excellent resistance to high temperature provide effective protection for the cutting edge. |
YBG302 | nc-TiAN coating and flexible cemented carbide matrix. |
YBM151 | Special organizational structure and TiCN, thin Al2O3 and TiN coating. |
YBM251 | Good toughness and strength matrix and TiCN, thin Al2O3 and TiN coating. |
YBM253 | With the advance extra fine grain nanometer coating technology, match up with the high toughness gradient matrix. |
YBD052 | CVD coating(extra thick Al2O3 & thick TiCN), hard matrix. |
YBD102 | CVD coating (thick Al2O3 & thick TiCN) , hard matrix. |
YBD152 | CVD coating (thick Al2O3 & thick TiCN), hard matrix, it is anti-stripping. |
YBD252 | CVD coating (middle thick Al2O3 & thick TiCN), hard matrix. |
YNG151 | Uniform particle refining organizational ceramal alloy, homogenizing organizational & ring form phase structure, Strengthen bond phase,grain boundary composition design. |
YNG151C | Physics weather deposit (PVD) coating, high toughness ceramal matrix. |
YD101 | Fine particle hardness phase WC and bond phase Co. |
YD201 | Middle particle hardness phase WC and bond phase Co. |
Zhuzhou Lihua Cemented Carbide Co., Ltd was established in 1990, Based depend on good production advantage, and company with produce, research and development, sales, technical service together that have many rich production experience of the tungsten carbide products. Also have strong scientific research and development team and technicians, advanced quality inspection division, senior engineer, etc of the tungsten Carbide production.
Our company mainly products such as carbide rod& tubing product, carbide strips &plates, carbide bars, carbide saw blade, carbide end mills, carbide drill bits, Carbide welding inserts, carbide CNC inserts, carbide woodworking tools, tungsten carbide powder, some non-standard tungsten carbide products and different other various type of the tungsten carbide products etc.
We have independent developmented YS series of tungsten carbide grade that the grade belong the micro hole grain of tungsten carbide, good abrasion resistance, impact resistant capability is strong, affinity resistant capability is strong that also has good heat conduction performance and so on characteristic.
Lihua is committed to the principle of "customer first, fast delivery and good after-sale service ". If you have any questions and any demand of tungsten carbide, please contact us without any hesitation. We promise you not offering only our qualified products, but also designing, prompt delivery, the most competitive prices and all solution.
Other Tungsten Carbide Products in Lihua:
Tungsten Carbide Plates
Tungsten Carbide Strips
Tungsten Carbide Wood Working Cutting
Tungsten Carbide Sleeves
Tungsten Carbide Nozzles/Spraying
Tungsten Carbide Balls
Tungsten Carbide Wire Drawing Dies
Tungsten Carbide Rods/Bars/Tubes
Tungsten Carbide End Mill Tool Holders
Tungsten Carbide CNC Tool Rods
Tungsten Carbide Rings
Tungsten Carbide Sealing Rings/Rollers
Tungsten Carbide CNC Cutting Inserts
Tungsten Carbide Special Cutting Tools
Tungsten Carbide Mining Tools
Tungsten Carbide End Mill/Milling Tools/Drill Bits
Tungsten Carbide Customized Parts
Etc.
1) Business Type: Manufacturer, Factory.
ISO9001:2008, SGS.
Focus on Tungsten Carbide industry more than 20 years.
2) Advanced technology, HIP sintering and precision grinding to ensure the goods performance;
3) 100% Virgin materials;
4) Each product through the strict inspections and confirm to the requirements of the lab parameters;
5) OEM & ODM are welcomed;
6) Small order is acceptable;
7) Flexible payment terms (L/C,T/T, western union, etc);
8) Provide custom made service with customer's drawing; Other size could be offered by your requirements;
9) We make sure to provide you with the best solutions for your individual case. Whether standard items or non-standard items all available;
10) Fast delivery and high quality;
11) Best after-sale service.
Foreign Sales Representative: Lumina
Mobile:+86 15173370139
QQ: 742277545
Website: www.en.
Factory Address: Tower A, 6th Building, Block C, Auto parts park, Tianyuan zone,Zhuzhou city, Hunan province, China
Postcode: 412000
