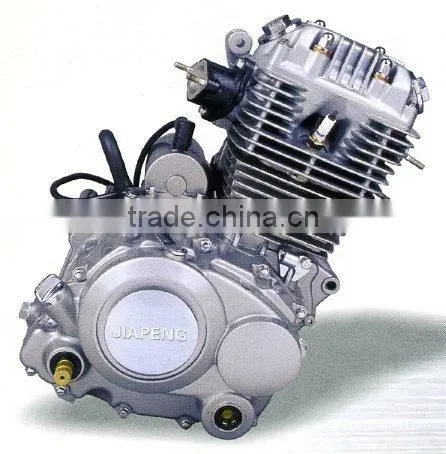

HOT SALE CG 125CC MOTORCYCLE ENGINE JP156FMI-5 engine
- 1000 Unit / Units per Month
- CHONGQING
Product Details
| Stroke: | 4 Stroke | Cold Style: | Air-Cooled | Start: | Electric / Kick |
| Cylinder NO.: | 1 Cylinder | Ignition Method: | CDI | Displacement (ml): | 125CC |
| Place of Origin: | Chongqing, China | Brand Name: | JIAPENG | Model Number: | JP156FMI-5 |
Product Description
Specifications
1Single Cylinder,4 stroke,Air cool,Vertical2.Special magneto
3.Alloyed push rod
4.Factory priceA grade qu
1
Engine Name | AD-CG125D |
Engine Type | Single cylinder,4-stroke,wind-cooling,catty-cornered, camshaft downward |
Displacement(ml) | 124.04 |
Dimension(mm×mm×mm) | 358×324×446 |
Net Weight(kg) | 31 |
Max.Power(kw/r/min) | 7(1±10%)/8500(1±5%) |
Max.Torque (N.m/r/min) | 8.6(1±10%)/7000(1±5%) |
Compression Ratio | 9:1 |
Bore and Stroke(mm×mm) | 56.5×49.5 |
Ignition method | CDI |
Lubrication method | Pressure and Splash |
Min.Fuel Consumption(g/Kw.h) | ≤367 |
Starting method | Electric |
Clutch method | Manual Wet Multi-Plate |
Gearshift Method | Constant mesh, two stage transmission , 5-speed Gearshift |
Advantages:
1.CKS piston rings, super endurance.
2.It is designed with micro-arc oxidation technology, good reliability.
3.Fully new water pump, more powerful.
4.Leading water-cooled technology, good heat dissipation.
5.Automobile standard water pipes, good applicability of temperature difference.
6.Famous-brand components, double service life.
7.Specific clutch, avoiding slip.
Delivery Detail: produce and delivery in7-15days after receiving your deposit.
Packaging Detail: according to customers’ requirement.
Five kinds of package: Neutral package, twokinds of color little package , color big package with foam, no package twelve pieces cylinder block per box.
1)We supply free samples, when you place the first order with us the freight and samples fee will be returned.
2)Our factory is located in YUBERI Industry Park. OEM, customized processing services are acceptable.
3)We also supply packaging service and package design.
4)We sign a formal contract.
