Keyland Metal and Non-metal Laser Cutting Machine
Laser Cutting Machine video :http://youtu.be/vcFD9ov3EUE
Keywords: Laser cutter/Co2 laser cutter machine/Laser cutting machine/Cutting laser machine
Laser Power:130W 150W 260W

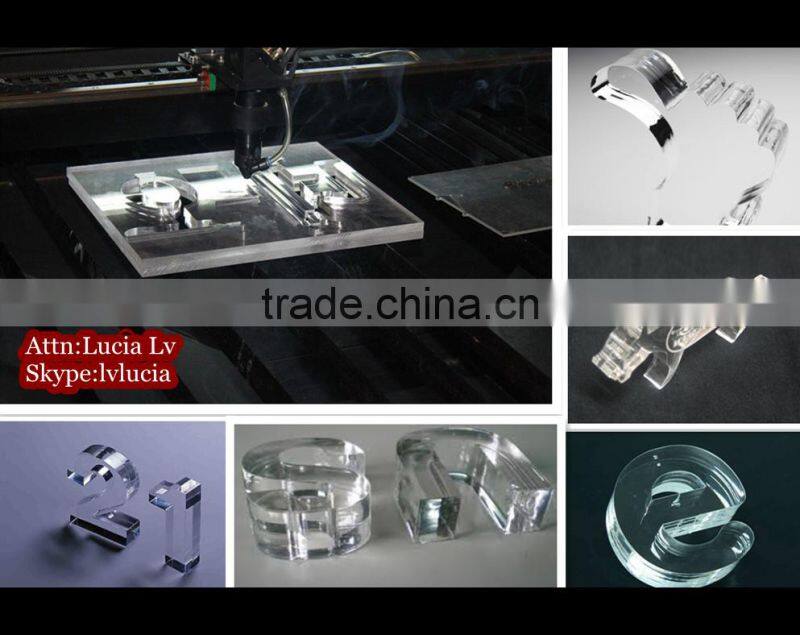

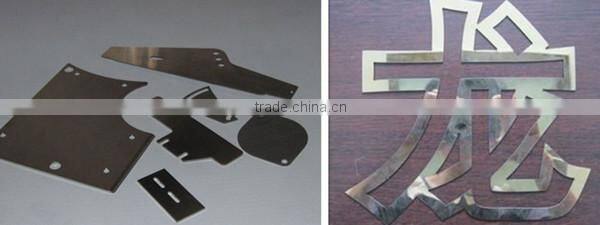

Laser cutting machine is suitable for Acrylic / MDF Wood and other nonmetal materials and thin SS,Carbon steel and other metal'cutting /Engraving/hollowing
Details of Laser cutting machine
Spec | KQG-1325M | KQG-1530 | KQG-2030 |
Working area(mm) | 1300*2500 | 1500*300 | 2000*3000 |
Resolution | 0.05mm | ||
Running speed | 20mm/min | ||
Power | 220V/110V +20A | ||
Cutting Parameters | 130W | 150W | 260W |
Materials Thickness | M/min |
|
|
1mm SS | 1.8m/min | 2.7~3m/min | 3.3~3.6m/min |
1.5mm ss | 1~1.2m/mim | 1.5~1.8m/min | 2.5~3m/min |
1mm carbon steel | 1.8m/min | 2.7~3m/min | 3.3~3.6m/min |
1.5mm carbon steel | 1~1.2m/min | 1.5~1.8m/min | 2.5~3m/min |
10mm acrylic | 0.3m/mim | 0.3~0.36m/min | 0.9m/min |
20mm acrylic | 0.09~0.12m/min | 0.09~0.12m/min | 0.24m/min |
5mm MDF | 0.9m/mim | 1.5~1.8m/mm | 2~2.3m/min |
10mm MDF | 0.3~0.4m/min | 0.6~0.72m/min | 1.5m/min |
Strong Points of our machine:
High quality Laser
Metal Cutting &Servo system
Imported ball screw and linear guide rails Transmission system
Industry cooling system
Collision Avoidance System |
|
|
Main Feature
The machine adopts transmission structure which combined with imported ball screw and linear guides.It is high stability and accuracy. All of the core components are from reliable international brand.And it’s control software is advanced.
This machine has a unique independent powerful exhaust system at the upper and lower so that it canemit the smokes or dusts to outdoor.
It meets great requirements of large -format processing and large processing enterprise needs to improve work efficiency and cost effectiveness
