Home > Products > Online Low Frequency UPS > Network Equipments Low Frequency Online 30 Kva Ups

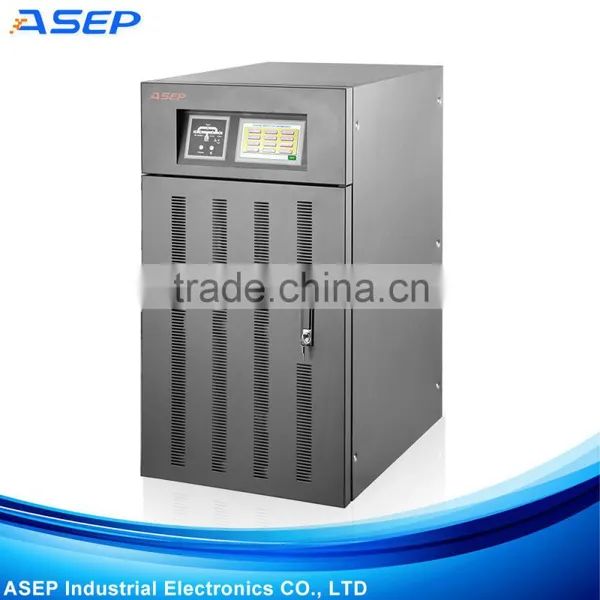

Network Equipments Low Frequency Online 30 Kva Ups

FOB Price

Negotiable / Acre

1 Acre(Min.Order)

Supply Ability 50000 Unit / Units per Month
Port Foshan / Shenzhen Port
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Guangdong, China	Brand Name:	ASEP	Model Number:	AIS30KVA
Phase:	Three Phase	Protection:	Other, over / under input voltage, over / under output voltage, over-curren	Weight:	200KG~300KG
Output Voltage:	220 / 380VAC±1%	Type:	On-line	Application:	Other, Medium and small size data centre; Medium and small size industrial co

Product Description

Network Equipments Low Frequency Online 30 Kva Ups

Item No.	AIS10KVA	20KVA	30KVA	40KVA	60KVA	80KVA	100KVA	120KVA
Series Name	Industrial Online Series
Rated Capacity	8KW	16KW	24KW	32KW	48KW	64KW	80KW	96KW
Inverter
Input Phases	RST+L+N
Nominal Output Voltage	220/380VAC±1%					380VAC±1%
Nominal Output Frequency	50/60Hz±0.5%(Battery mode)
Power Factor	0.8/0.9
Frequency Stability (synchronized)	<±0.5
Frequency Stability (non-synchronized)	<±2%
Crest Factor	3:01
Output Waveform	Sine Waveform
THD (Total Harmonic Distortion)	Linear load<3%;Non linear load<5%
Fluctuation Voltage for Unstable Load	<±4%
Transient Recovery Time	<10MS
On-Load Voltage	Balance:<±1% Unbalance:<±5%
Overload Capability	120% overload lasting 30Mins,150% overload lasting 1min.
Inverter Efficiency, 100% on load	>93
Bypass
Input Phases	RST
Nominal Output Voltage	300VAC±15%
Nominal Output Frequency	50/60Hz±10%
Transfer Time	0MS
Physical
Shipping Weight	200KG~300KG			400KG~500KG		650KG	800KG	980KG
Shipping Width (mm)	560			660		1070	900	1540
Shipping Height (mm)	1140			1145		1650	1440	1570
Shipping Depth (mm)	700			795		900	1100	890
Noise (within 1 m)	53~68db
Cable Placement	bottom or back
Color	Black or White
System
Communication Interface	RS232, RS485,Dry contact,Intelligent slot
Cooling Method	Forced ventilation
Protection Level	IP20
MTBF	300,000 hours
Environmental
Operating Temperature	0℃~40℃
Operating Relative Humidity	0%~80%
Operating Altitude	>1000M(1% Power dcreased in every 100M increased. Maximum 4000M)
Conformance
Regulatory Approvals	ISO9001
Standard Warranty	1 year

Features:

ASEP’s Industrial Online uninterruptible power supplies are specially designed to support all kinds of precise instruments, large equipments data center and production machines etc. , preventing from any unstable power or interruption affecting their normal work performance.

DSP control technique is applied;
Data displayed on wide, clear and touch-sensitive LCD screen;
Code setting available;
ECO friendly design increases power efficiency up to 97%;
Charging current can be adjusted manually
Adaptability of 100% unbalanced load;
Advanced technique design includes silicon controlled rectifier, static transfer switch, and output isolation;
Protection against over/lower input voltage, over/lower output voltage, over-current, over-heat;
N+X redundancy;

Details

Advantages

Product Advantages

1.Smart Mute System

Smart regulation working condition so noise below 50DB

2. Touch-sensitive LCD screen, Password Protection System

3. DSP control technique is applied

4. Available wifi module

Wifi module enables the UPS status to be monitored in remote real-time

After-Sales Service

After-sales service

A. Remote Technical Support (those with WIFI module installed);

With WIFI module installed, we can help you monitor the performance of your machine.

B. Free training and Consultancy

Apart from the user manual, free personnel training is offered at our factory.

C. 2% Back-up material for main parts is provided.

For order more than 100 pcs and above, we can provide 2% back-up for key parts of the machine.

D.One Year Warranty

If you have any questions, plz feel free to contact us.
