QC12Y Series Hydraulic swing guillotine shearing machine, Hydraulic cutting machine

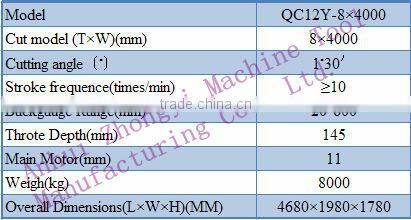

Specifications

Professional manufacturer
High quality ,good service
Gear pump, reduce noise

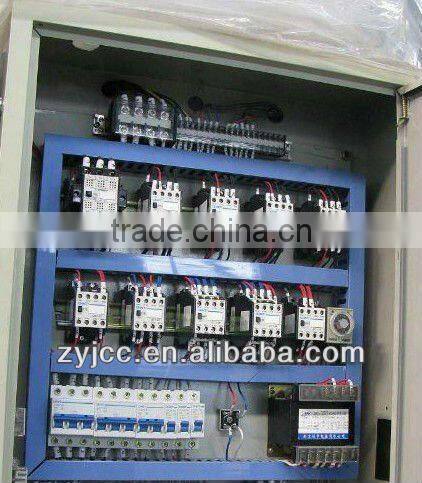

Schneider electric
Fast & Micro adjustment

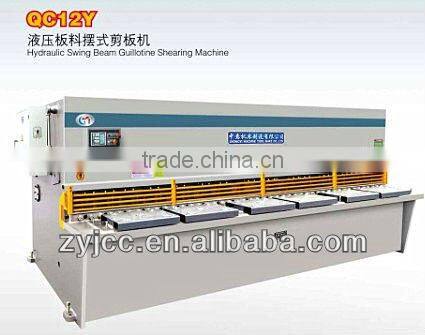

Hydraulic swing beam shear (QC12Y)

Detailed Description

 Metal Shearing Machine

Performance:

The frame is entirely welded with steel plates, vibration to eliminate stress. With high strength and good rigidity.

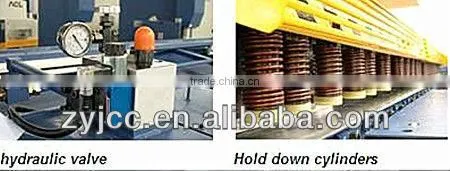

Hydraulic drive, return of knife beam is smooth and prompt by accumulator or nitrogen cylinder.With easy operation, reliable performance and nice appearance.
There is indicator for adjusting the blade clearance, easily operation.
There are safety fences in the working area to ensure the personal safety
There are numerical display for cutting number and the length of back gauge.



Functions and Features:

With steel sheet welded structure ,hydraulic drive system ,accumulator back stroke ,it has characters of convenient operation reliable performance,and beautiful appearance.

Clearance between blades has display plates for swift and stepless adjustment

With light-alignment device ,and be capable of stepless adjustment of stroke length of blade rack

Adopt barrier protection arrangement for personnel safety

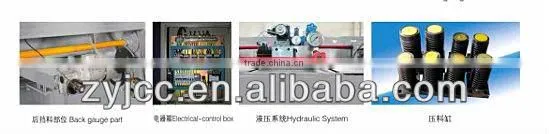

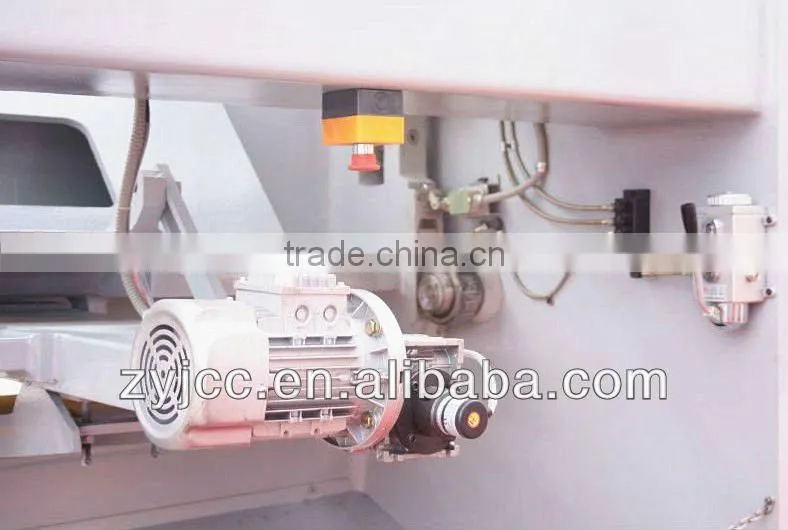

Back gauge adopt E15 or MD11 digital control system,with characters of low noise and high precision

 The frame is entirely welded with steel plates,and treated to relive stress by tempering.

Hydraulic drive.Return of knife beam is smooth and prompt by accumulator or nitrogen cylinder.

The portable and prompt adjuxment of the blades gap and the value of gap are indicate by digital,convenient and fast.

Equipped with lighting-alignment,so as to align when shearing.The stroke of knife beam can be adjuxted in stepless mode.

Protection fence to ensure the operation safety.

The display devices of the backgauge value and the shearing times are on the front of the machine.
