2016 New 550CMH Stainless Steel Desiccant Wheel Industrial Dehumidifier

2016 New 550CMH Stainless Steel Desiccant Wheel Industrila Dehumidifier

Features  2014 New 550CMH Stainless Steel Desiccant Wheel Industrila Dehumidifier

  Industrial Dehumidifier

1.Accurate camputer contral system

2.Timer function

3.Proflute Rotor, imported from Sweeden, washable

4.Delaytime protection circuit

5.Silence, economical, saving, and easy operation

6.Fault locator system

7.Cleanable air filters helps improve the quality of air being circulated through the system at the processing air entrance&reactivation air entrance

Cetifications:    Industrial Dehumidifier   2014 New 550CMH Stainless Steel Desiccant Wheel Industrila Dehumidifier

Applications:     2014 New 550CMH Stainless Steel Desiccant Wheel Industrila Dehumidifier

The Rui Ya Electric Appliance recommends the use of  this Desiccant Wheel Dehumidifier in the following situations:

Industrial plant where humidity of less than 35%RH,

Low dew point conditions
Low temperatures, especially combined with low humidity
Single pass air flow applications

Pharmaceutical production, packaging, storage, testing and research
Process air systems
Photographic/film archive stores
Pneumatic conveying of powders
Pumping stations
Confectionary production and packing
Food production
Clean rooms
Electronics manufacture
Cold stores
Seed storage
Drying & corrosion prevention inside power station turbines
Injection moulding machines

Parameters     2014 New 550CMH Stainless Steel Desiccant Wheel Industrila Dehumidifier

Others:

This is a dehumidifier that has been designed and then made to exacting standards.  The Desiccant Wheel Dehumidifier RY-600M can extract up to 60 litres of moisture per day and can continue working right down to -15°C.

Part of the design brief for the Desiccant Wheel Dehumidifier RY-600M series was to make a machine that removing as much moisture as possible with as low a running cost as possible.

We have been devoting to  Desiccant Wheel dehumidifier for many years and we are happy that we developed successfully the Ya Ke series, providing the best quality units for customers.  Quality is very important because this type of dehumidifier is often used in dirty and demanding situations but it is important that the customer receives several years problem free use.

The body is made of stainless steel to provide a long lasting finish, and they have a proven history of reliability.

Our team has the skills our clients demand and the knowledge to provide high efficiency dehumidification solutions.

So, Ya Ke dehumidifier --the best choice for air humidity control!

Certifications of factory

Principle of desiccant wheel dehumidifier

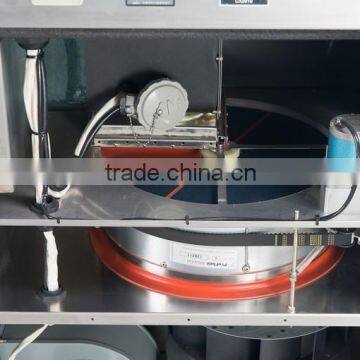

The core part of desiccant wheel dehumidifier is cellular structure rotor, formed by special ceramic fiber composite and silica gel. The rotor is divided into two areas by a seal device, one is process area(dehumidification area), the other is reactivation area. When the dehumidifier is in operation, two streams of air pass through two areas simultaneously. One is the air that will be dehumidified by silica gel in rotor, the other is hot air used to dry the running rotor so that it will be able to remove moisture again. The moisture is taken away by the hot and very humid air steam.

As per the below picture showing:

Warranty:

1.The product has three-year free warranty from the date of purchase.

2.The warranty shall not apply: (i) to any Product subjected to  accident, misuse, neglect, alteration, Acts of God, improper handling,  improper transport, improper use, improper testing or  unauthorized repair or (ii) to cosmetic problems or defects  which result from normal wear and tear under ordinary use, and  do not affect the performance or use of the Product.All warranties  are void if the product is opened, altered, and/or damaged.

3. CUSTOMER MUST PRESENT THE SALES INVOICE OR  RECEIPT FOR FREE WARRANTY SERVICES

4. Service Hotline: (86) 571-86817211-811 Fax Hotline: (86)571-86817100
