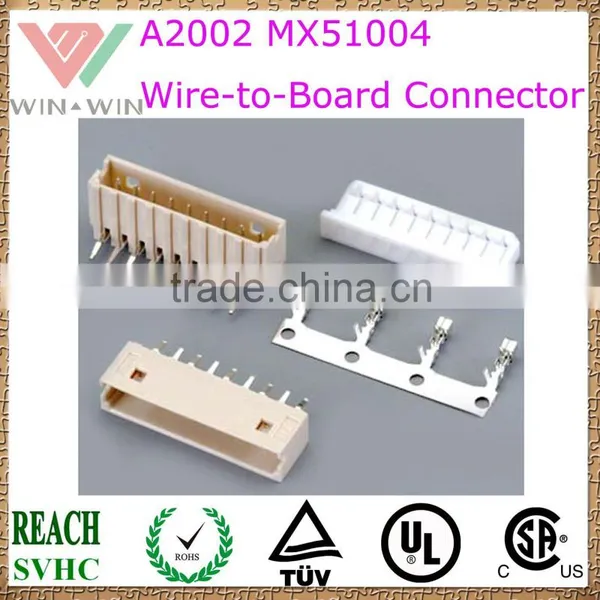

2.0mm Pitch A2002 MX51004 Electronic Wire to Board Connector

Specifications

wire to board connector
1. 2.0mm pitch Connector
2. Rich working experience
3. RoHS, Reach, UL, CSA & TUV
4. Free sample

2.0mm Pitch A2002 MX51004 Electronic Wire to Board Connector



1. Great 2.0mm Pitch A2002 MX51004 Electronic Wire to Board Connector’s Features:

*Easy contact insertion:

Contacts can be inserted into the housing easily and smoothly.

*Connections:

Connectors can be used for wire-to-board connection very easily.



2. Great A2002 MX51004 Electronic Wire to Board Connector’s specifications:

*Current rating: 2A AC DC

*Voltage rating: 125V AC, DC

*Temperature range: -25°C ~ +85°C

*Contact resistance: ≤20m Ω

*Insulation resistance: ≥1000MΩ

*Withstanding Voltage: 800V AC/min



3. 2.0mm pitch Electronic wire to board connector A2002 MX51004 A2002H-XP housing spec drawing for your nice reference:

*Circuits: 2-15P

*Insulator Material: Nylon66, UL94V-0

*Packaging: 1000PCS/Bag



4. A2002 MX51004 A2002T Terminal spec drawing for your nice reference:

*Contact Material and Finish: Phosphor Bronze and Tin Plated

*Applicable wire: AWG#28 to #24 (OD: 1.4mm)

*Packaging: 10,000PCS/Reel

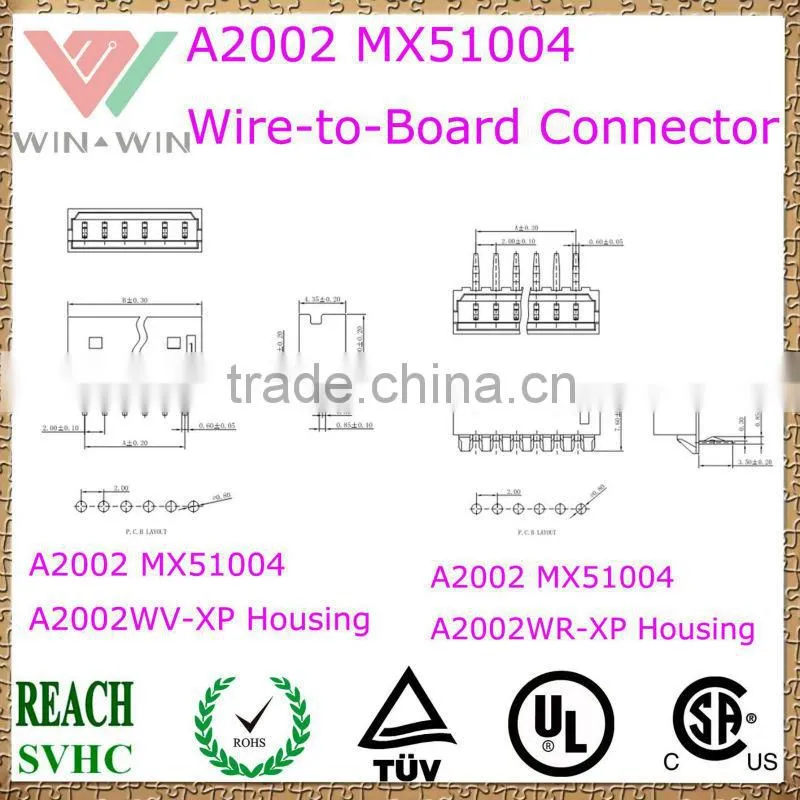

5. 2.0mm pitch Electronic wire to board connector A2002 MX51004 A2002WV-XP & A2002WR-XP Housing spec drawing for your nice reference:

*Circuits: 2-15P

*Insulator Material: Nylon66, UL94V-0

*Contact Material: Brass and Tin Plated

*Packaging: 1000PCS/Bag



6. Great A2002 MX51004 Electronic Wire to Board connector’s application:

A2002 MX51004 2.0mm pitch electronic Wire to Board connectors are reliable wire-to-board connectors, used for such electrical and electronic equipment as home appliances, vending machines and office machines etc.

7. ***Flexible MOQ Of the great electronic Wire-to-Board Connector***



We'd like to grow with our partners. And long term relation is we expect. We totally understand that the clients need to order the ph connector, PH JST Connector, AMP Connector, HRS Connector, JAE Connector, Molex Connector, Sur Connector & Piercing connector with both Wire-to-Board connectors, Wire-to-Wire Connector & Board-to-Board connectors for replacement in a small quantity at the beginning, especially for the terminals & housings connectors.



To show our sincerity, we can accept small order in a small quantity for your evaluation. And there are great discount for big orders definitely.



8. ***Competitive Price and Promptly Delivery. ***



With good and stable relationship with the upstream suppliers, the capability of design and made the mold by ourselves, and the skilled & experienced workers, it make sure that we can provide the competitive price and finish the orders on time for the clients.

Thanks a lot for your great valueable time to view our above information, here we would love to share more wire-to-board connectors for your nice reference as below, wish you will like it:

We Dongguan Win-Win Electrical Co., Ltd have been specialized in supplying Electrical Connectors for more than 6 years. We are striving to provide Electrical connector products with good quality, best service and competitive prices based on our expertise and good conscious team. Most popular connectors such as:

1.25/2.0/2.54/3.9mm Pitch Wafer Connector,

DC Power Jack/Laptop dc jack Connector,

USB Connector,

HDMI Connector,

Thermal Protector,

DC Power Inline Plug,

187/250 Insulation Terminal Connector,

Ekowool Silica Braided / Twisted Wicketc

are widely used & export to USA, Brazil, Mexico, Russia, Germany, UK, France, Turkey, Israel, Denmark etc beautiful countries & enjoy a high reputation from all of our wonderful customers over there.



Suppose you have any questions or smart minds on developing new connector products, are warmly welcome to contact us, we must strive all our best to reply you within 12 hours and provide the great solutions for your nice reference top priority.Win-Win Team must consist provide 7*24*52 best services for you forever, make mutual benefits for both of us will build our sincerely & honestly friendly business relationships last whole our life time. You Happy, we feel more great happier. We firmly believe that long-term customer satisfaction is the cornerstone of our success, looking forward to your great visiting or contacting us at your most convenient time.



9. You are warmly welcome to Contact US:

1). Customer satisfaction is very important to us and our feedback rating reflects this satisfaction.

2). If you have any questions, our Customer Service staffs welcome you to email or call us. We strive to answer all questions and resolve any problems within 24 hours. If can’t, must report to you the real reason during the time.

3). Please email us before leaving any negative feedback or open any dispute on alibaba. We care about our valued customers, and will always try to help you. So if you have any problems, please e-mail us immediately.

Good Luck & Have a nice enjoyable shopping experience! Hope to chat with you soon via Trade manager, skype, WhatsApp & email!
