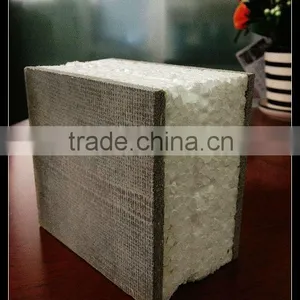

EPS cement sandwich panel

EPS  cement board:
1. Strong and durable.
2. Elegant appearance.
3. Light in weight, greatly save cost

EPS  cement board:


Introduction:  EPS  cement board is a kind of composite board with fireproofing, heat and sound insulation, light features. The inner crosser and special steel materials not only offer powerful rigidity support for the whole construction, but also can prevent the fire spreading effectively. The one block 3000mm×1220mm super large board can apply in the construction with floor height below 3 meters without any integration. The simple installation not only increases efficiency and material utilization rate, but also keeps a clean and quiet installation site, which will not bring rubbish and a mass of dust. As a kind of high quality heat insulation wall, it applies to Villa, shopping mall, hotel, office, dust-free workshop, apartment and moveable house etc.

Features:

Ø         The board excludes any asbestos and it will not emit smoke and gas when the board fires. The incombustibility is complying to GB8624-1997A standard.

Ø         The super heat insulation capability can save the power consumption for cooling and heating of the construction.

Ø         The super sound insulation ability ensures quiet and elegance surroundings of the rooms,

Ø         The board can prevent insect and tide, and will not affect by the coagulate water drops or wet weather.

Ø         The board is very light and it has special tenon for quick installation.

Ø         Blocking design and no construction rubbish.

Ø         Reinforced by invisibility steel, which can effectively pull the board at emergency and decrease human injury caused by wall dumping.

Ø         Resisting aging and the useful life is up to 50 years.

Applications:

Ø         The exterior wall, partition wall and the roof of new type environmental protection villa.

Ø         The partition wall of civil house and new type environmental protection apartment.

Ø         Shopping mall, hotel room, amusement building and restaurant etc.

Ø         Heat insulation workshop, office building wall and partition wall.

Ø         Moveable steel temporary construction wall

Ø         The wall of school, station, hall and church construction.

Specification

Physics parameter

Dimension:           3000mm×1220mm  ±4mm

Thickness:           75mm  ±1mm

Weight:              ≥12  Kg/m2

Performance parameter

Standard dry shrinkage value          ≤0.46 mm/m

Sound reduction index in air           ≥35 dB

Impact strength                      ≥20 times before board cracked

Bending resistance                   ≥3.0 Board deadweight multiple load

Suspend force                       ≥400  N

Fire endurance                       ≥2 Hours

Board combustibility                  Complying to GB8624-1997A standard.

Thermal conductivity                  ≤0.02 (W/mK)

Impermeability                       24h  No bead no getting damp

Impermeability to water                Water proof

Notice: impact strength is the maximum impact times before board cracked. Test condition: swing shock with 30KG weight sand bag and 0.5M fall.

Joint

1.      Fixing countersunk stainless steel self tapping screw at the purline on edges of the board, which is for orientation and fixation.

2.      Using one piece screw per 40cm space. If there is hiding steel or purline, it has to been fixed by the screw.

3.      The joint is fixed by staple on the tenon, which gap is around 3mm. Filling the gapfiller into the gaps effectively and strickling the filled gap with scraper.

4.      Sanding the filled gap slightly when it is dry enough, and then mopping up the second layer gapfiller.

5.      When the second layer gapfiller is dry enough, sanding the joint surface slightly till it become even. Then you can do the final decoration of the wall surface.

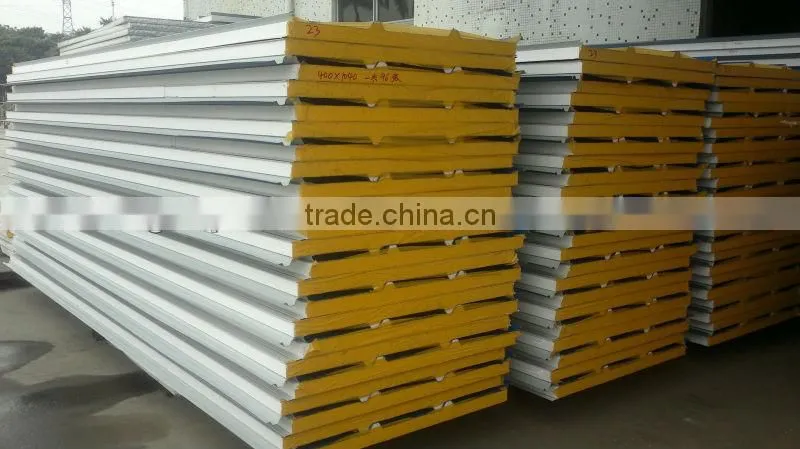

Packaging & Delivery

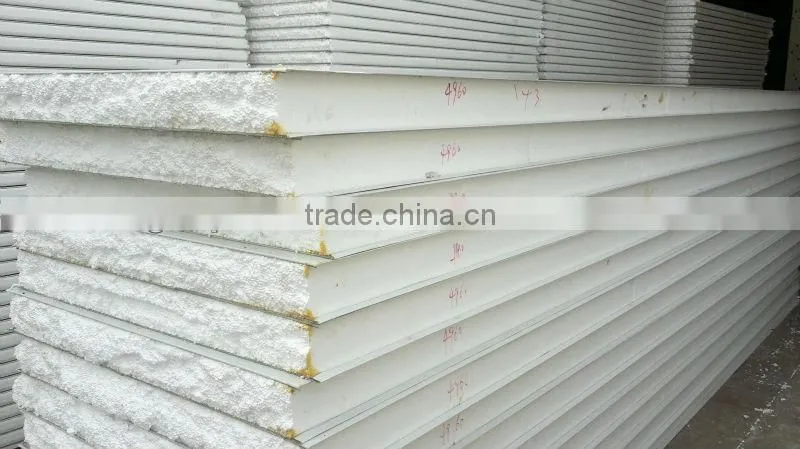

EPS Sandwich Panel:
1, own steel and cement sandwich panel prodcution line
2, 50,000sqm prodcution ability monthly

EPS Sandwich Panel

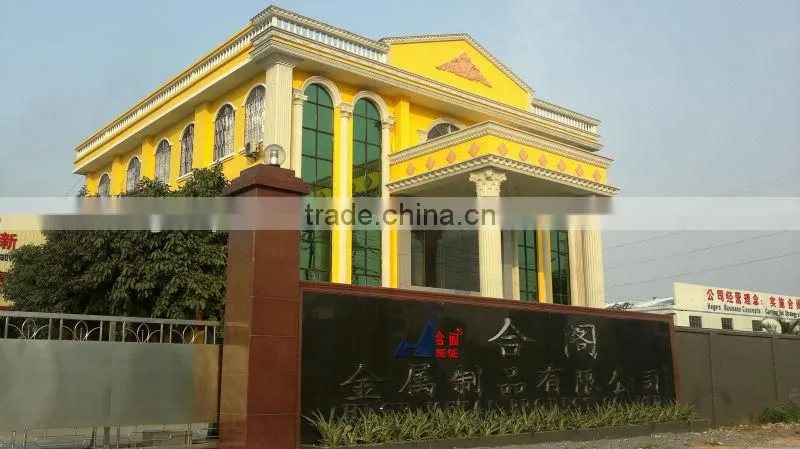

We mainly manufacture prefab house, container house, light steel villa, steel structure building, and sentry boxsince 2005.
