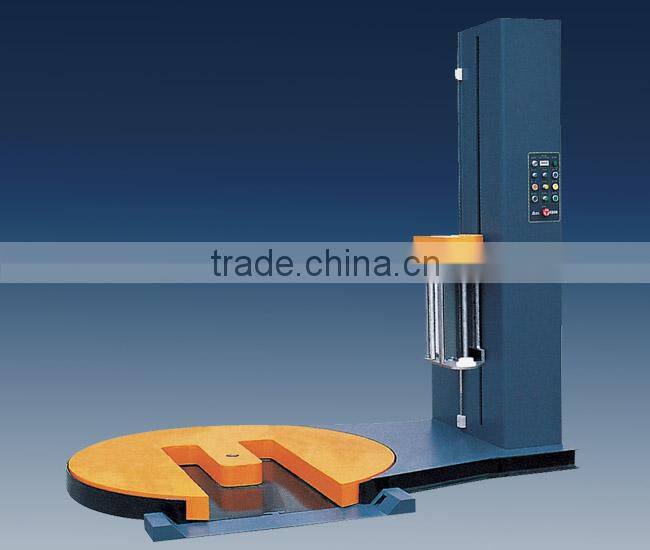

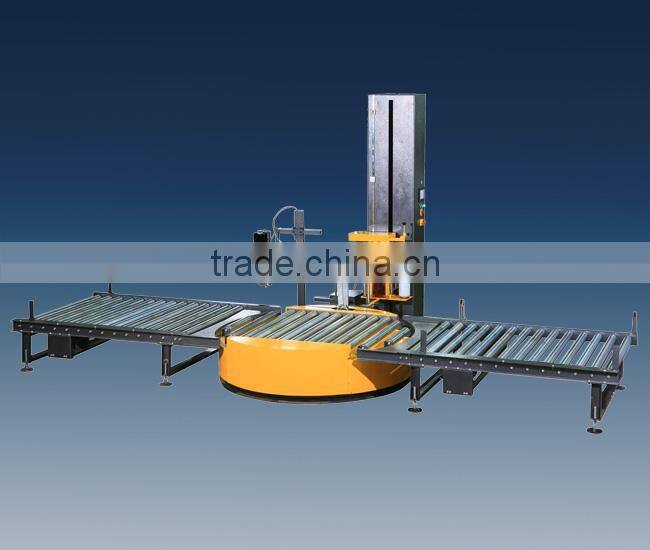

General (Automatic top-plate pre-stretch pallet wrapping machine):
Automatic top-plate pre-stretch pallet wrapping machine are used to wrap stretch film around a loaded pallet, this model more suitable for tall and unstable goods. Top-plate provides a press to the top of load and ensure it safety wrapping.Additionally, Wrapped loads can easily be separated and identified.
Application(Automatic top-plate pre-stretch pallet wrapping machine):
It is widely used in chemical industry, electronic industry, building materials, home appliances, papermaking, foodstuff and drink etc.
Featuresof Automatic top-plate pre-stretch pallet wrapping machine:
1.Control System: OMRON PLC controller, Photo-eye pallet height sensor.3-12RPM variable turntable speed by frequency changer.

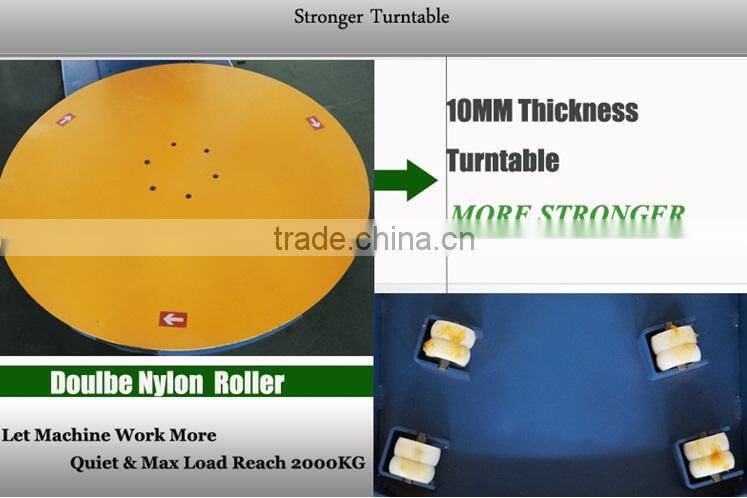

2.1650mm diameter structural steel plate. 85mm low profile turntable. Position turntable alignment.
3. Top-plate: the top-plate according the load height to press down automatic.
4. Turntable soft start/soft stop, heavy duty chain drive.
5. Variable film tension control.
6. Heavy duty chain carriage lift, Calm and safety.
7. Safety stops to avoid foot crush.
8. Option: Hinged mast for easy handing, Rear for lift transportable, Ramp
9. Special turntable sizes can be customized!
Technical Specification(Automatic top-plate pre-stretch pallet wrapping machine):
Model | T1650EB-CS(Economical type) | T1650F-CS(Standard type) |
Packing Speed(loads/h) | 20-40 | 20-40 |
Wrapping Size(L×W)(mm) | (500-1200)×(500×1200) | |
Wrapping height(mm) | 2000 | |
Turntable diameter(mm) | 1650 | |
Turntable speed(rpm/min) | 3-12 | |
Turntable loading(Kg) | 2000 | |
Top-Plate pressure(Kg) | 20-50 | |
Power(kw/v/hz/A) | 1.1/220/50/20 | |
Gross Weight(kg) | 620 | 800 |
Package Size(mm) | 2745×1650×2895 | 2745×1650×3300 |

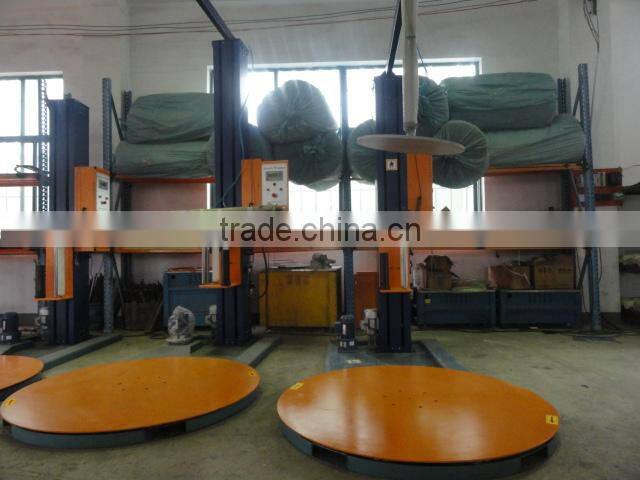

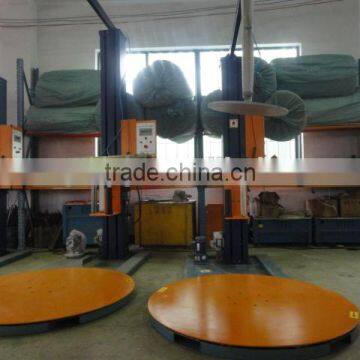

Our Factory:
Motech. has been providing world-class quality, service, and support since 1997. In that time, we have completed more than 25,000 custom projects for customers worldwide. Our customers, which range from start-up operations to Fortune 500 multinational corporations, can be found a broad range of industries, including:
•Medical
•Pharmaceutical
•Energy
•Food Processing
•Government
•Aerospace
•Electronics/Semiconductor
•Telecommunications/Fiber Optics
•Packaging/Material Handling
•General Manufacturing
Our machine combine a tightly crafted and functional design with optimum ease of operation and a long life span. Installation is just a matter of “pack”, and smart design ensure that hygiene standards and maintained at all times.
The SME business is organized into three divisions: Machine, Equipment as well as related equipment. Each division serves a global market, focusing on its specific customer segments.
SME has 3 manufacturing sites distributed in China. With its own sales office in Shanghai, supported by some 20 staff and dealers worldwide, its e-business marketplace and global distribution system, SME is always close to its customers for the supply of both products and services.
Our brands are the cornerstone of that investment and are our commitment to each customer. Offering some of the world’s best known and top-performing brands in electronics, telecommunications, automotive and electrical, SME stands as the world’s premier provider of circuit protection.
Our Clients Visiting us
Our Certifications
The main equipments we can provide
Our Services
We provide:
1. Best product quality and competitive price
2. On time delivery and the shortest delivery time
3.One year warranty: If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.
4. OEM and customized service, products could be customed as your requirements.
5. User manuals will go with relative machines.
We assure:
1. All products will be checked before delivery
2.Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers
3.Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
4.Operation Guidance: If you have any problem with operation, please feel free to contact us
Matters not mentioned here could be discussed.
Our Clients
Q1.Are you a manufacturer or a trading company ?
A:
We are a professional manufacturer of Pre-packing and after-packaged machine.
Q2.Where is your factory located ? How can I visit there ?
A:
Our factory is located in Shanghai City. From Pudong airport or Hongqiao airport
Q3.How to support me if i don't know how to use it?
A:
Free training within the warranty by tel and mail or skype. We also can dispatch our
technician to customer’s company if customer agree the air ticket and hotel.
Q4.What's the pre-sale service of your company?
A:
Professional Advice about Market, machines, processing , materials, packing can be supplied.
Q5. What's the after-sale service of your company?
A:
1. Allocation chart
2. Operation manual
3. One year warrantee, life time maintenance with cost price.
4. Free easy broken spare parts
5. First installation can be done by engineer.
6. Training workers in customer’s factory.
Q6. If machines wearing parts need changing, what should we do?
A:
We can offer the wearing parts all the time, and offer video.
Q7. What's the payment terms if we want to buy the machines?
A:
L/C, 100%T/T,T/T 30% down payment, 70% balance before delivery.
