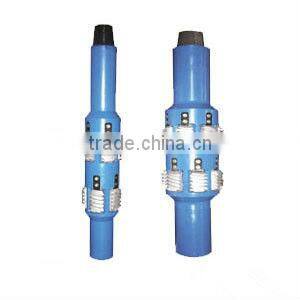

GW02 Casing Scraper

FOB Price

Negotiable / Piece

5 Pieces(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Tianjin Shanghai
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	China	Brand Name:	SINOTAI	Model Number:	GW02
Type:	Other, Casing Scraper	Machine Type:	Drilling Equipment	Certification:	API
Material:	Carbon Steel	Processing Type:	Forging	Use:	Well Drilling

Packaging Details

plywood case

Product Description

Casing Scraper

Product Explanation:The Casing Scraper is used to clean cement, mud, embedded bullets, rust, mill scale, paraffin, perforation burrs and other substances from the inside walls of casing. Maintaining a clean casing I. D. is important to the operation of all tools used in drilling the well. Likewise, packers and similar tools must have a clean surface to grip. Foreign materials on casing walls will frequently cause these tools to become difficult to operation.

The Casing Scraper is manufactured from a solid piece of heat treated steel. The scraper blades fit into machined recesses and are securely held by a dovetail keeper and spacer. The scraper blades feature left hand helical grooves and are hard faced for maximum service. There are sufficient blades in the body to completely scrape the casing surface without rotating the tool.

Standard connections on the Casing Scraper are API Reg., Box and Pin. This allows the scraper to be installed in the drilling string between the bit and the bit sub. The bit is run below the scraper to serve as a guide and prevent plugging the circulation hole through the scraper

Product types and specifications:

Type	Casing Size (mm/inch)	Connection (mm/inch)	Body O.D. (mm/inch)	Length (mm/inch)	Body I.D. (mm/inch)	Quantity of Blades (mm/inch)
GW01	4-1/2(114.3)	2-3/8REG	3-5/8(91)	38-1/4(971.2)	3/4(19)	2×3
GW02	5(127)	NC26	3-5/7(94)	38-1/4(971.2)	3/4(19)	2×3
GW03	5-1/2(139.7)	NC31	3-5/16(110)	44-5/16(1100)	1(25.4)	2×3
GW04	6-5/8(168)	3-1/2REG	4-7/64(130)	44-5/16(1100)	1(25.4)	2×3
GW05	7(177.8)	3-1/2REG	5-3/8(136)	44-5/16(1100)	1-13/16(30.2)	2×3
GW06	9-5/8(244.5)	4-1/2REG	8(1203)	52(1320)	2-1/4(57.2)	2×5
GW07	10-3/4(273)	6-5/8REG	9(228)	59(1500)	2-1/4(57.2)	2×5
GW08	13-3/8(339.7)	6-5/8REG	11-1/4(286)	59(1500)	2-13/16(71.4)	2×7
