Main Products
1 | CC conveyor belt | 8 | Chemical resistant conveyor belt |
2 | Polyester conveyor belt(ep) | 9 | Cold resistant conveyor belt |
3 | Nylon conveyor belt(NN) | 10 | Whole-core flame retartant conveyor belt |
4 | Steel cord conveyor belt | 11 | oil resistant conveyor belt |
5 | chevron conveyor belt | 12 | high temperature resistant conveyor belt |
6 | heat resistant conveyor belt | 13 | patterned conveyor belt |
7 | Common Flame retartant conveyor belt | 14 | sidewall conveyor belt |
EP Conveyor Belt, NN Conveyor Belt, Cotton Conveyor Belt
We are rubber conveyor belt manufacturer in china and ISO certified manufacturer and exporter of superior quality conveyor belts, which are also called conveyor belting. These conveyor belts are compatible with long distance conveying with high load, speed & impact. These conveyor belt find usage in diverse industries for material handling applications.
Conveyor belts type include
- Anti-split conveyor belts
- Anti-abrasion conveyor belts
- Common conveyor belts
- Acid-alkali resistant conveyor belts
- Heat-resistant conveyor belts
- Cold -resistant conveyor belts
- Oil resistant conveyor belts

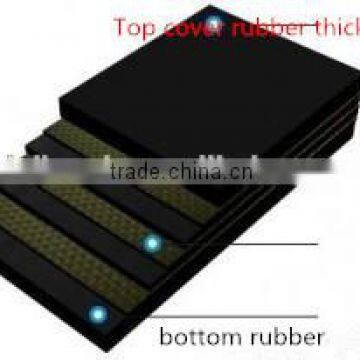

Conveyor belt specification and technical data sheet
Fabric type | Fabric structure | Fabric type | Fabric thickness | Cover rubber thickness | Width | Length | ||
warp | weft | Upper | Lower | |||||
EP | EP | EP | EP-100 | 0.75 | 1.5-8 | 0-4.5 | 400-2500 | <=300 |
EP-150 | 0.8 | |||||||
EP-200 | 0.90 | 500-2500 | ||||||
EP-250 | 1.15 | |||||||
EP-300 | 1.25 | |||||||
EP-400 | 1.45 | 800-2500 | ||||||
EP-500 | 1.55 | |||||||
Fabric type | Fabric structure | Fabric type | Fabric thickness | Cover rubber thickness | Width | Length | ||
warp | weft | Upper | Lower | |||||
NN | NN | NN | NN-100 | 0.75 | 1.5-8 | 0-4.5 | 400-2500 | <=300 |
NN-150 | 0.8 | |||||||
NN-200 | 0.9 | 500-2500 | ||||||
NN-250 | 1.15 | |||||||
NN-300 | 1.25 | |||||||
NN-400 | 1.45 | 800-2500 | ||||||
NN-500 | 1.55 | |||||||
Our Company:
Standard :
We could offer belt with cover grade in accordance to International standard such as DIN 22102, RMA, AS 1332, SABS 1173/2000, IS 1891, BS 490, JIS K 6322, etc.
Application:
Testing:
Certification:
Established in 1999, Lixian Huadu Rubber Belts Co.,Ltd is a professional manufacturer specialized in research, development and production of rubber conveyor belts for 16 years.
With strong technology strength, advanced production technique and complete inspection equipments, our company manufactures qualified products up to national and international standards, such as DIN, AS, BS, JIS, SANS, RMA, etc.
Depending on the strict management system and consummate after-sales service system,
we provide our customers with high quality and low price conveyor belts, also a warm service.
We can supply:
1).general used conveyor belt
2).entire core flame retardant conveyor belt
3).heat/cold resistant conveyor belt
4).abrasion resistant conveyor belt
5).oil resistant conveyor belt
6).chemical resistant conveyor belt
7).polyester(EP) core conveyor belt
8).nylon(NN) core conveyor belt
9).corrugated sidewall conveyor belt
10).cotton canvas(CC) conveyor belt
11).circular/endless conveyor belt
12).chevron patterned conveyor belt
13)conveyor roller with bracket,head drum...
Samples can be customized according to buyer's requirements and free samples can be sent for evaluations.
Any inquiry of high Incline conveyor belt for slant angle conveying bulk materials, please feel free to contact us.
Inquiry list | |
Belt width |
|
Fabric type of carcass |
|
Number of ply |
|
Belt thickness (mm) |
|
Cover rubber grade (Mpa) |
|
Application of belt |
|
Material to be transported |
|
Quantity needed (m) |
|
WELCOM TO INQUIRY US.
