XJ650 Truck-mounted workover rig

Standard Export Package

Specifications

XJ650 Workover Rig
1.Convenient for installation, operation and maintenance
2.Reasonable layout
3.Rod hanger is available

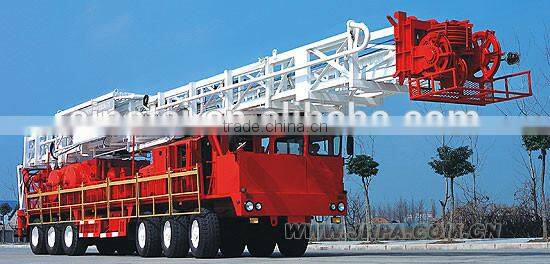

XJ650  Truck-mounted Workover Rig

Product Explanation:

1.XJ650 workover rig, with 1470kN of max. static hook load, is the largest self-propelled workover equipment with single engine, mainly used for medium & deep well workover , oil testing, fishing and pump check operations.

2.It is equipped with a lifting system and a rotary operating system.

3. It is widely applied in many fields. It can be used for lateral drilling and shallow well drilling operation if equipped with a rotary table and relevant parts.

4. Reasonable layout, compact structure, easy transportation, convenient operation and maintenance.

Product Features:

1. 12×8 self-propelled chassis.
2. A hydromatic brake is often used, and “Eaton” water-cooled disc brake or air tong brake is also available.
3. The rotary system is driven by a two-shaft transfer case via a chain of drawworks, or a three-shaft transfer case via a drive line.
4. 5 forward 5 reverse speeds rotary drives equipped with torque release device.
5. Can be used for shallow well drilling operation if equipped with relevant parts.
6. Rod hanger is available.

Main Parameters of workover rig

MODEL	XJ650(120t)
Nominal service depth (ft)(27/8″EUE tubing)	28000
Nominal workover depth (ft)(27/8″DP)	23000
Drilling depth (ft)(41/2″DP)	8200
Max. hook load (lbf)	350000
Rated hook load (lbf)	270000
Engine model	C18
Engine power (hp)	630
Hydraulic transmission box model	S6610HR
Transmission type	Hydraulic +
Effective height of mast (ft)	115
Traveling system	5×4
Drilling line diameter (in)	1 1/8
Hook speed (ft/s)	0.66~4.3, 0.66~4.6
Chassis model/Drive ways	XD60/12×8
Approaching/departure angle	26°/18°
Min. ground clearance (in)	12
Max. gradient ability (%)	26%
Min. turning diameter (ft)	125
Rotary table model	ZP175/ZP205
Traveling block model	YG160
Swivel model	SL160
Overall moving dimension (ft)	67×10×15
Main unit mass (lb)	143000
